Radiator Cooling Fan Motor Relay
Radiator Cooling Fan Motor Relay
LO Speed Rad Fan Replay Connector, Power Distribution Center:

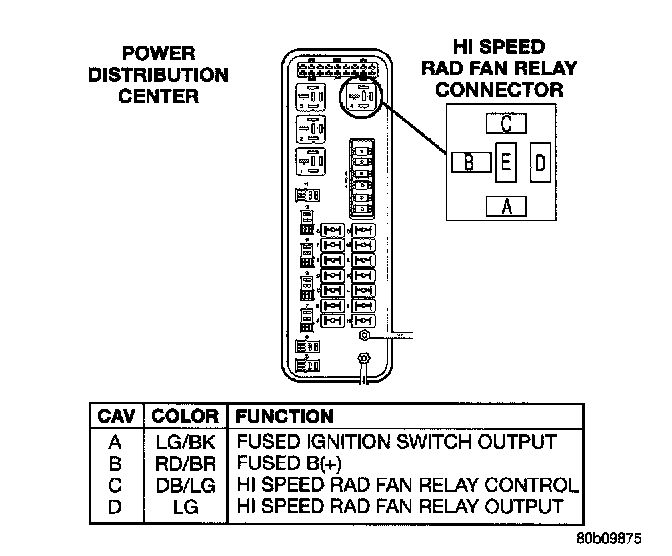

Power Distribution Center, HI Speed Rad Fan Relay Connector:
