Home
>>
Chrysler
>>
1999
>>
Concorde V6-2.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>

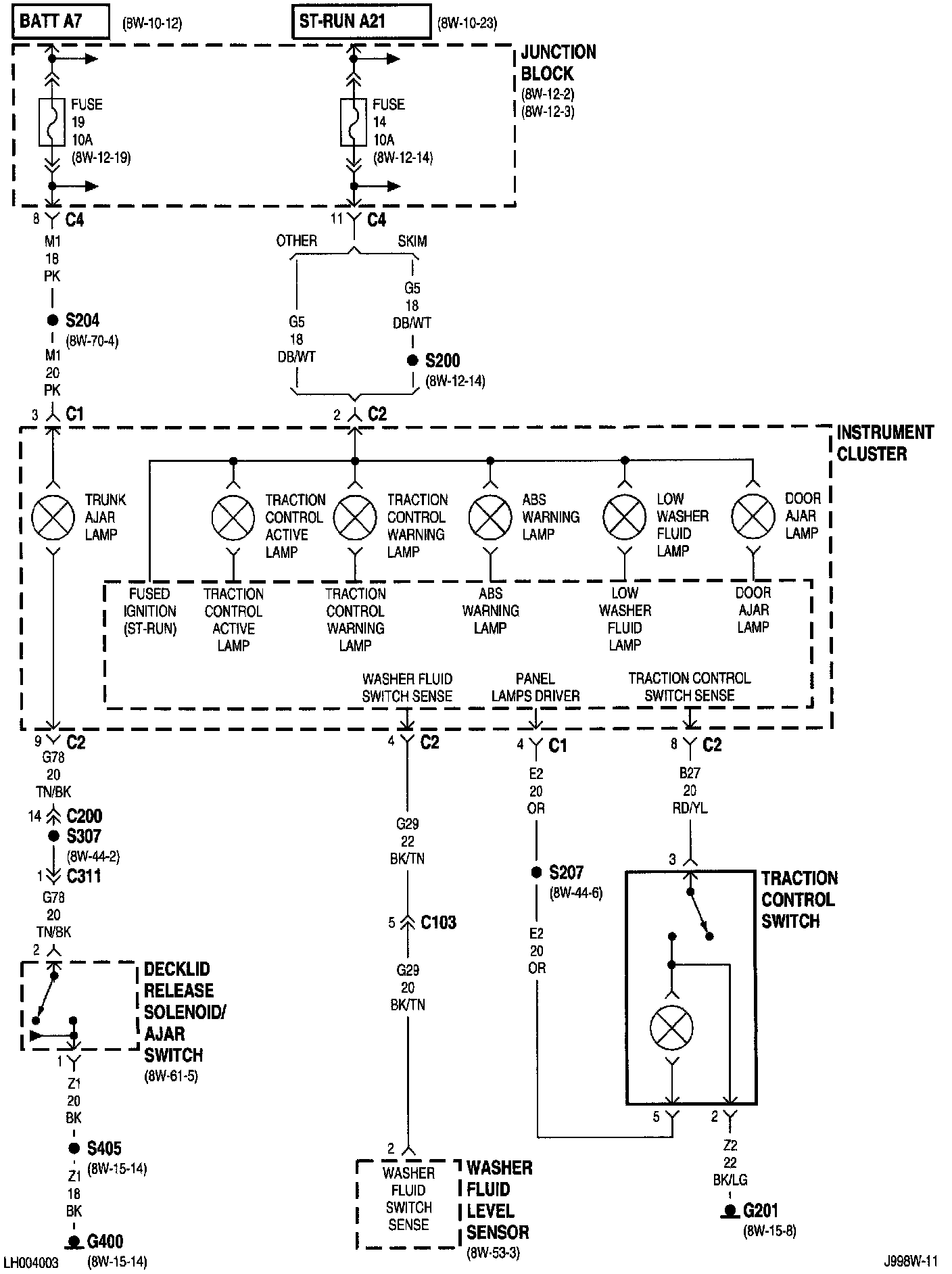

Door/Trunk Ajar Indicator/Lamp
Door/Trunk Ajar Indicator/Lamp
8w-40-3:
