Home >> Chrysler >> 1999 >> Concorde V6-2.7L VIN R >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Computers and Control Systems >> Body Control Module >> Schematic Diagrams >> Chime Warning System

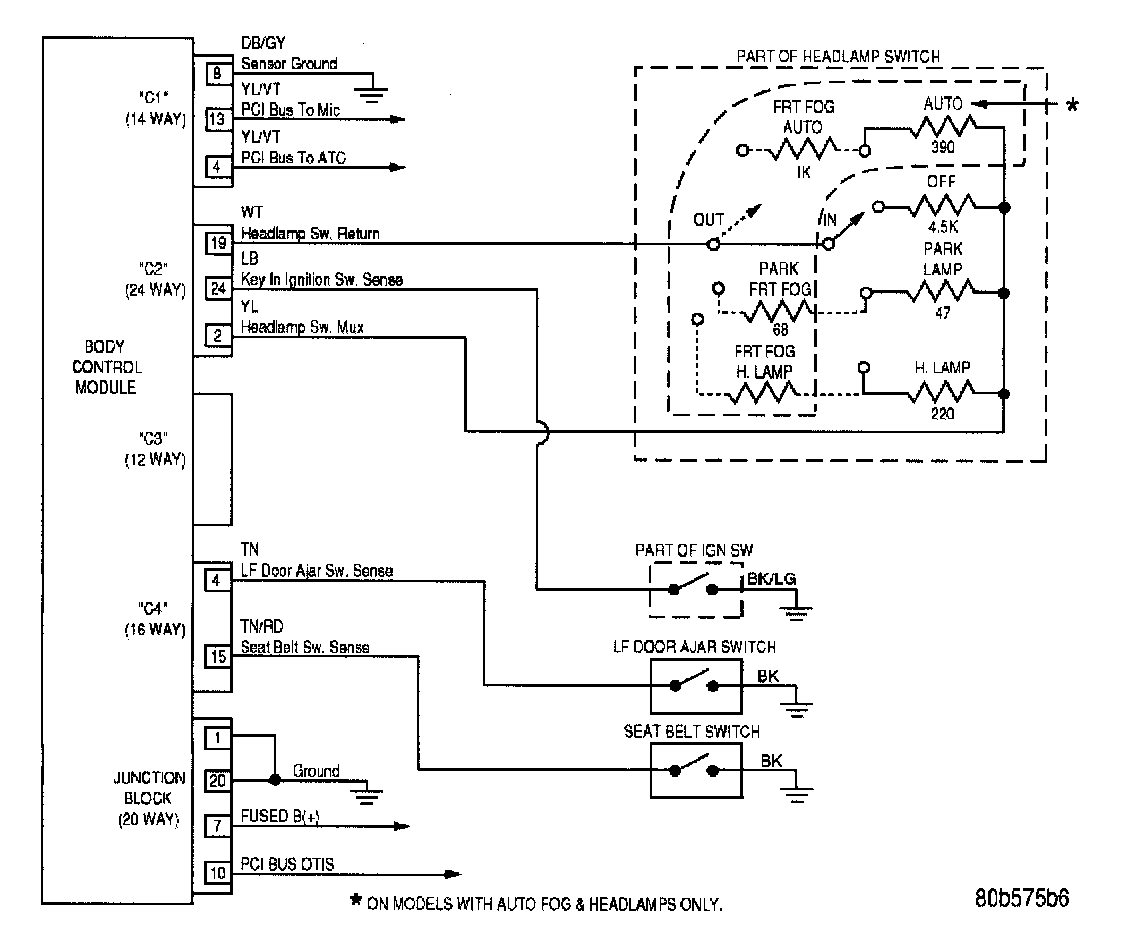

Chime Warning System

Chime Warning System:
