Home >> Chrysler >> 1999 >> Concorde V6-2.7L VIN R >> Repair and Diagnosis >> Diagrams >> Splices >> Splice Index

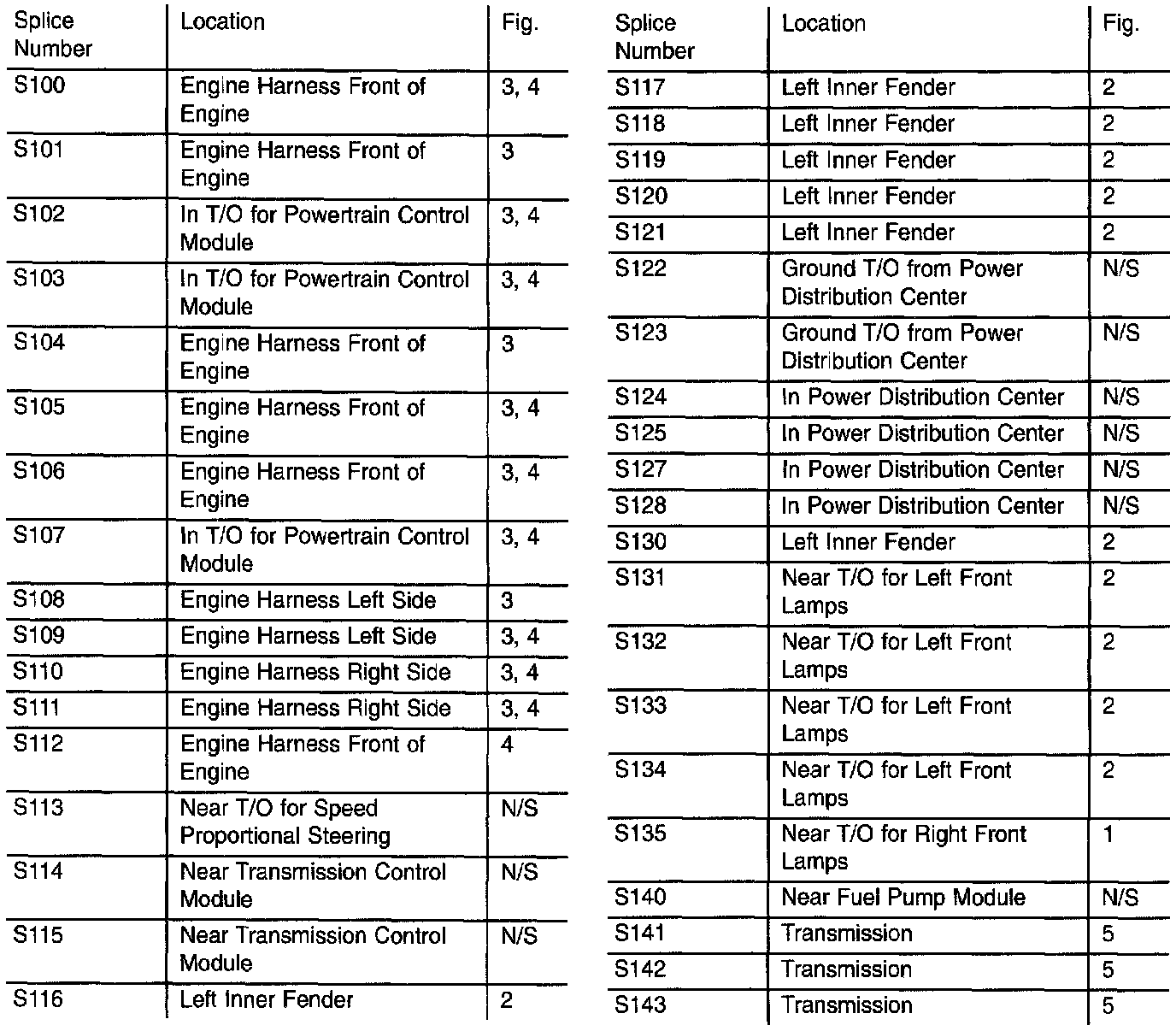

Splice Index

S100 - S143:



S144 - S412:
