Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chrysler
>>
1999
>>
Concorde V6-2.7L VIN R
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
No Trouble Code (NTC) Tests
>>
NTC-26A Checking the A/C System
NTC-26A Checking the A/C System
Related Image:

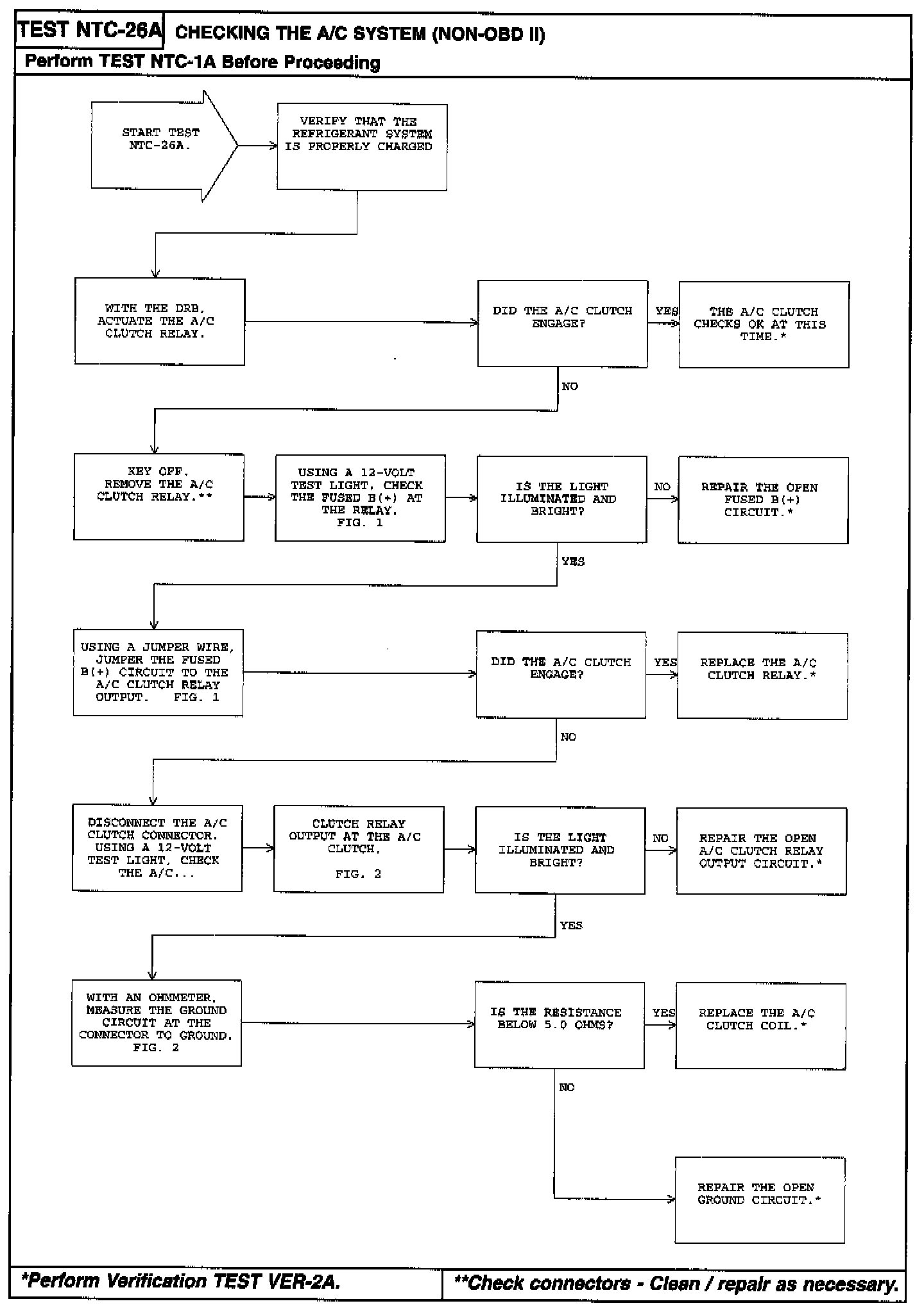

Diagnostic Chart:
