NTC-27A Checking Radiator Fan Operation

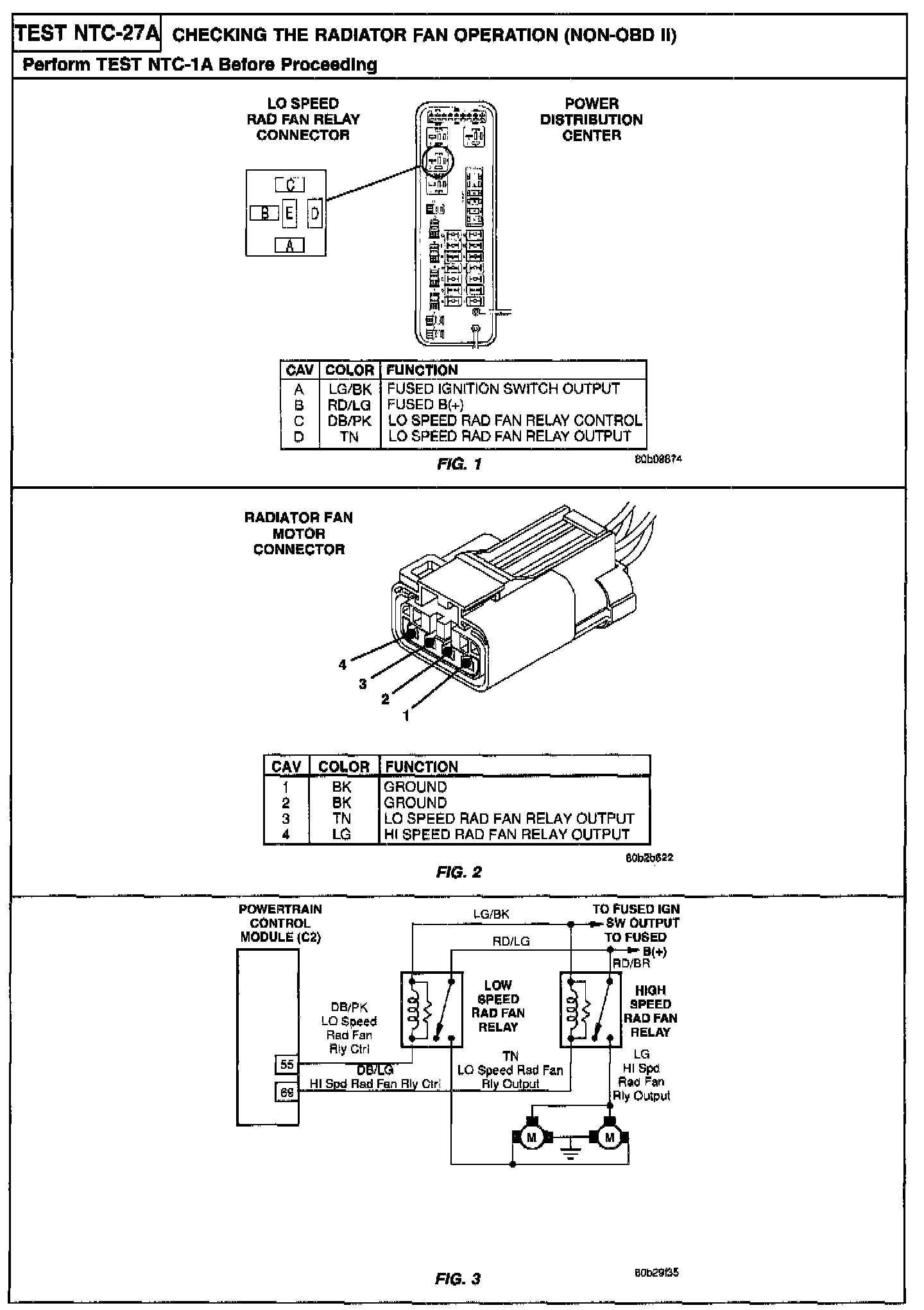

NTC-27A Checking Radiator Fan Operation
Related Image:
Diagnostic Chart:
Related Image:
Diagnostic Chart:
