Home >> Chrysler >> 1999 >> Concorde V6-2.7L VIN R >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No Trouble Code (NTC) Tests >> NTC-4A Checking the Engine Vacuum

NTC-4A Checking the Engine Vacuum

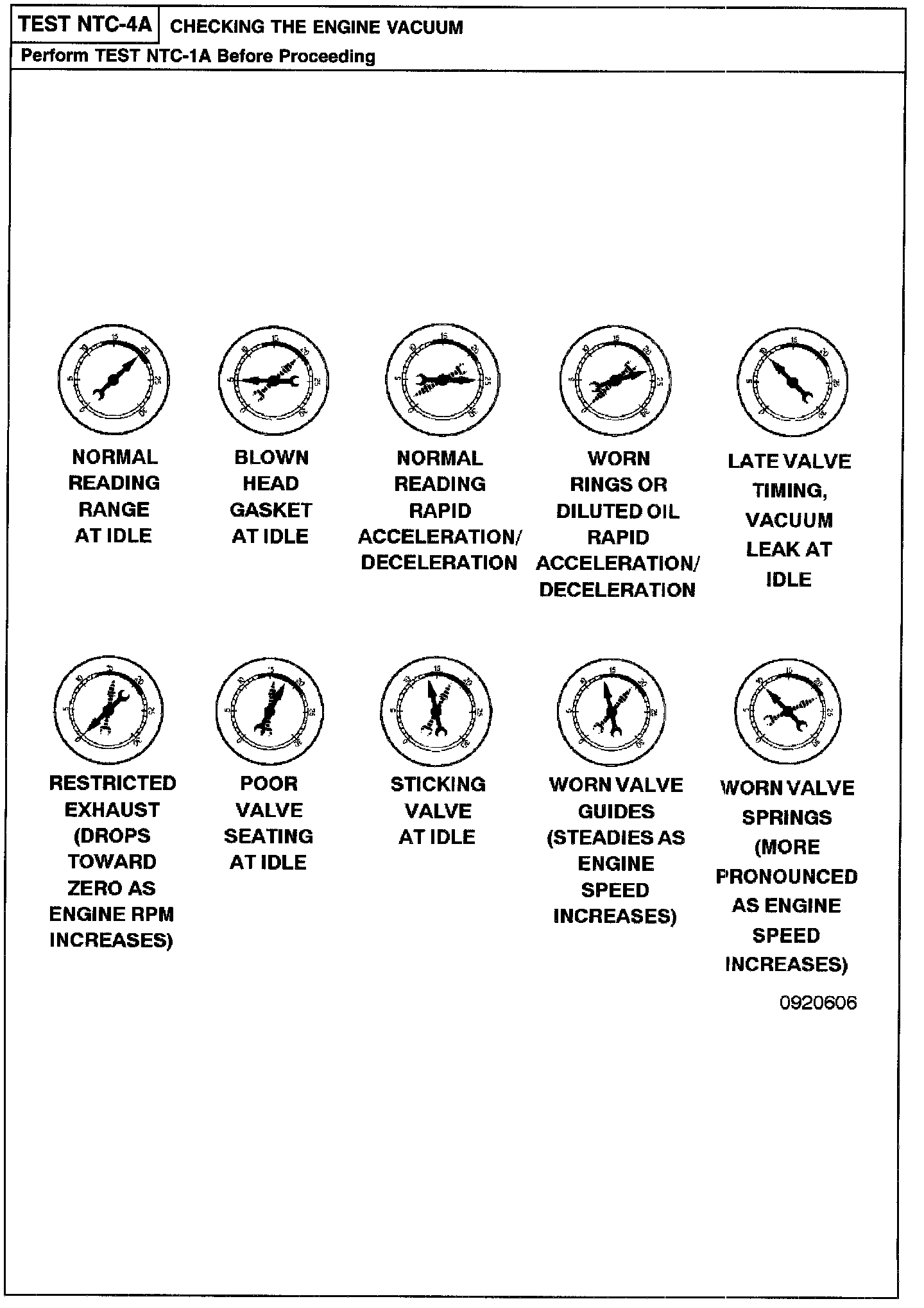

Related Image:

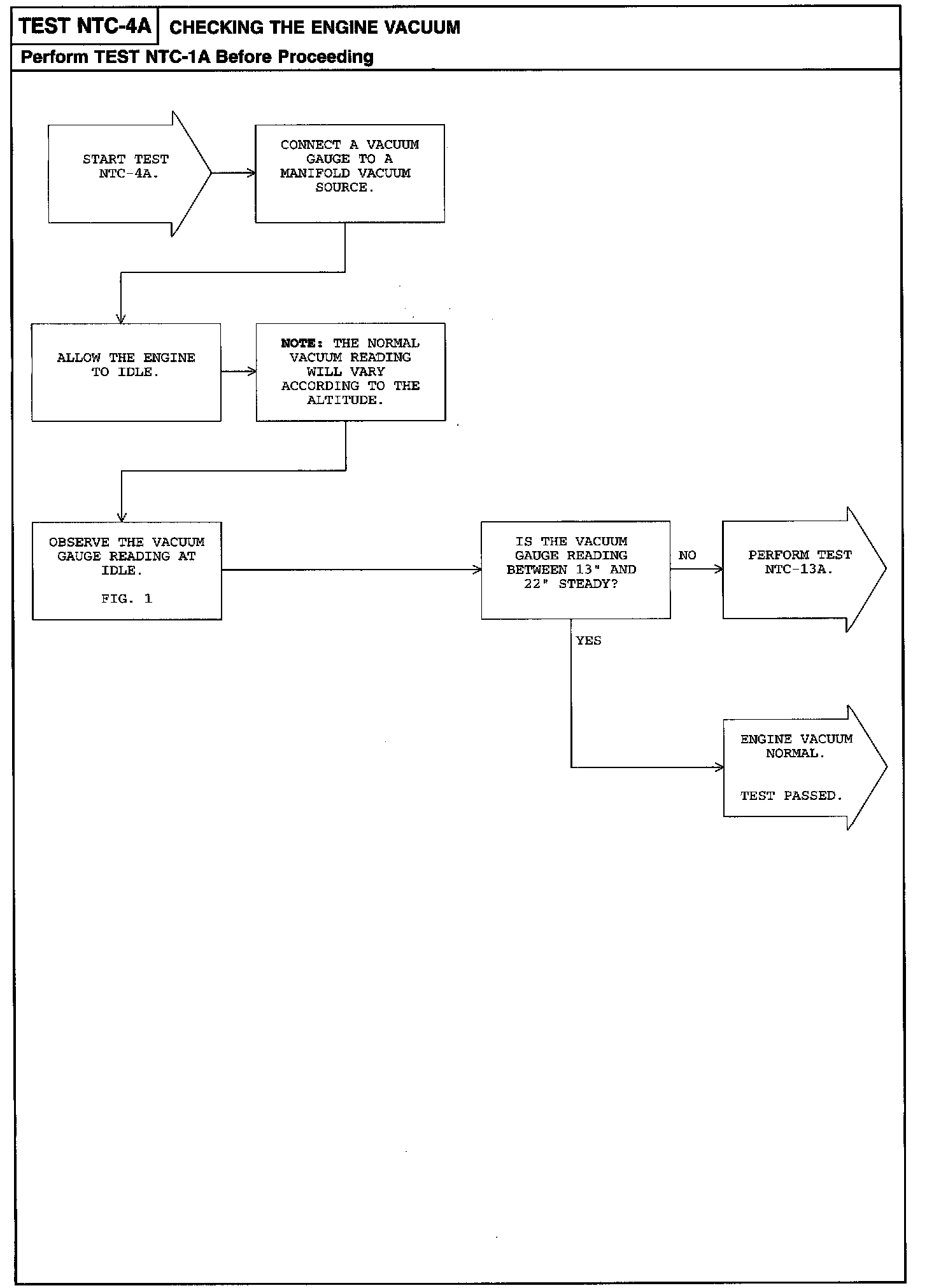

Diagnostic Chart:
