Compressor Clutch Relay
>>
Locations
>>
Connector Locations
Connector Locations

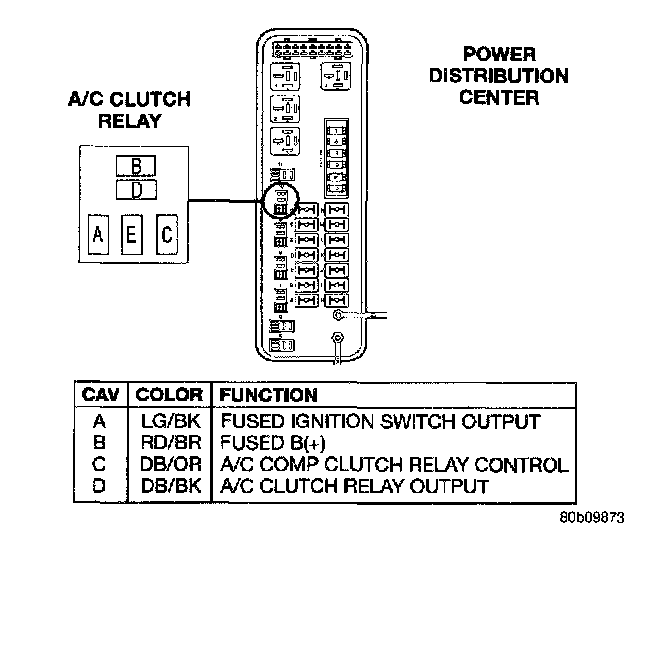

A/C Clutch Replay, Power Distribution Center:
8w-10-2 -- Power Distribution Center (PDC) Near The Battery:
8w-10-4:
