Concorde V6-3.2L VIN J
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
Variable Induction Control Valve
Variable Induction Control Valve
Manifold Tune Valve Solenoid Connector:

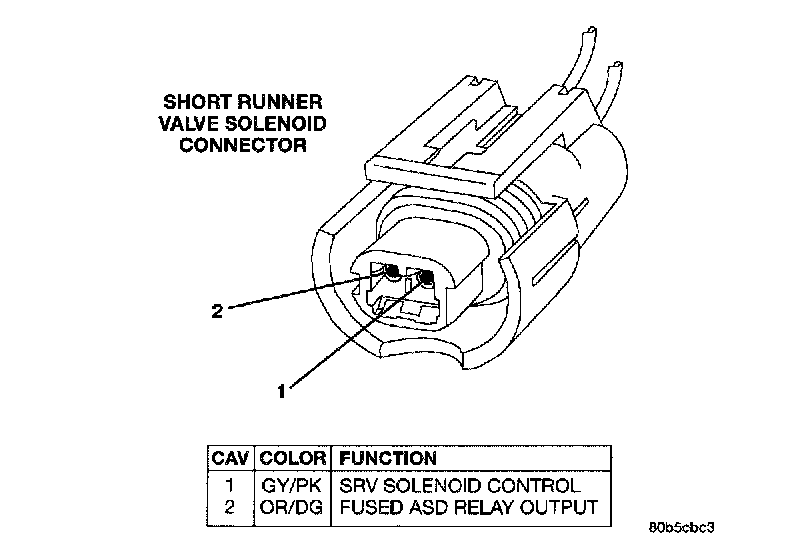

Short Runner Valve Solenoid Connector:
