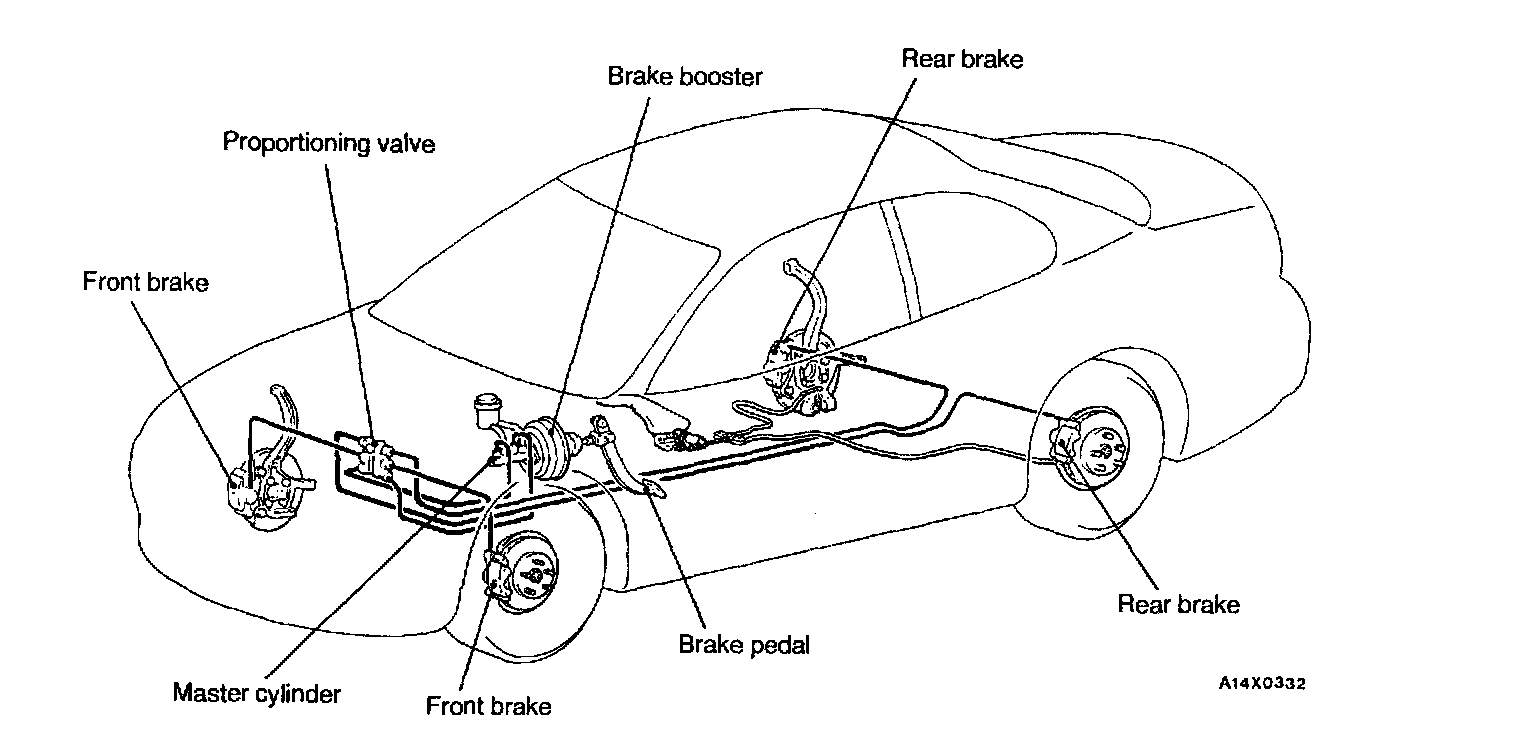

Brakes and Traction Control: Description and Operation

The brake system has high reliability and durability which maintains excellent braking performance. The main features are as follows.
- A dual type master cylinder is equipped on all models.
- Both a single type and a tandem type brake booster have been adopted.
- Disc brakes have been adopted as the front brakes. Floating caliper, single-piston and ventilated disc (M-R46V)
- Both disc brakes and drum brakes have been adopted as the rear brakes. Disc brake: floating caliper, single-piston and solid disc (M-R45S) and floating caliper, single piston and ventilated disc (M-R45V) Drum brake: leading-trailing type brakes
