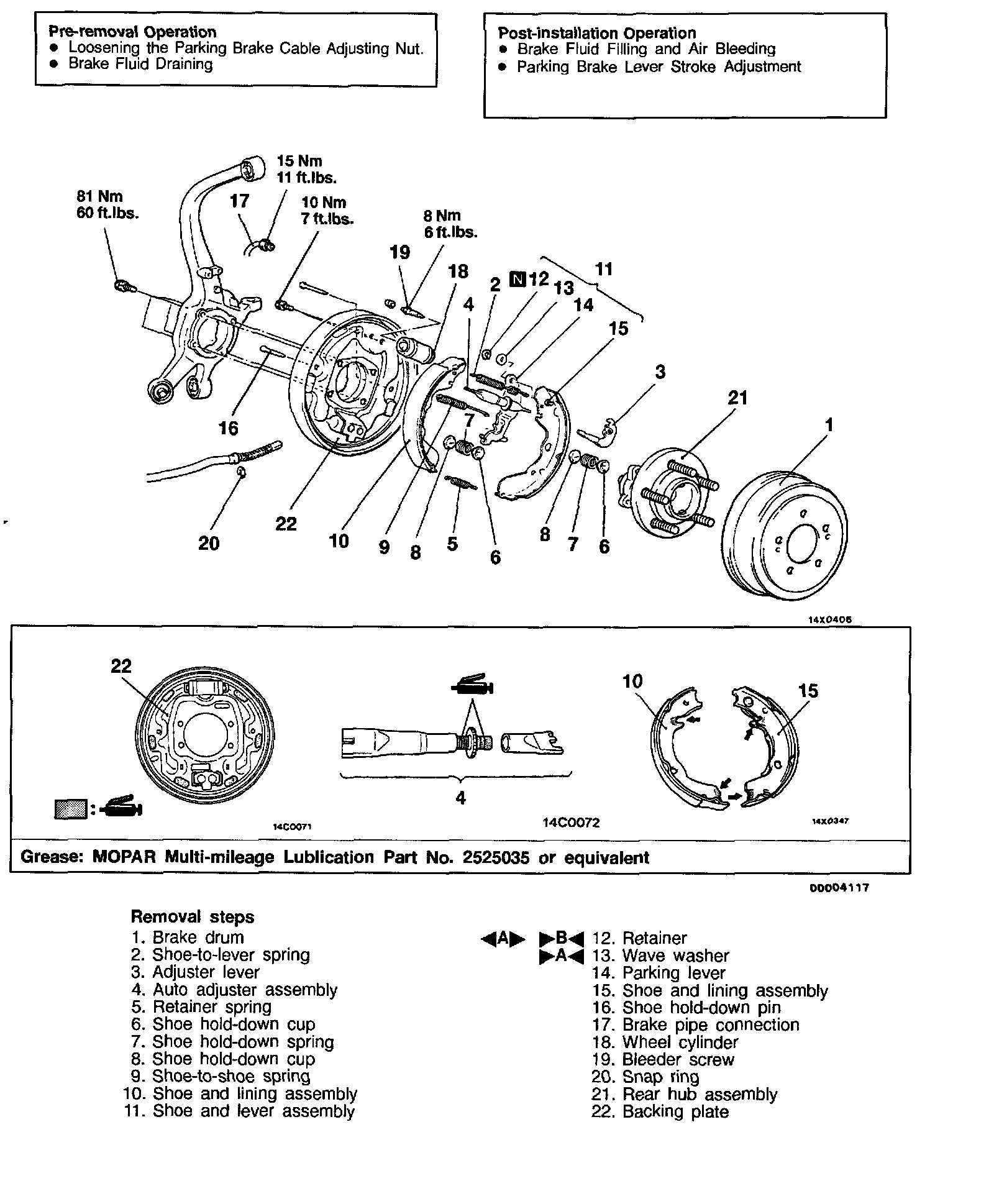

Drum Brake System: Service and Repair

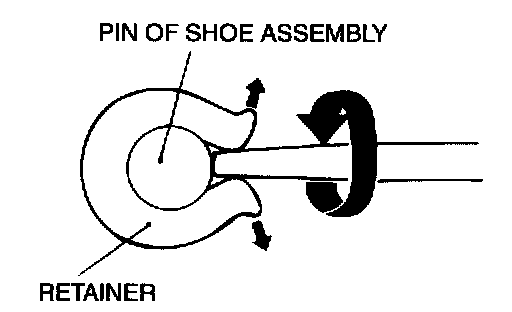

Use a flat-tipped screwdriver or the like to open up the retainer joint, and remove the retainer.

INSTALLATION

Installation Service Points

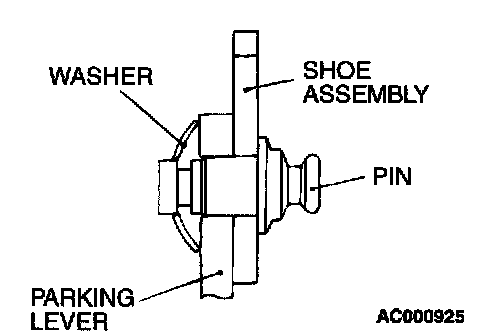

>A< Wave Washer Installation

Install the washer in the direction shown.

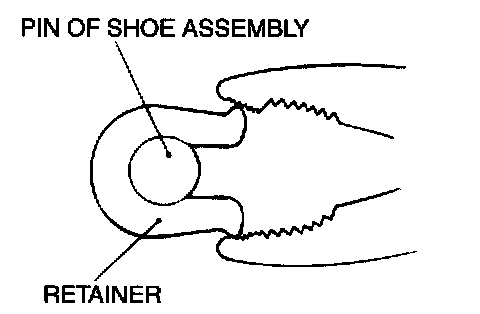

B< Retainer Installation

Use pliers or the like to install the retainer on the pin.
