Parking Brake System: Description and Operation

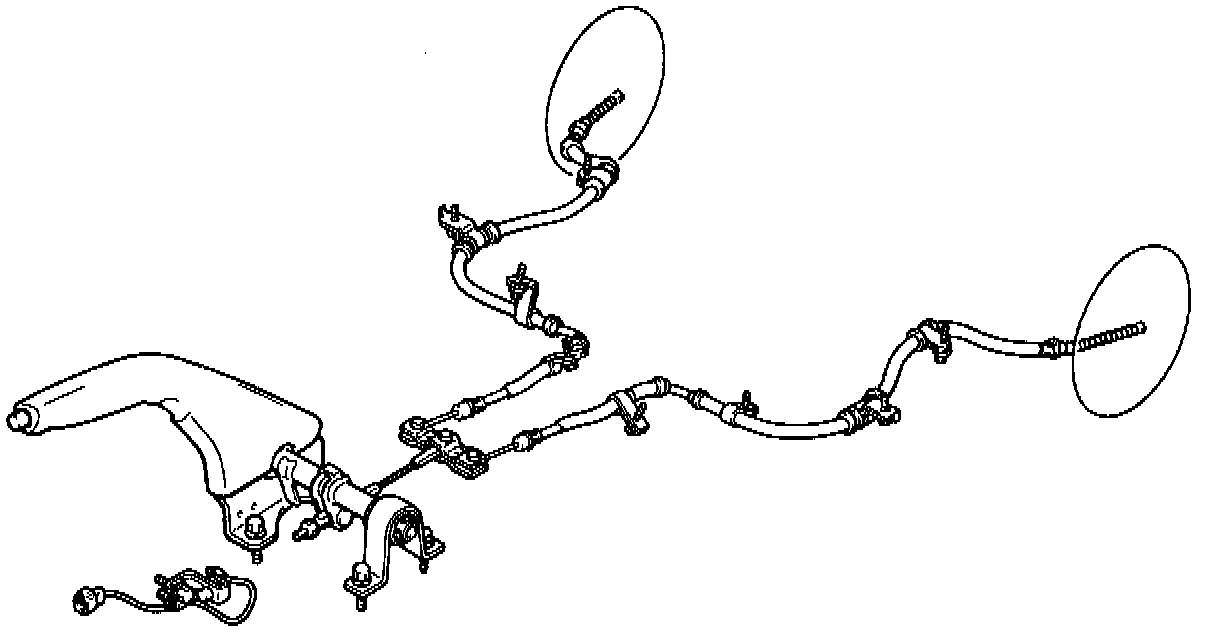

Parking Brake Construction Diagram:

The parking brake is of a mechanical rear-wheel acting, drum-in-disc type.
The operation method utilizes a parking brake lever which is in an offset position at the passenger's side.
