Fuse and Fusible Link Locations
>>

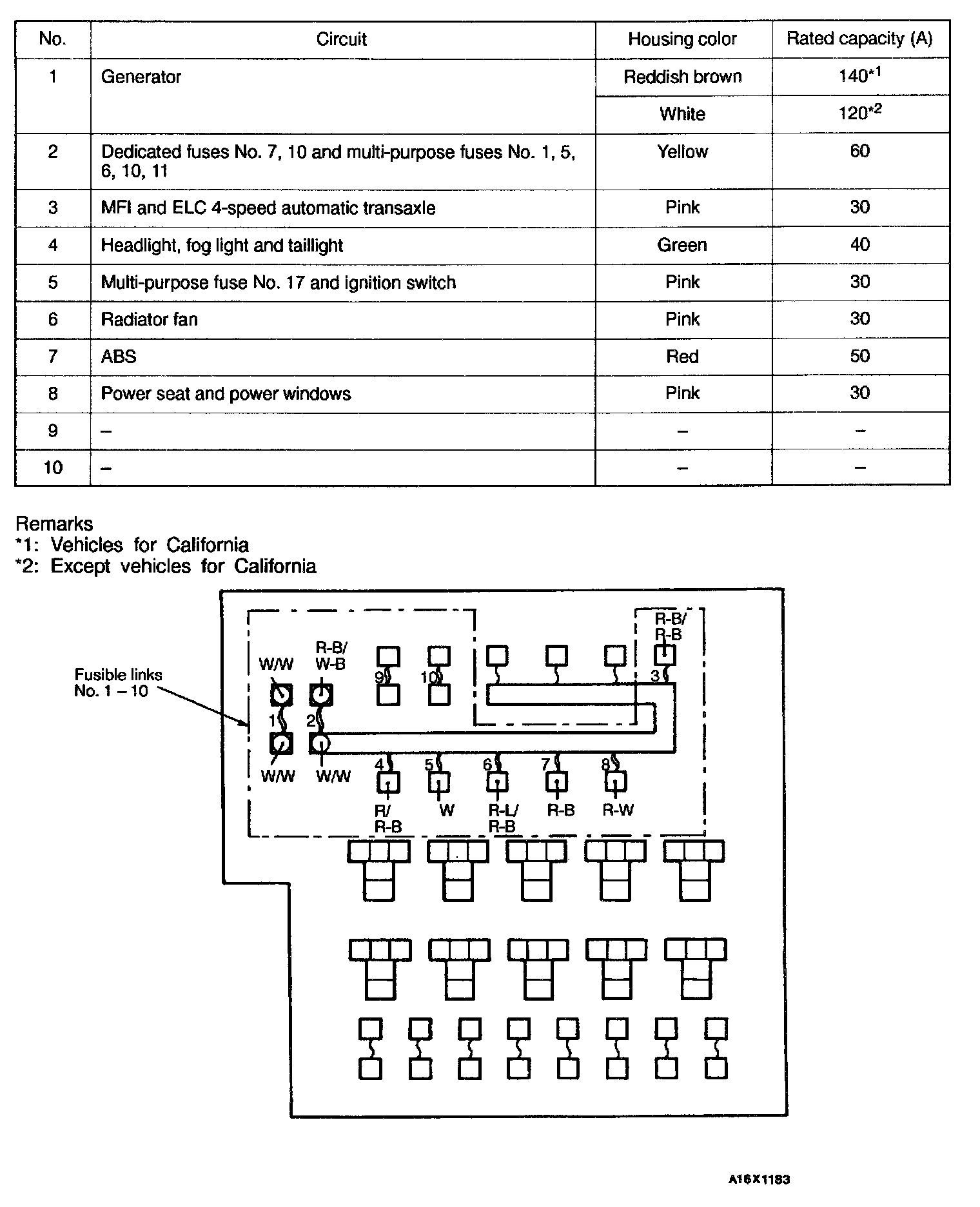

Fusible Link (Relay Box In Engine Compartment)
Fusible Link (Relay Box In Engine Compartment)

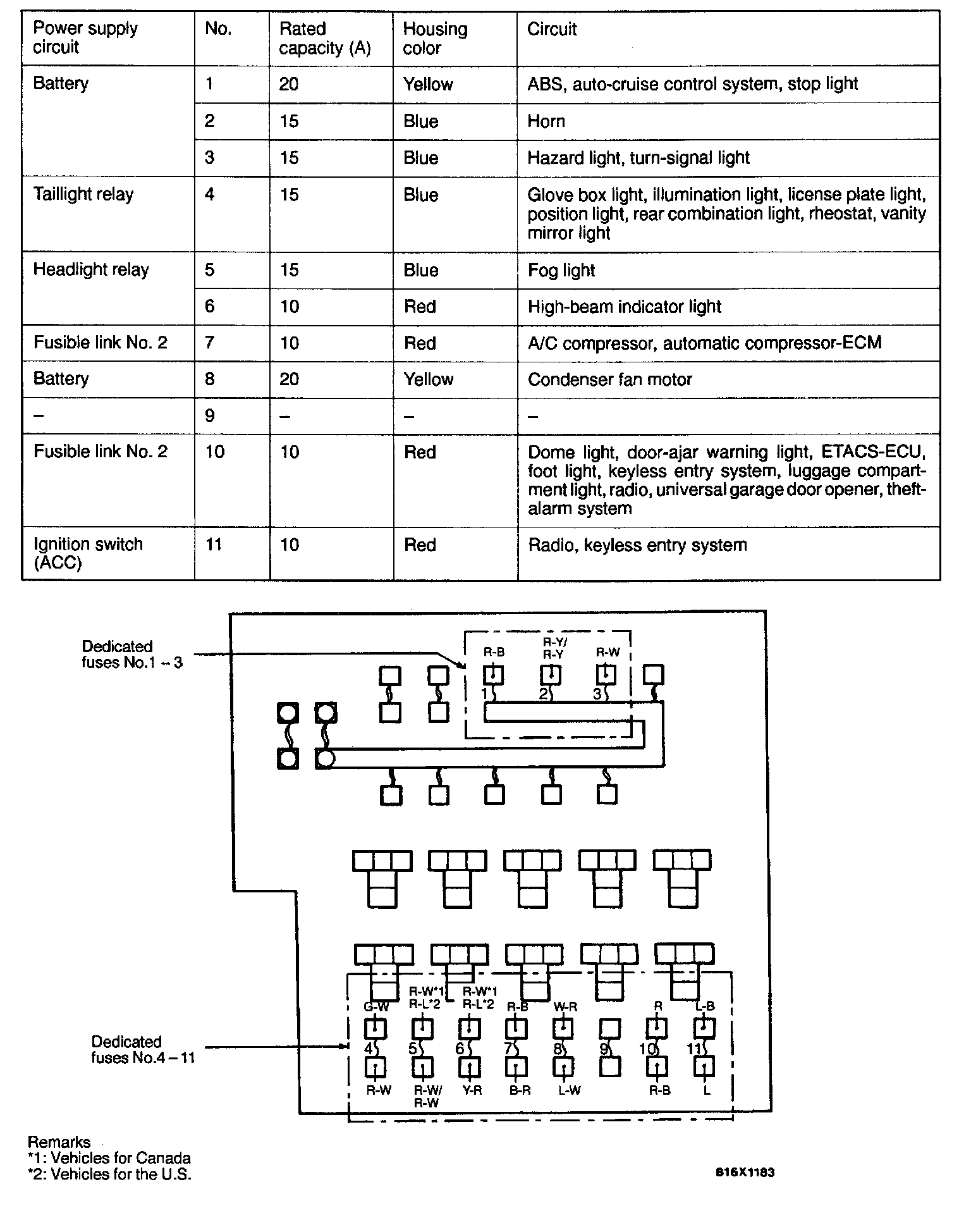

Relay Box In Engine Compartment:
Relay Box In Engine Compartment:

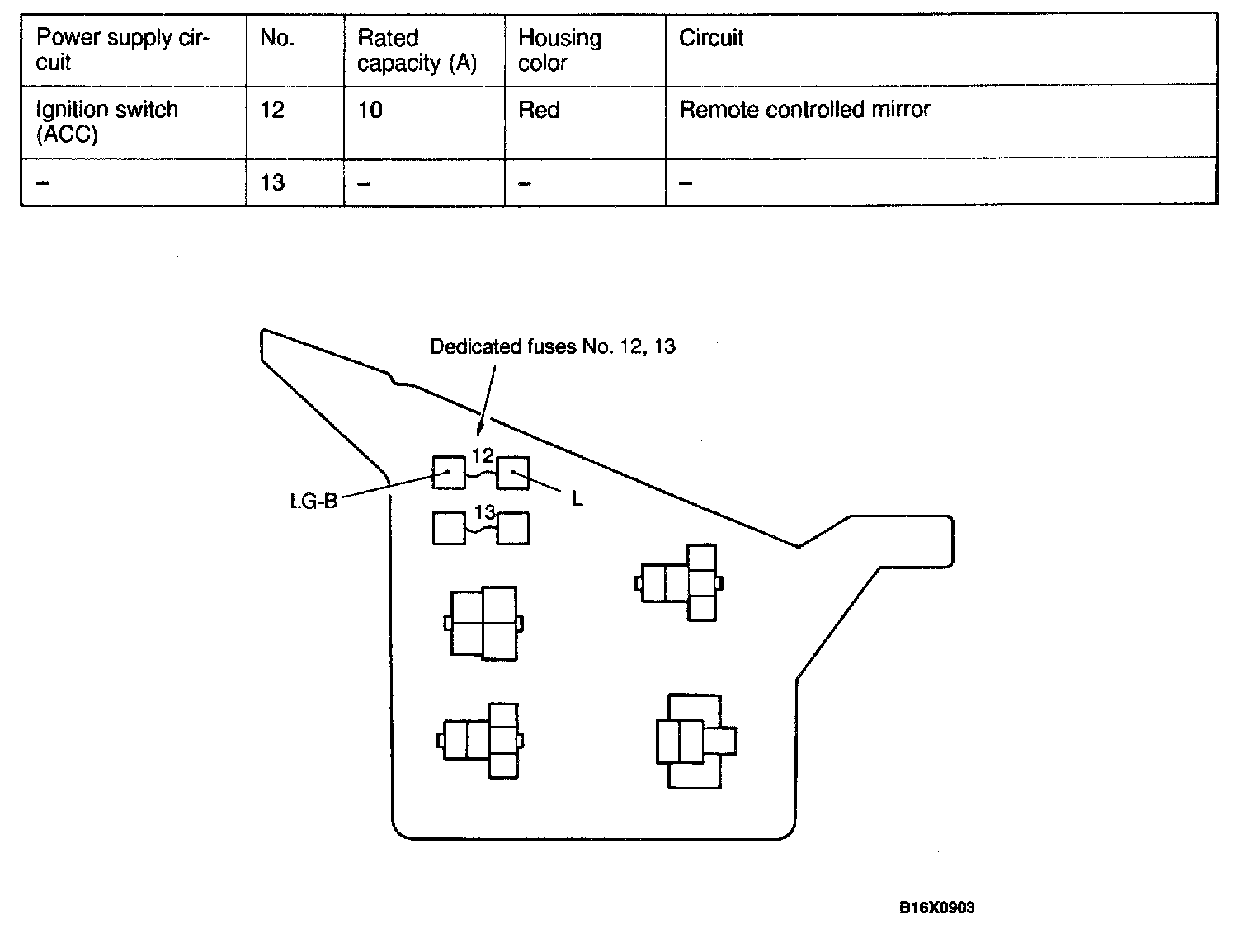

Interior Relay Box:

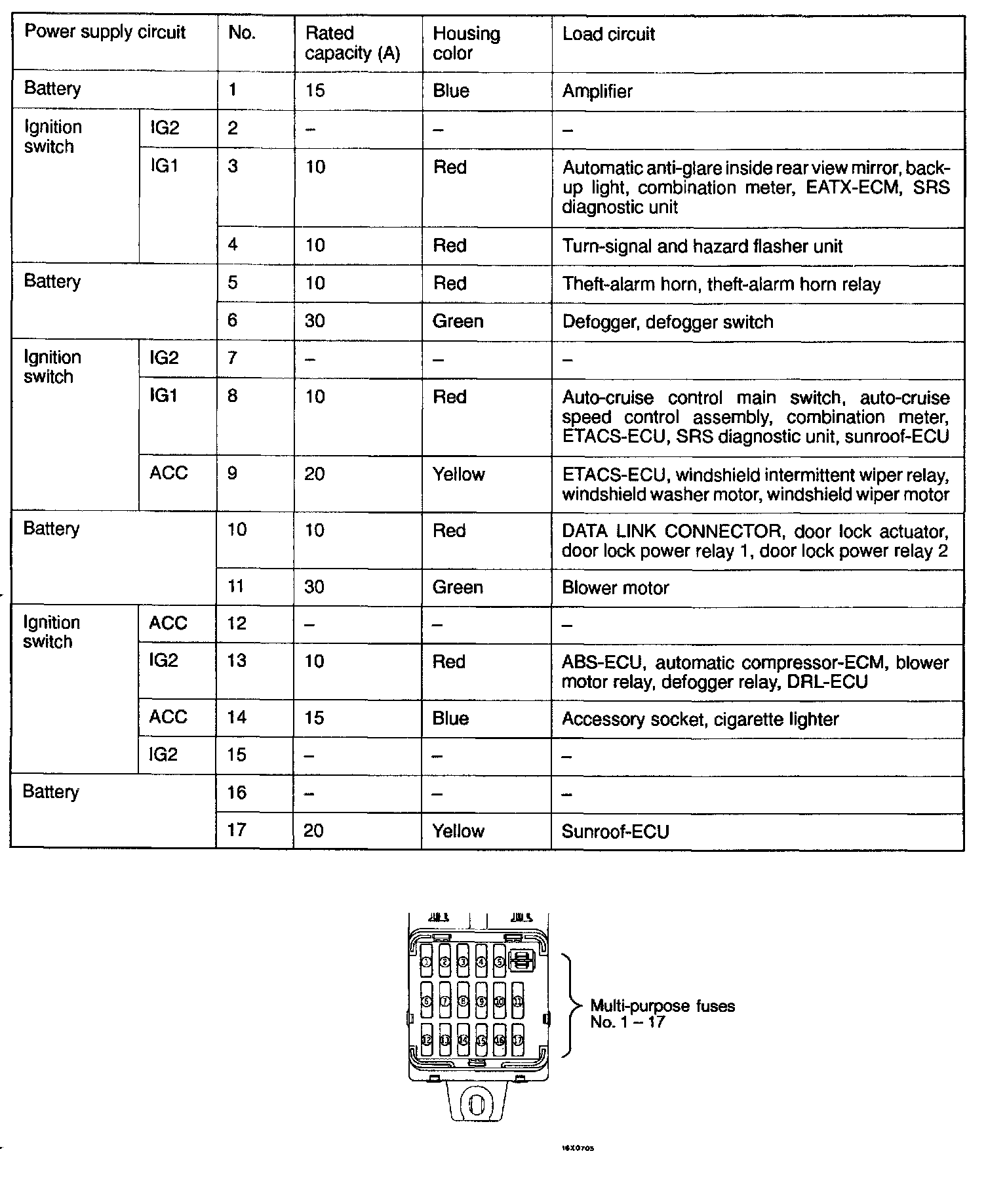

In Junction Block:
