Solenoid Locations

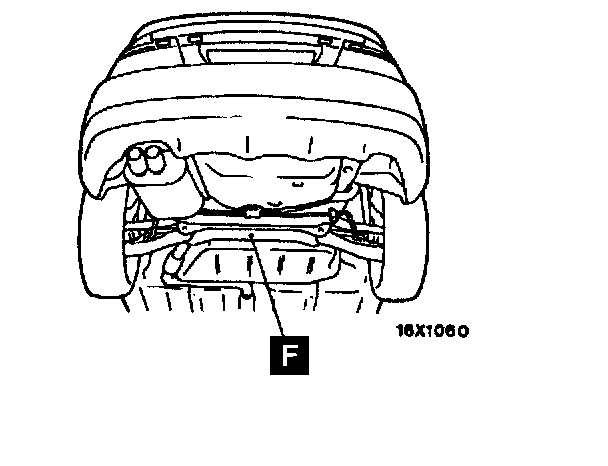

Solenoid And Solenoid Valve Overall Views:

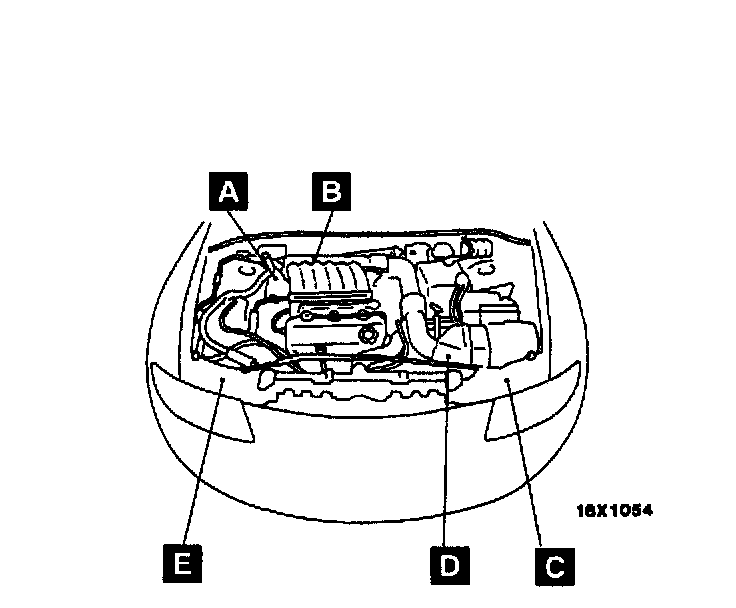

Solenoid And Solenoid Valve Overall Views:

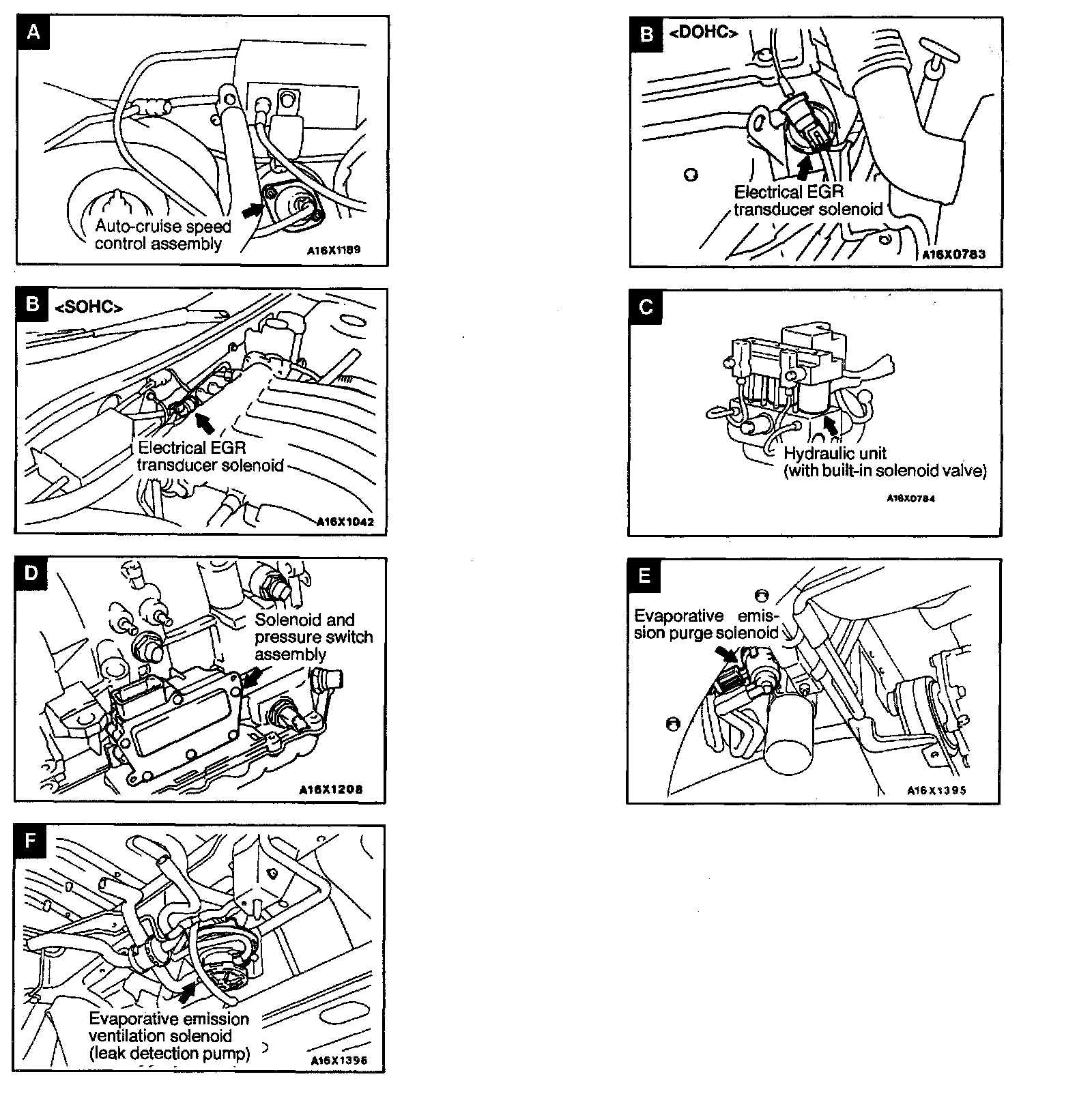

Solenoid And Solenoid Valve Views A - F:
Name Symbol
Auto-cruise Speed Control Assembly A
Electrical EGR Transducer Solenoid B
Evaporative Emission Purge Solenoid E
Evaporative Emission Ventilation Solenoid F
(leak detection pump)
Hydraulic Unit (With built-in
Solenoid Valve)
Solenoid And Pressure Switch
Assembly D
