C Connectors - Instrument Panel And Floor Console Harness
C Connectors - Instrument Panel And Floor Console Harness

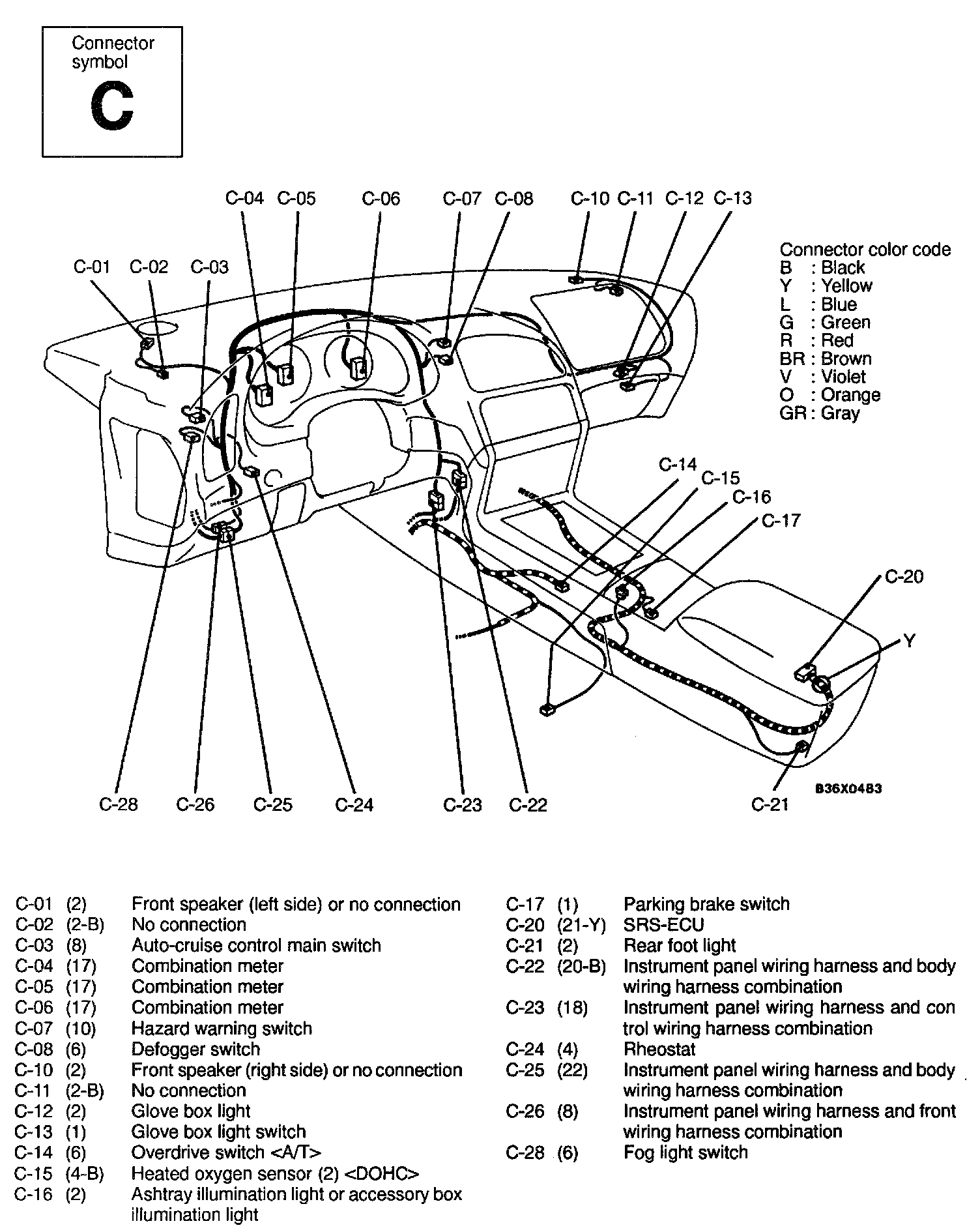

Instrument Panel And Floor Console - C Connector (01 (2) Thru 28 (6)):
