E Connectors - Interior Harness
E Connectors - Interior Harness

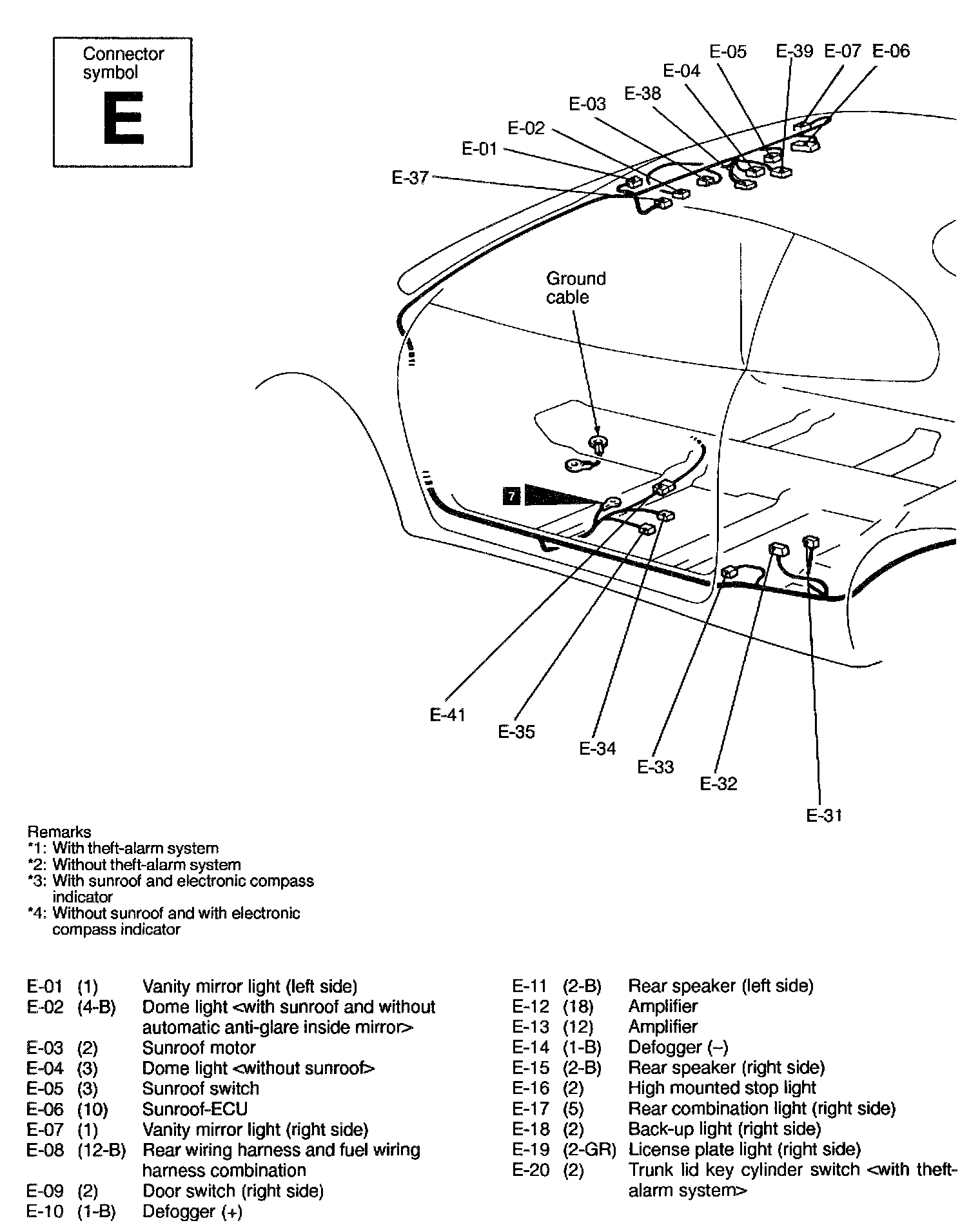

Interior - E Connector (01 (1) Thru 20 (2)):

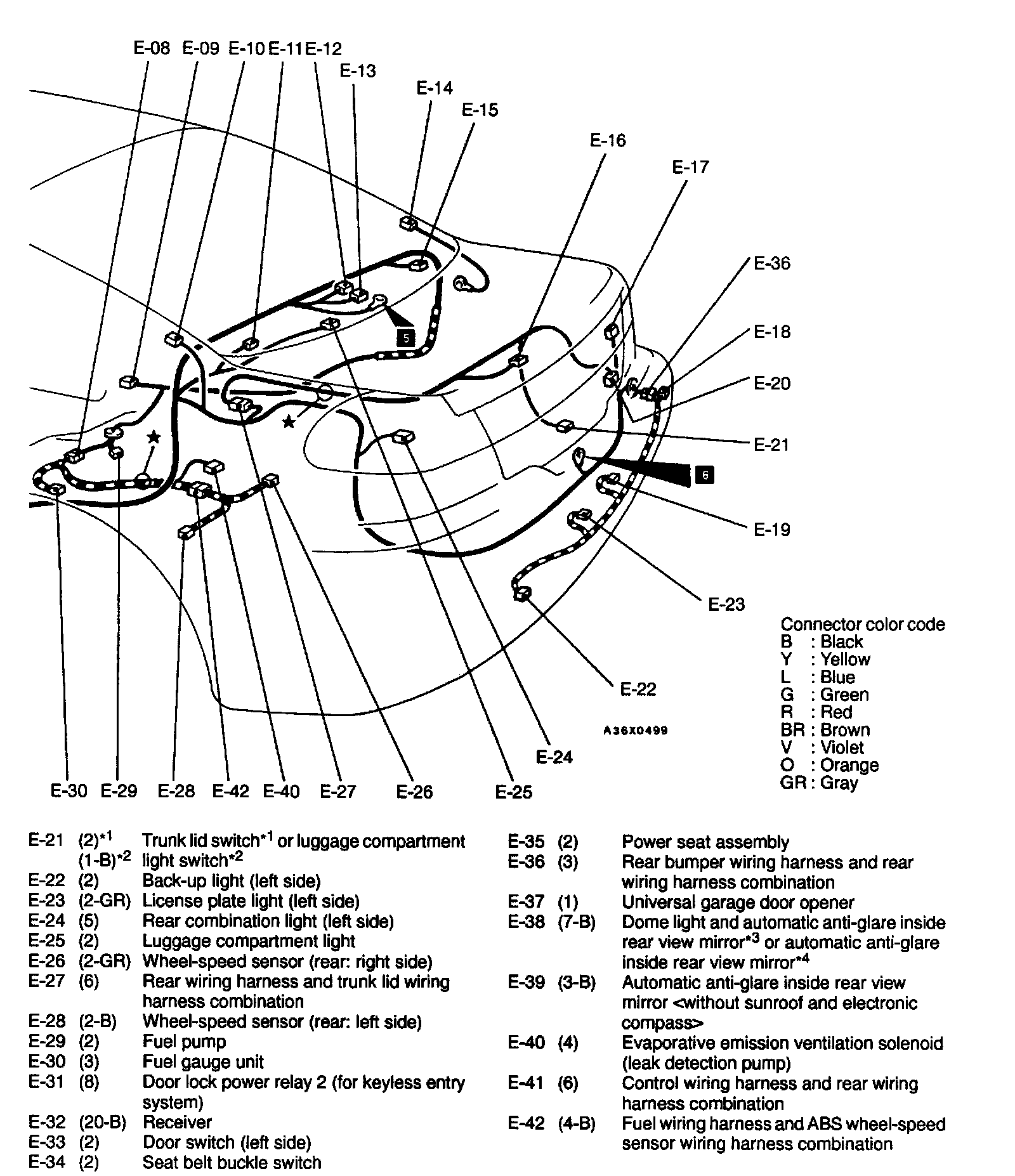

Interior - E Connector (21 (2), (1-B) Thru 42 (4-B)):
