Cooling System

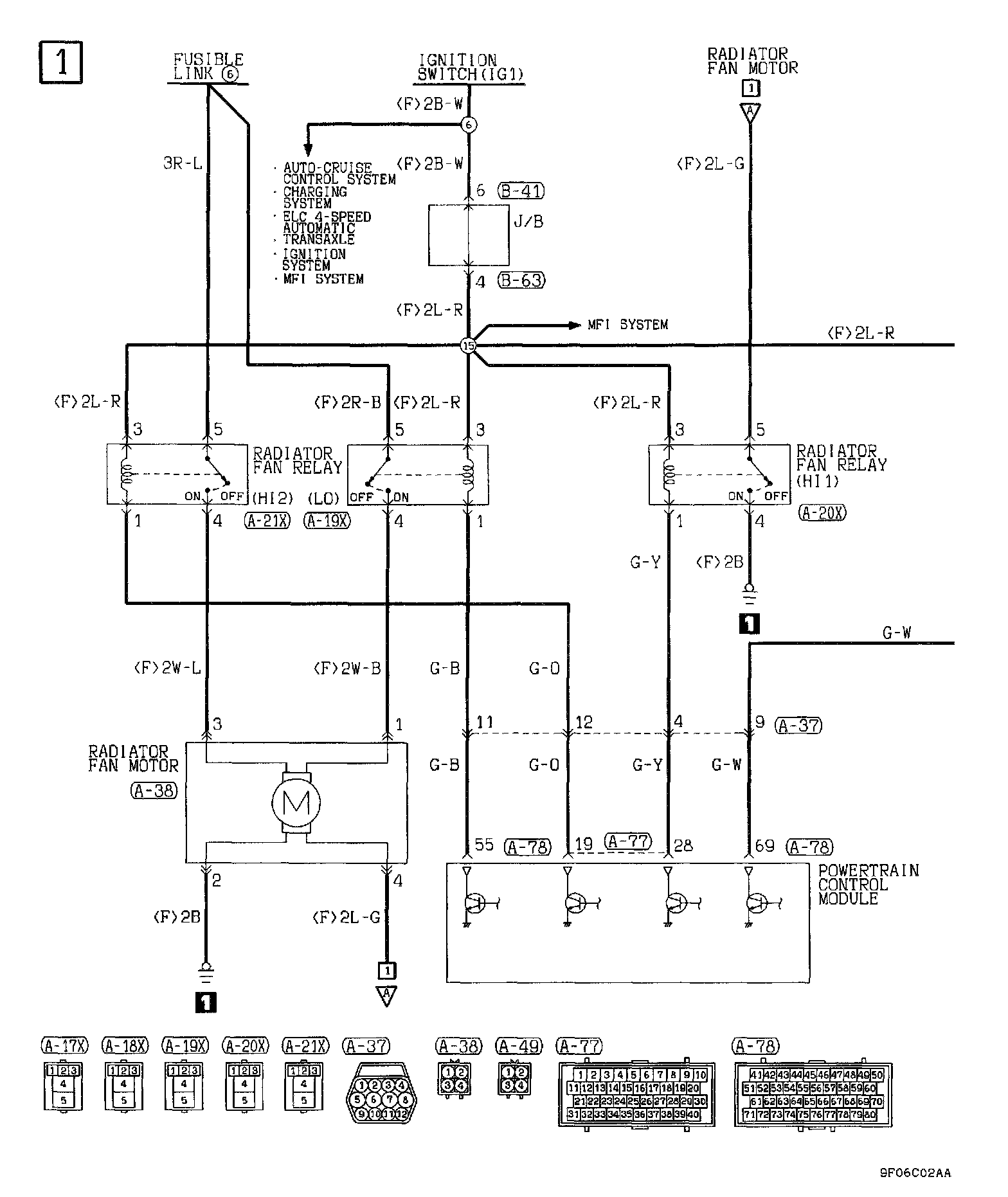

Cooling System (Part 1 Of 3):

J/B
Radiator Fan Relay (HI 1, HI 2, LO)
Radiator Fan Motor
Powertrain Control Module

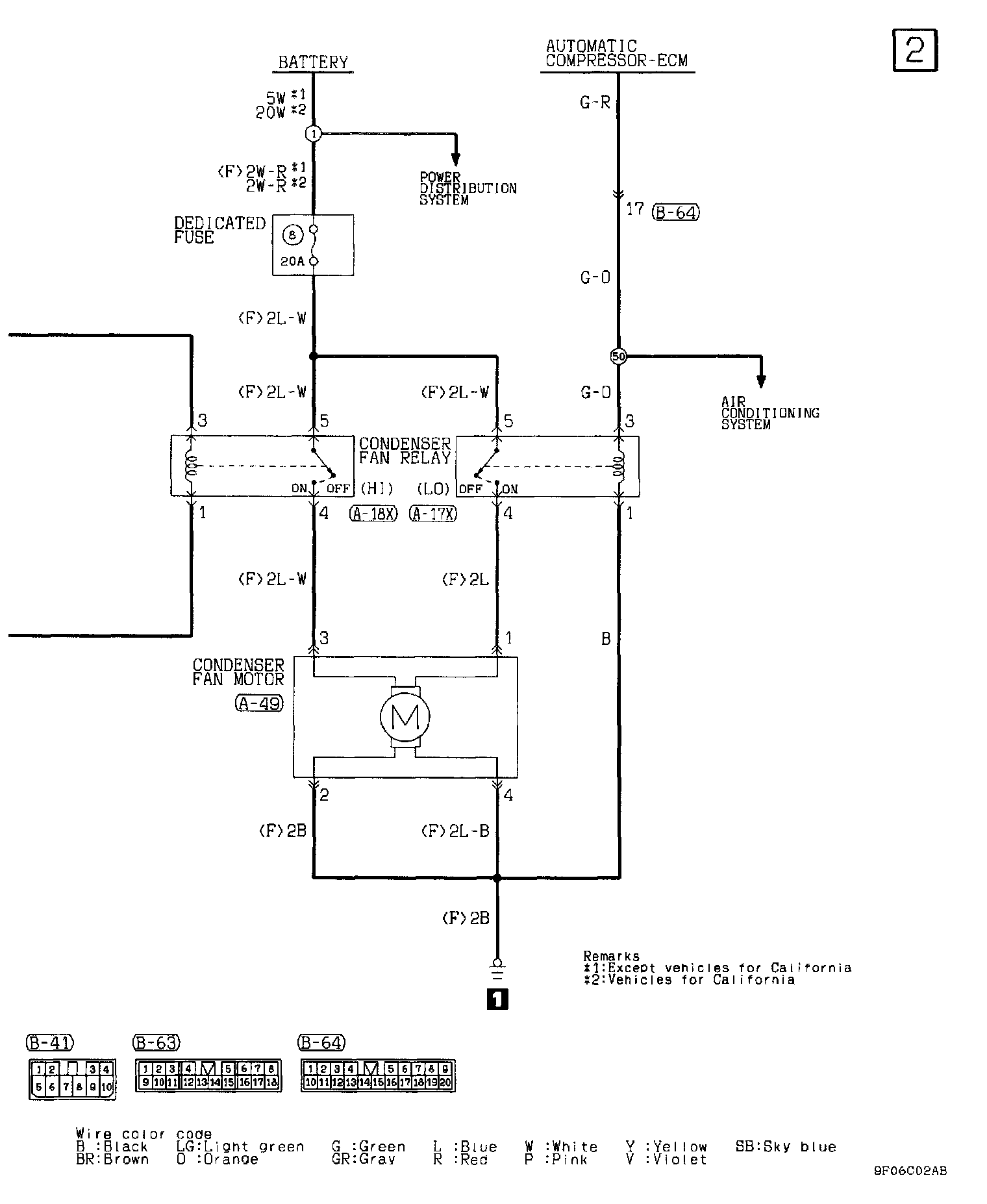

Cooling System (Part 2 Of 3):

Condenser Fan Relay (HI, LO)
Condenser Fan Motor
Dedicated Fuse

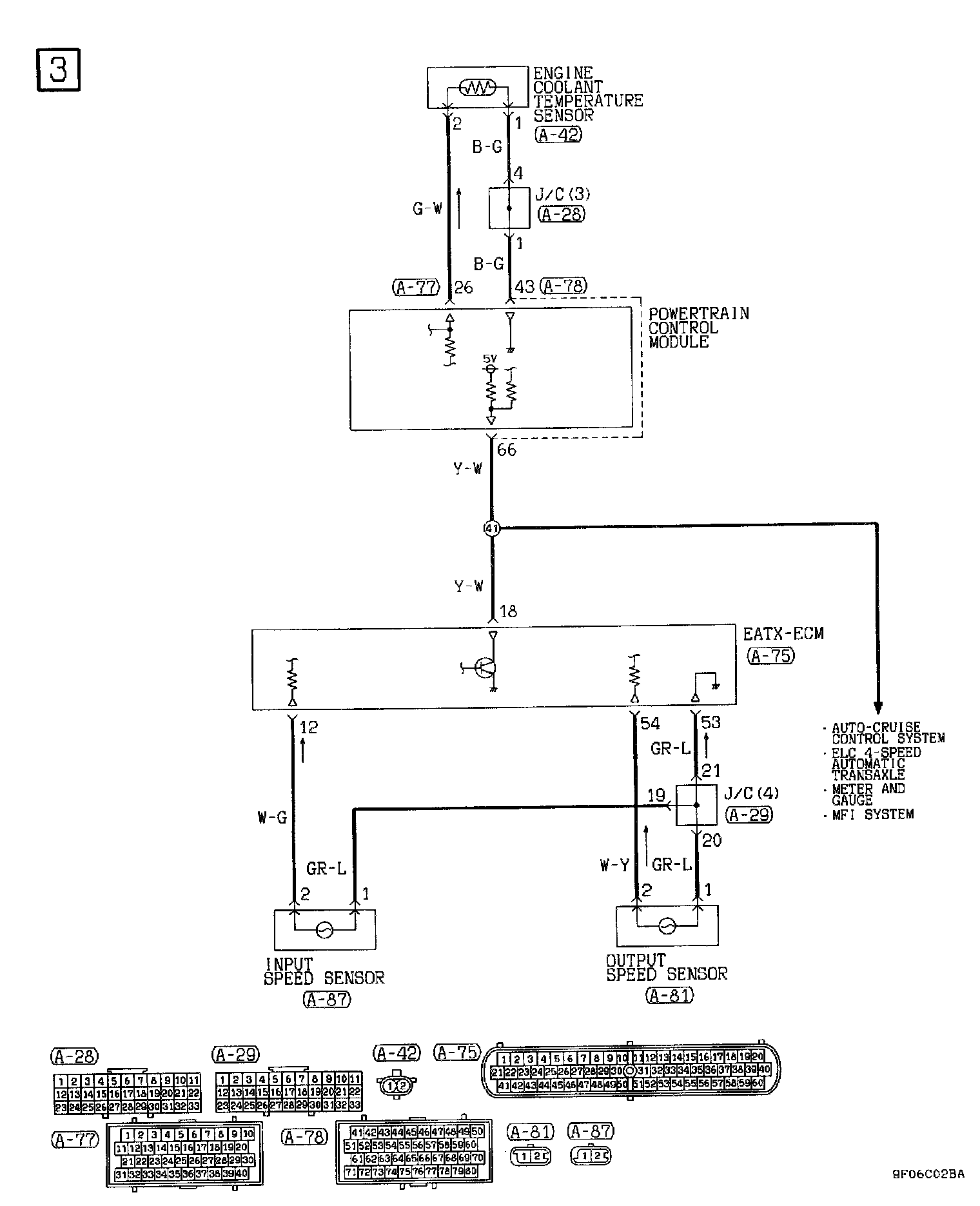

Cooling System (Part 3 Of 3):

Engine Coolant Temperature Sensor
EATX-ECM
Input Speed Sensor
J/C (3, 4)
Output Speed Sensor
Powertrain Control Module
