Heating and Air Conditioning

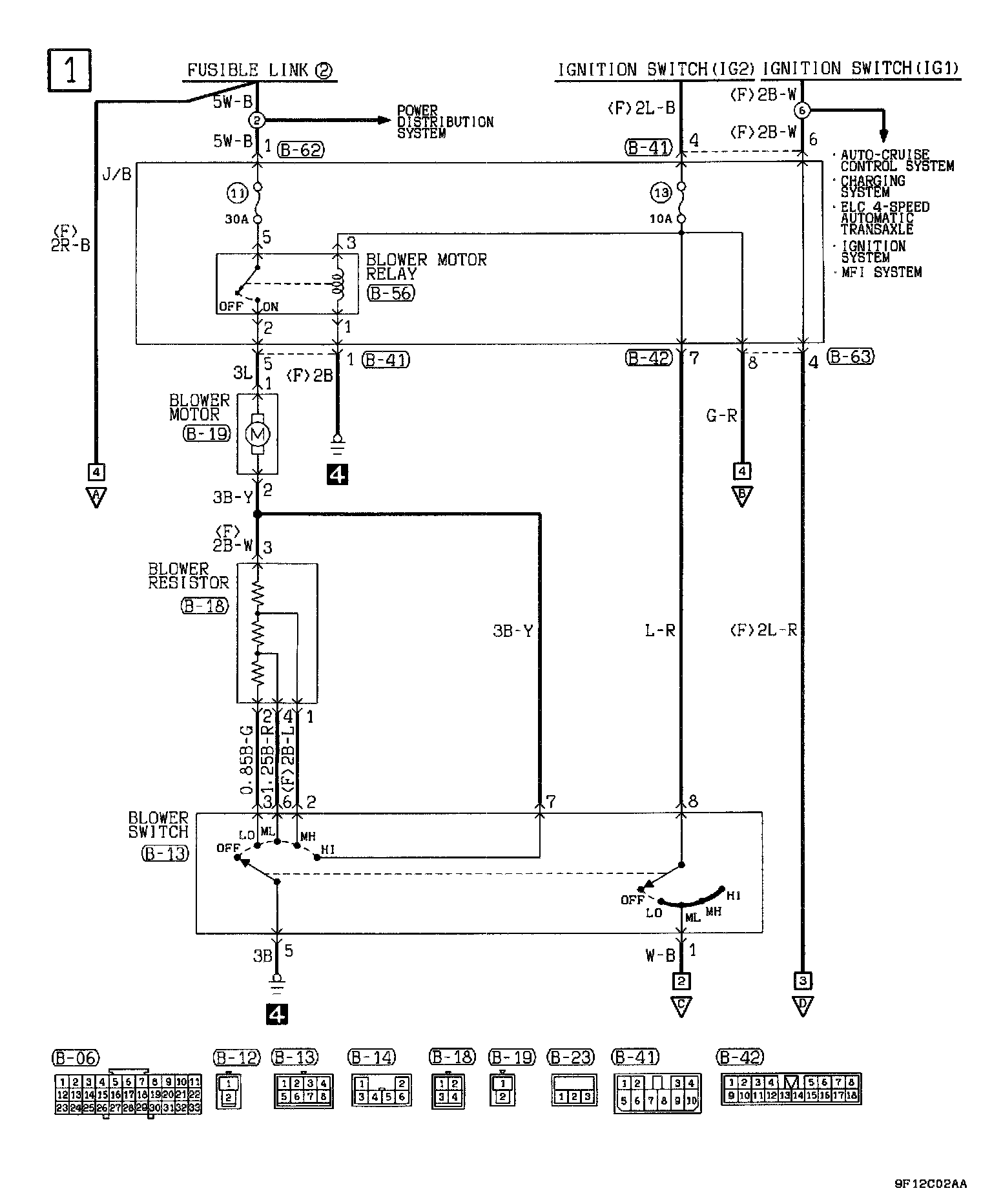

Air Conditioning System (Part 1 Of 5):

Blower Motor
Blower Resistor
Blower Switch
J/B
- Blower Motor Relay

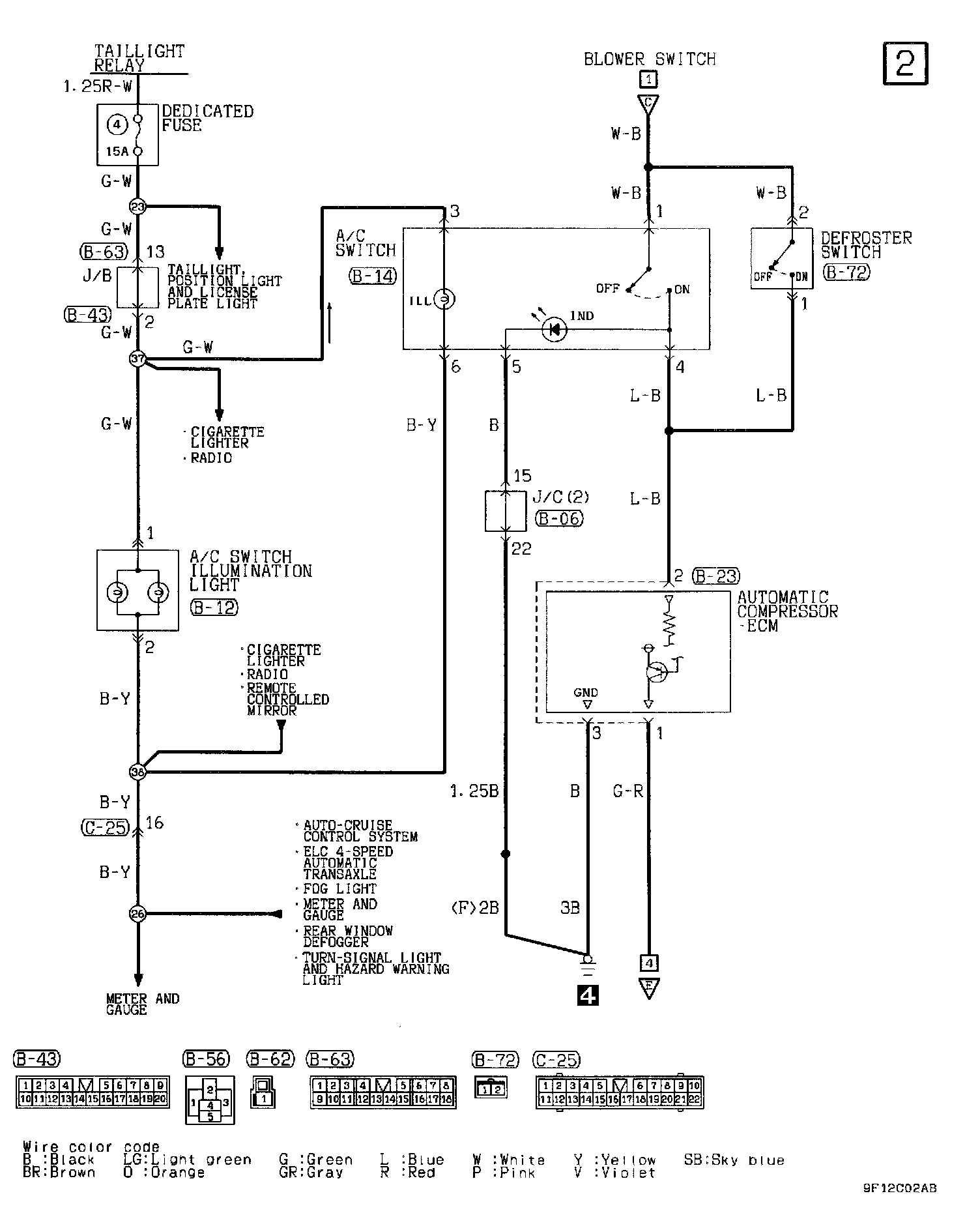

Air Conditioning System (Part 2 Of 5):

A/C Switch Illumination Light
Automatic Compressor-ECM
Dedicated Fuse
Defroster Switch
J/B
J/C (2)

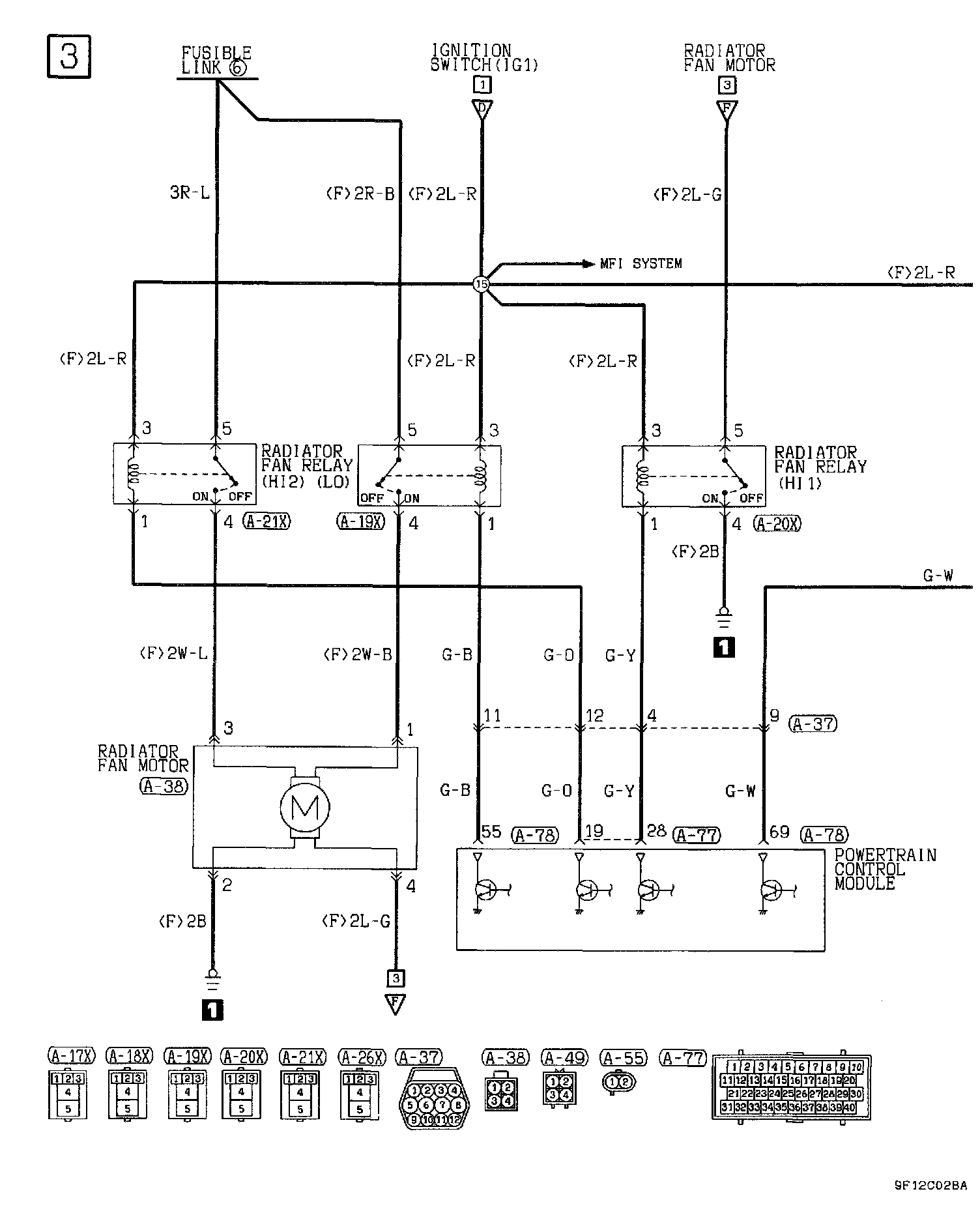

Air Conditioning System (Part 3 Of 5):

Powertrain Control Module
Radiator Fan Motor
Radiator Fan Relay (HI1, HI2, LO)

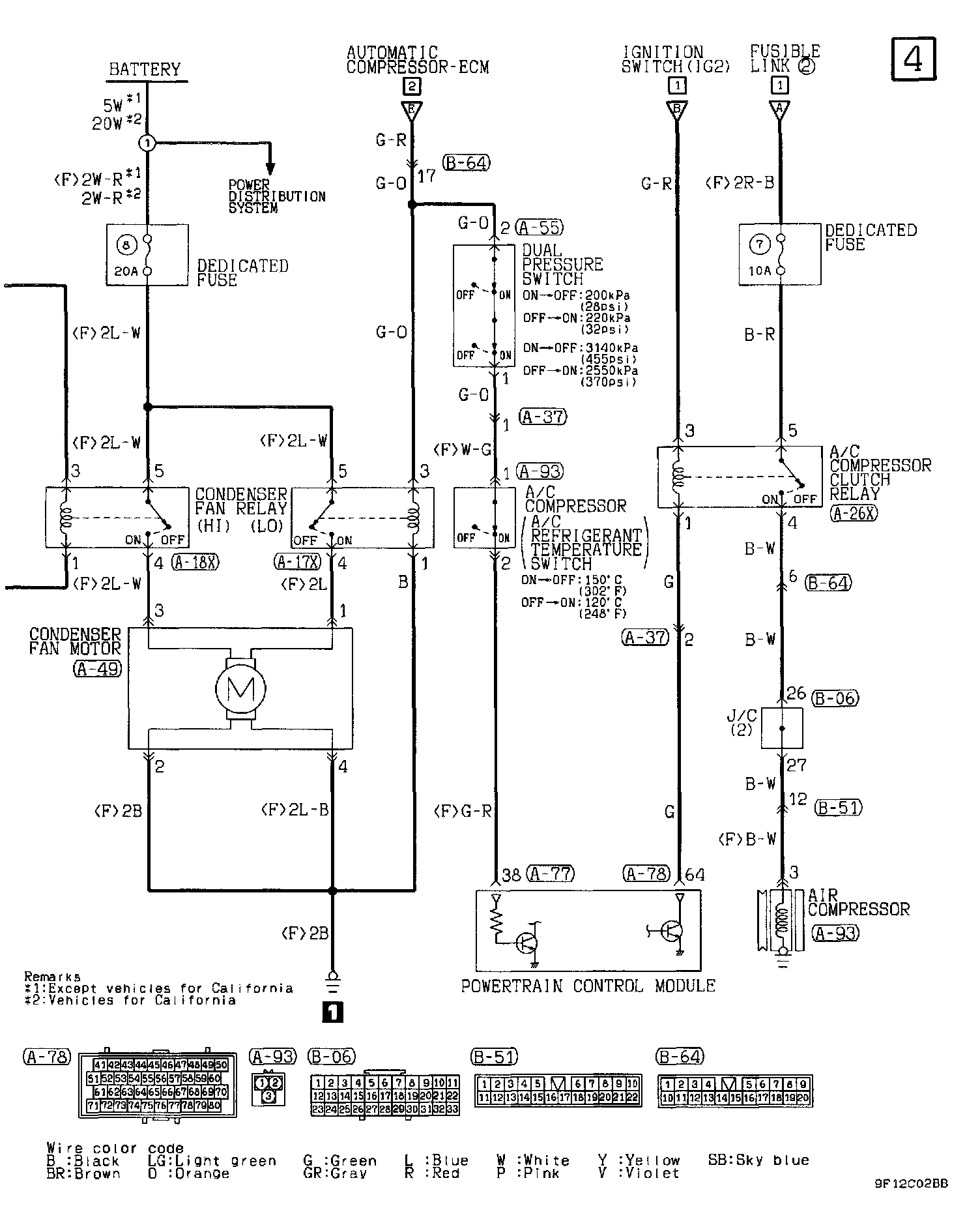

Air Conditioning System (Part 4 Of 5):

A/C Compressor Clutch Relay
A/C Compressor (A/C Refrigerant Temperature Switch)
Air Compressor
Condenser Fan Motor
Condenser Fan Relay (HI, LO)
Dedicated Fuse
Dual Pressure Switch
Powertrain Control Module

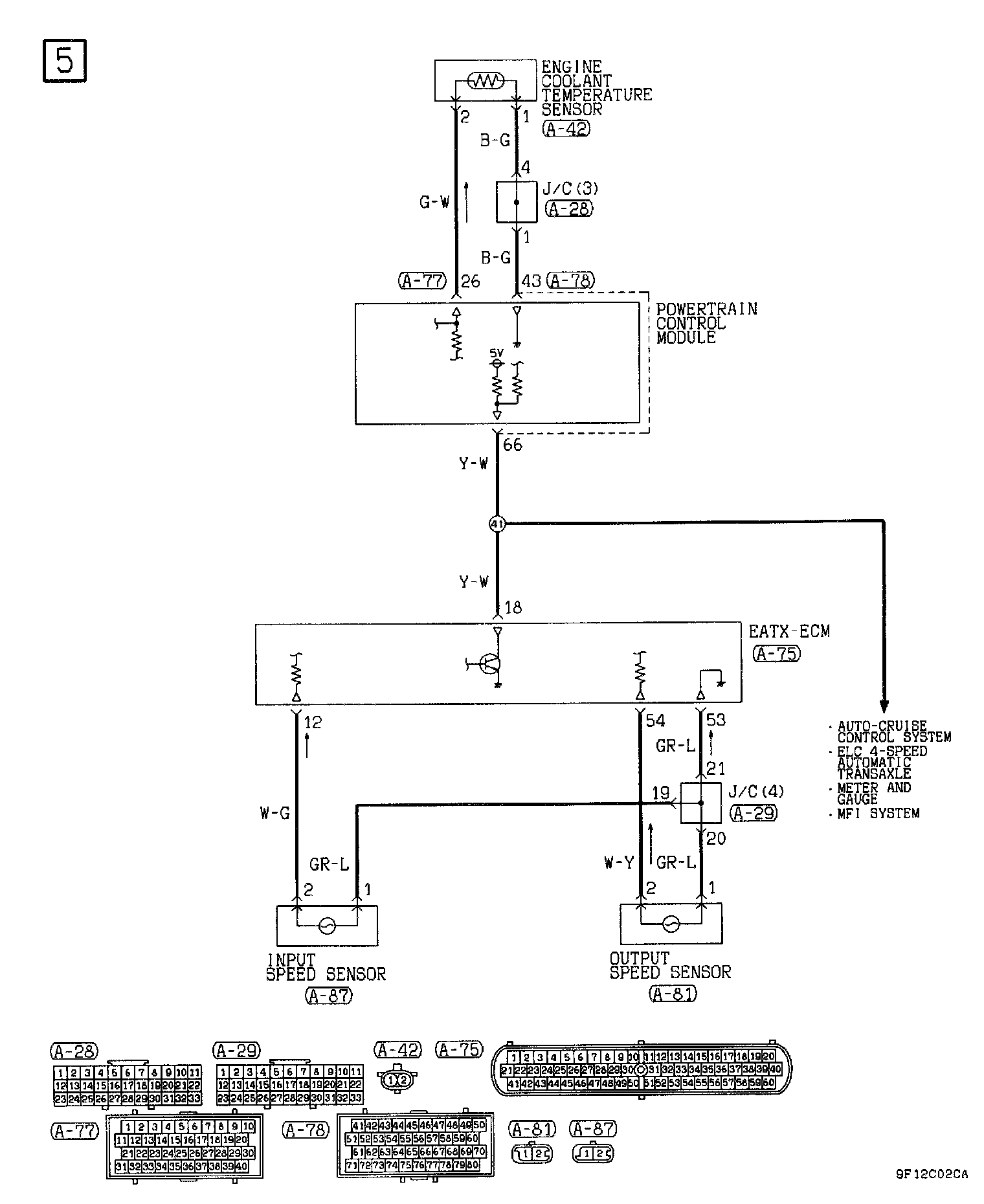

Air Conditioning System (Part 5 Of 5):

Engine Coolant Temperature Sensor
EATX-ECM
Input Speed Sensor
J/C (3, 4)
Output Speed Sensor
Powertrain Control Module
