Lighting Monitor Buzzer

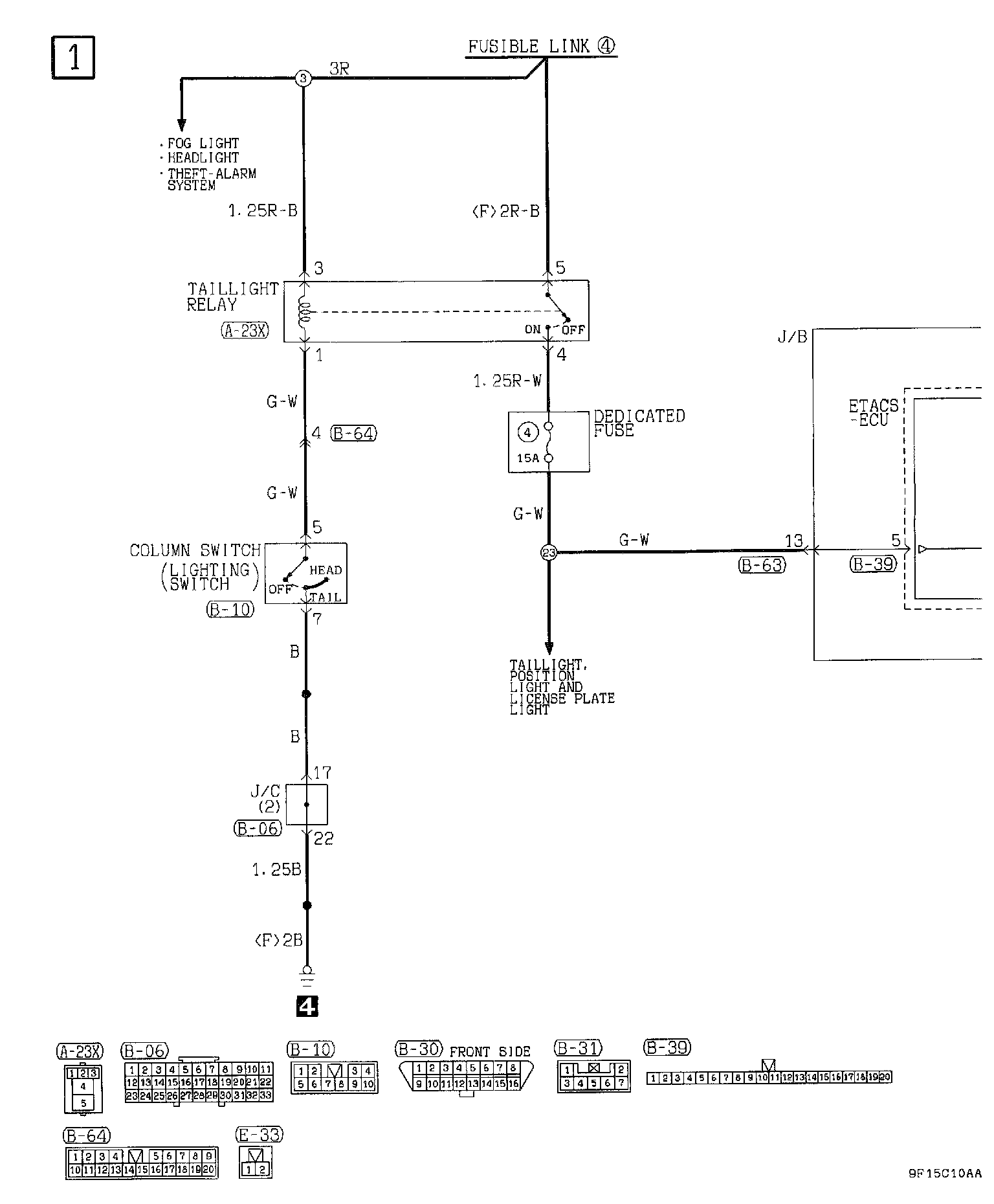

Lighting Monitor Buzzer (Part 1 Of 2):

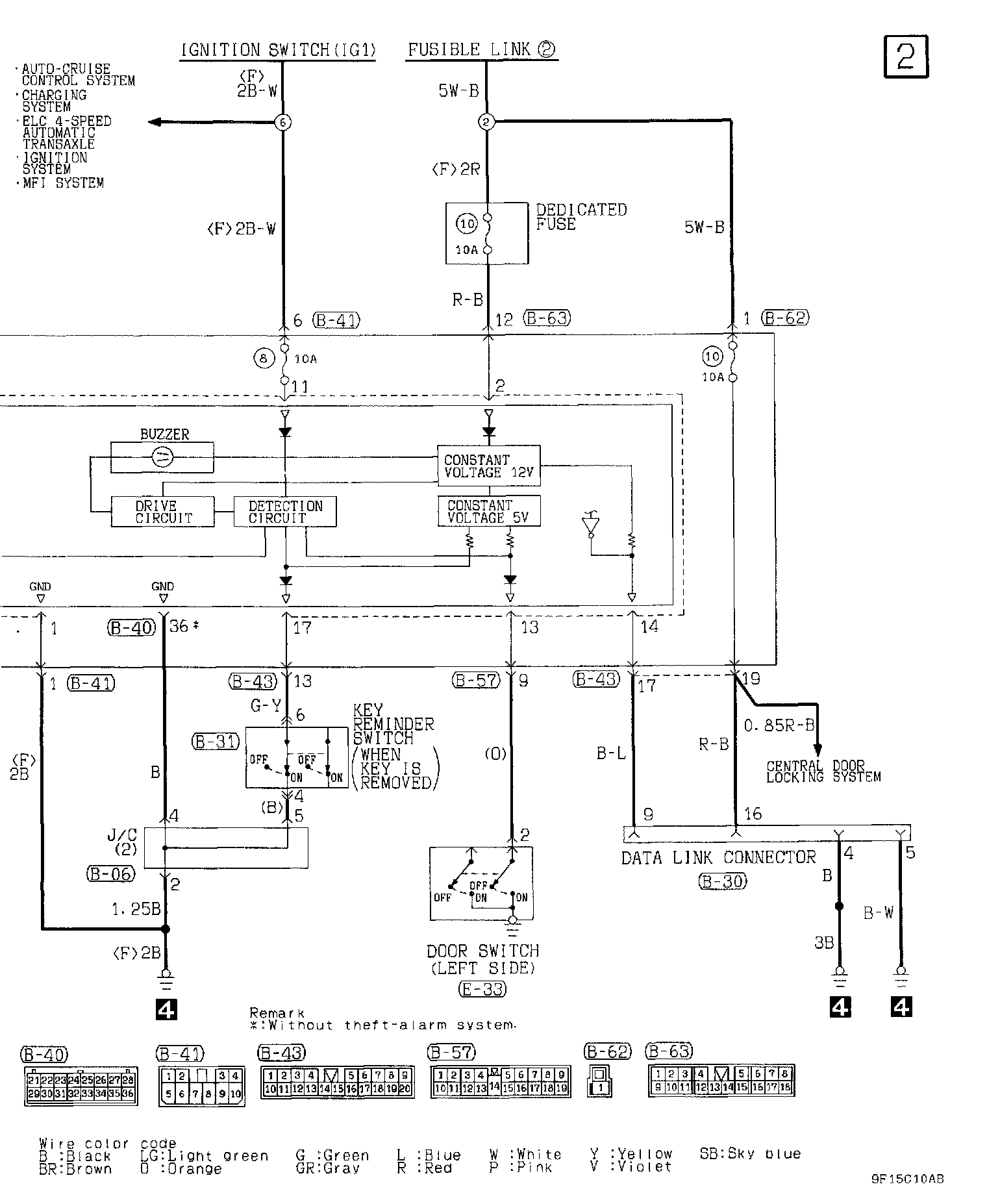

Lighting Monitor Buzzer (Part 2 Of 2):
