Vacuum and Vapor Hose Diagrams
>>
Emission Control Systems
>>
System Diagram
System Diagram

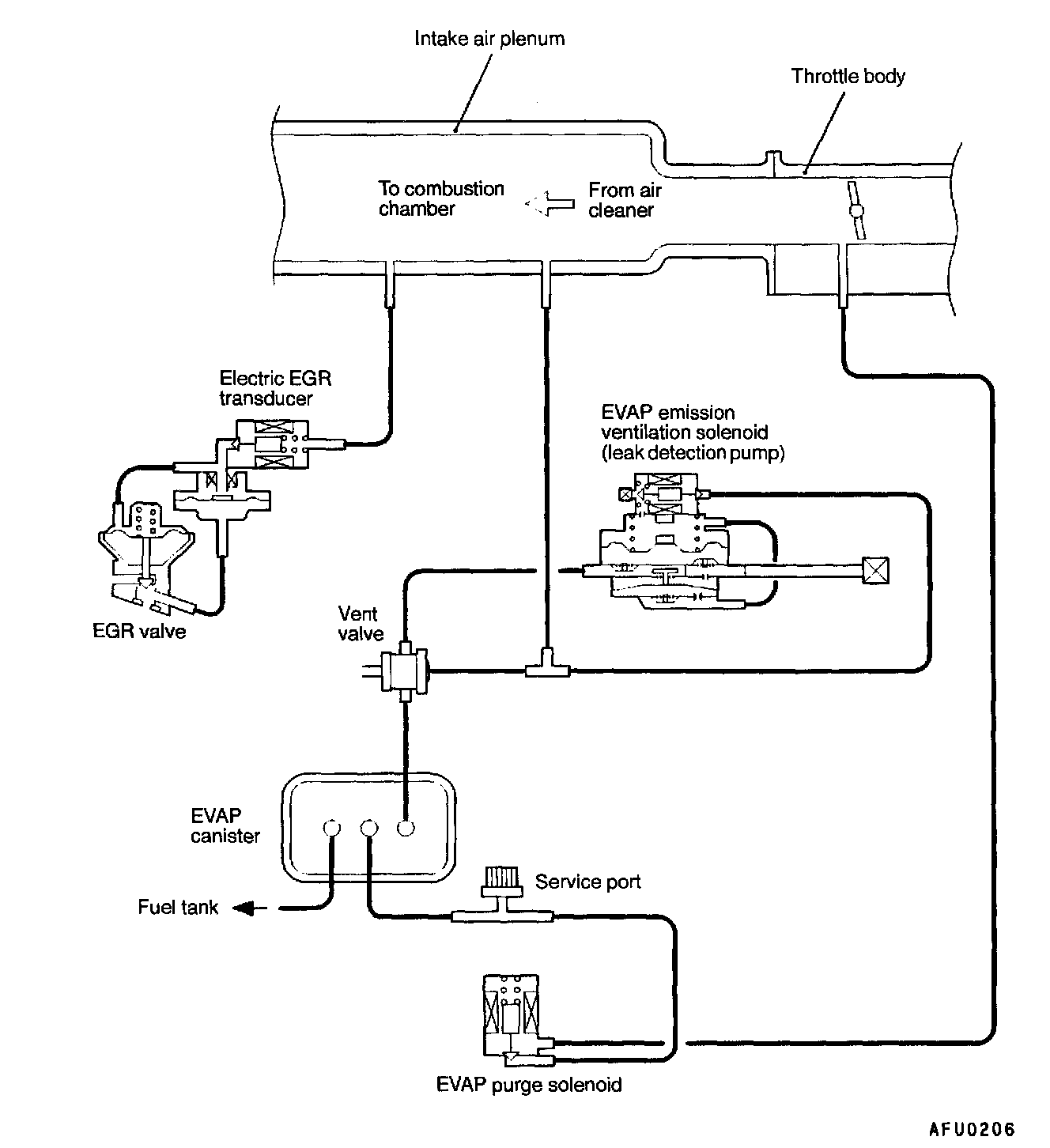

Vacuum Circuit Diagram:
Vacuum Hose Routing:
