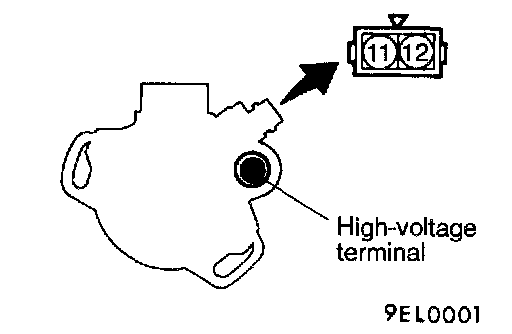

Ignition Coil




Items Standard value Limit

Primary coil resistance ohm 0.6 - 0.8 -
Secondary coil resistance k ohm 12 - 18 -
