Suspension: Description and Operation

FRONT AXLE
The front axle consists of a knuckle, front hub, unit bearing and drive shaft. The unit bearing is press-fitted to the front hub and bolted to the knuckle. Also, the unit bearing utilizes a double row angular contact ball bearing. The drive shaft has a Tripod Joint (T.J.) on the transaxle side and a Birfield Joint (B.J.) on the wheel side. A center bearing and an inner shaft have been adopted in some models.





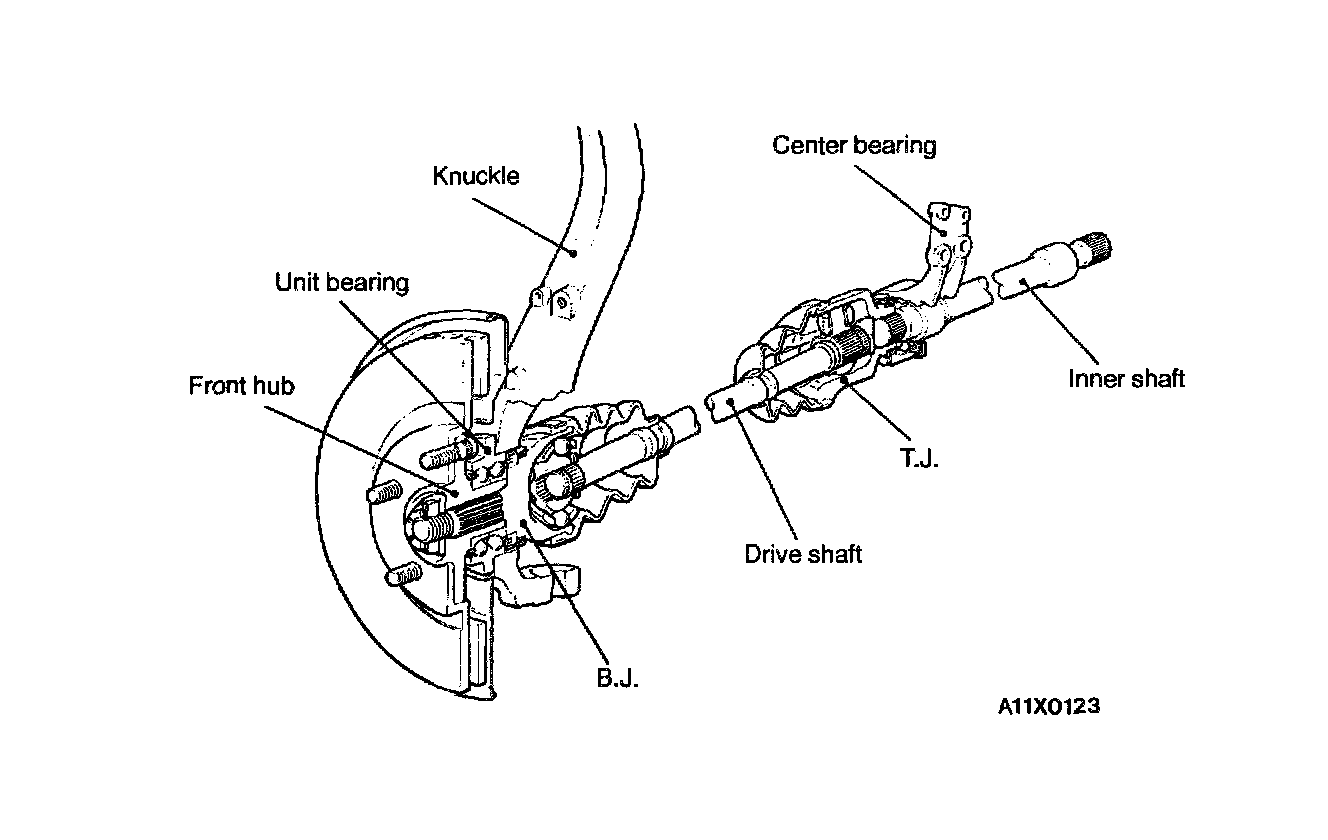

Sectional View

FRONT SUSPENSION
The front suspension is of a multi-link construction with two lower arms which create the ideal virtual kingpin axis for the suspension system. In addition, by mounting the upper arm in a higher position than the tires, excellent steering stability and ride comfort are obtained.

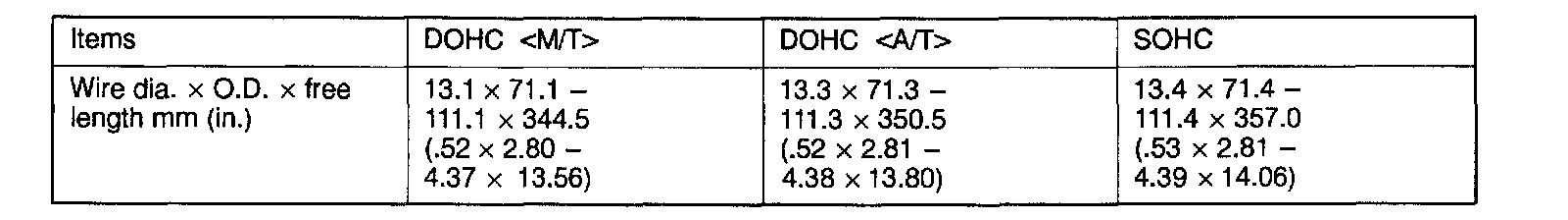

Coil Spring
