Connecting Rod and Bearing-Fitting

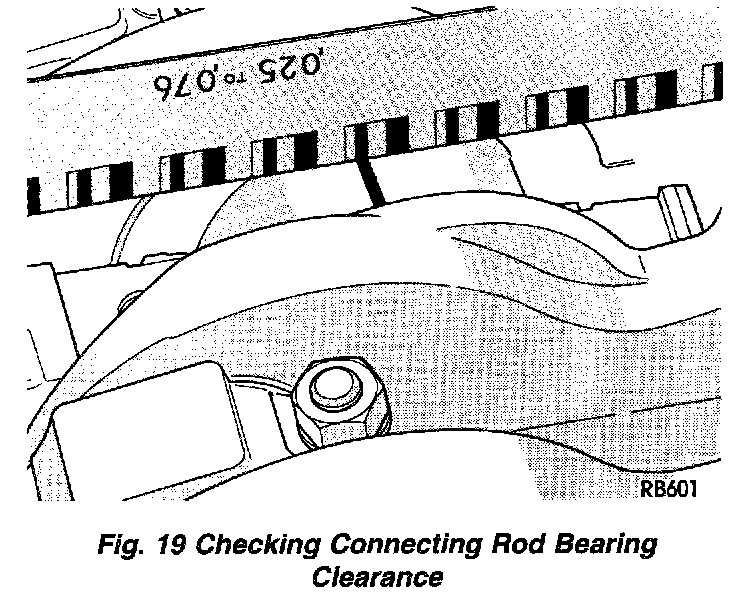

Fig. 19

1. Follow the procedures for Measuring Main Bearing and Connecting Rod Bearing Clearances. (Fig. 19). Refer to Engine, Specifications.
2. Tighten connecting rod nuts to 61 Nm (37 ft. lbs.).
3. Remove connecting rod cap and measure Plastigage. Refer to Engine Specifications.

CAUTION: Do not rotate crankshaft or the Plastigage may be smeared.

CONNECTING ROD SIDE CLEARANCE





Fig. 20

Using a feeler gauge, check connecting rod side clearance (Fig. 20). Refer to Engine Specifications.
