Concorde V6-2.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ignition Coil
Ignition Coil

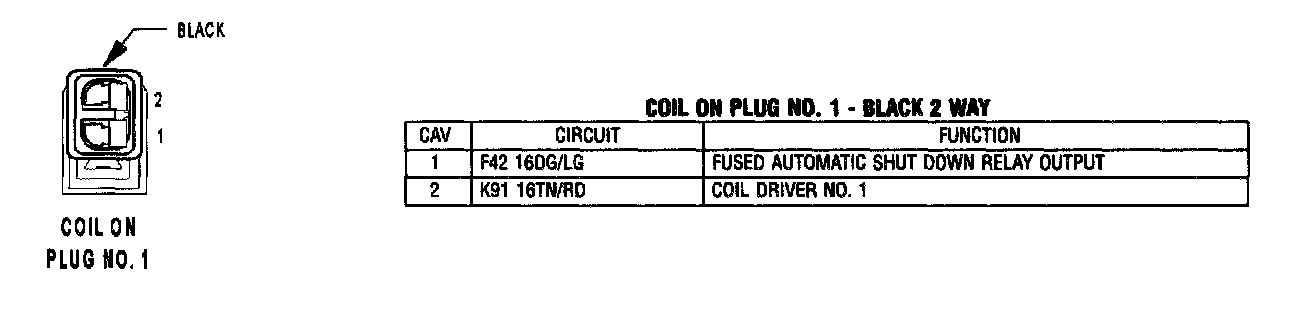

Coil On Plug No. 1:

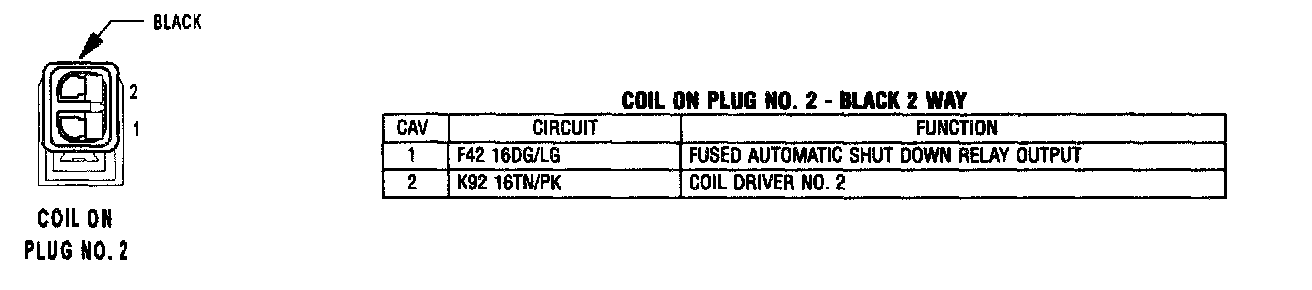

Coil On Plug No. 2:

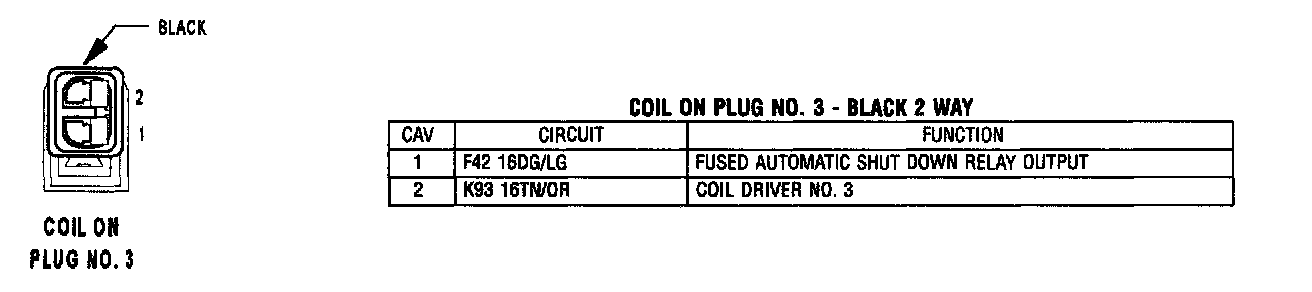

Coil On Plug No. 3:

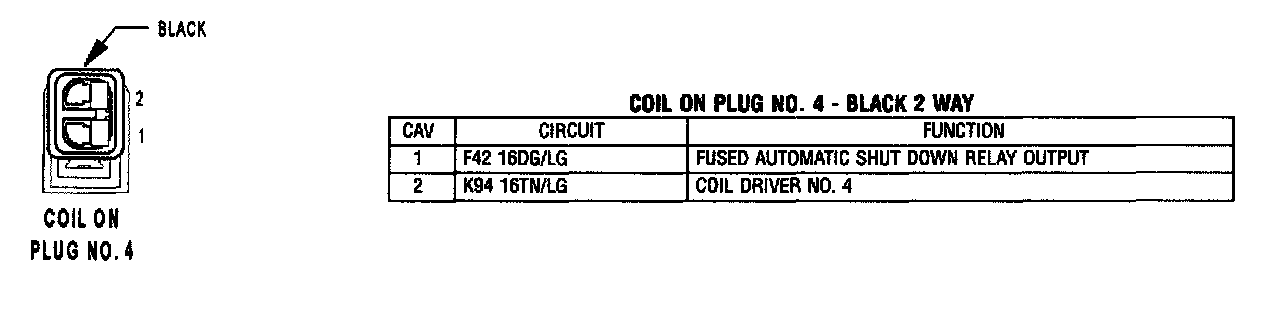

Coil On Plug No. 4:

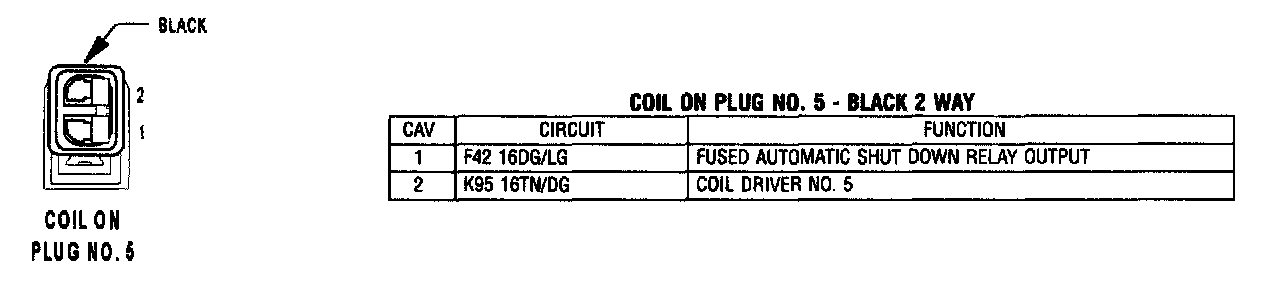

Coil On Plug No. 5:

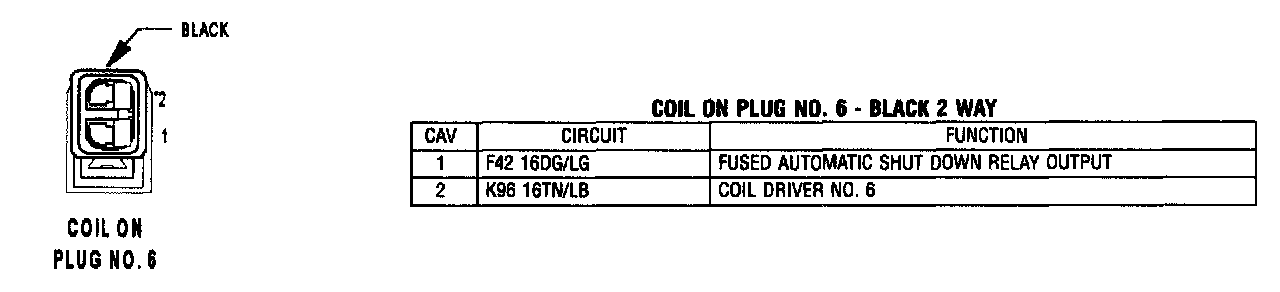

Coil On Plug No. 6:
