Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chrysler
>>
2000
>>
Concorde V6-2.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Instrument Cluster / Carrier
>>
Instrument Panel Bulb
Instrument Panel Bulb
Overhead Map/Courtesy Lamp:

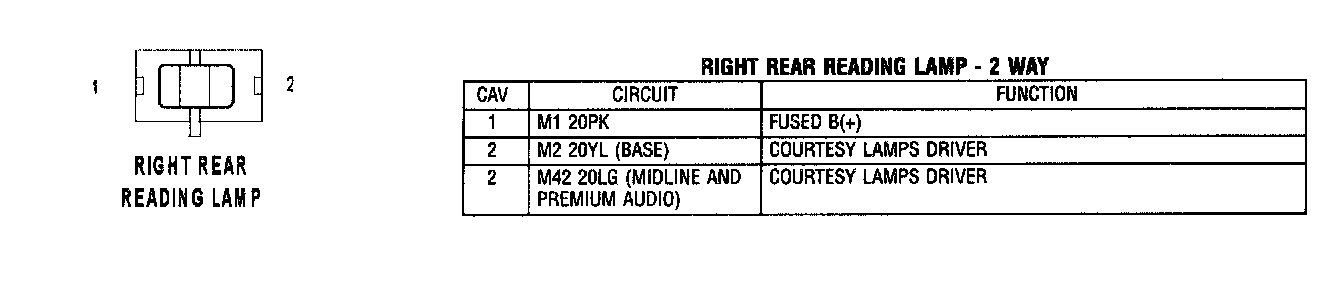

Right Rear Reading Lamp:
