Home >> Chrysler >> 2001 >> 300M V6-3.5L VIN G >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Diagrams

Instrument Panel, Gauges and Warning Indicators: Diagrams

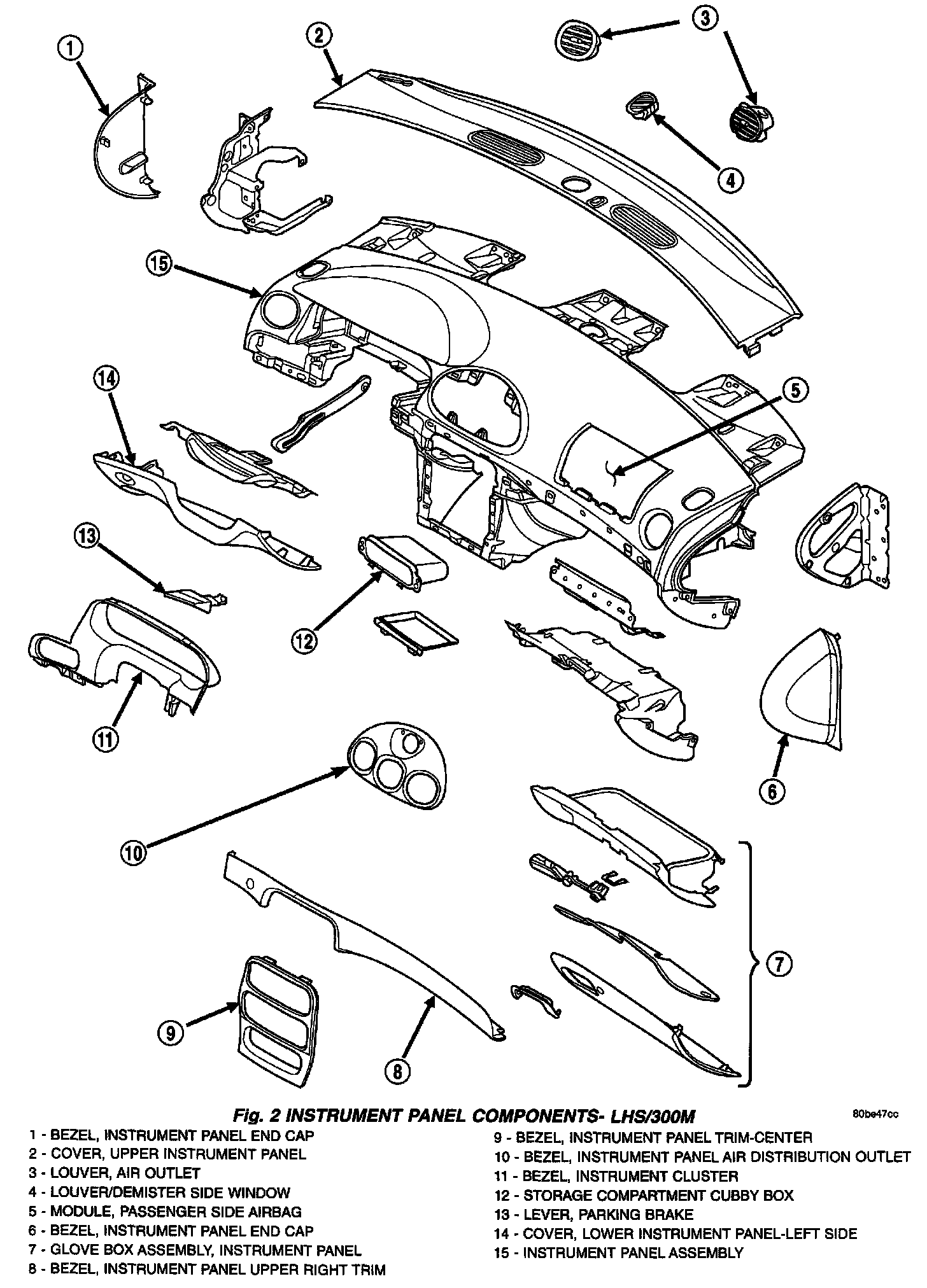

Fig. 2 Instrument Panel Components - LHS/300M:
