Washer Runs All the Time With Ignition On
Washer Runs All the Time With Ignition On

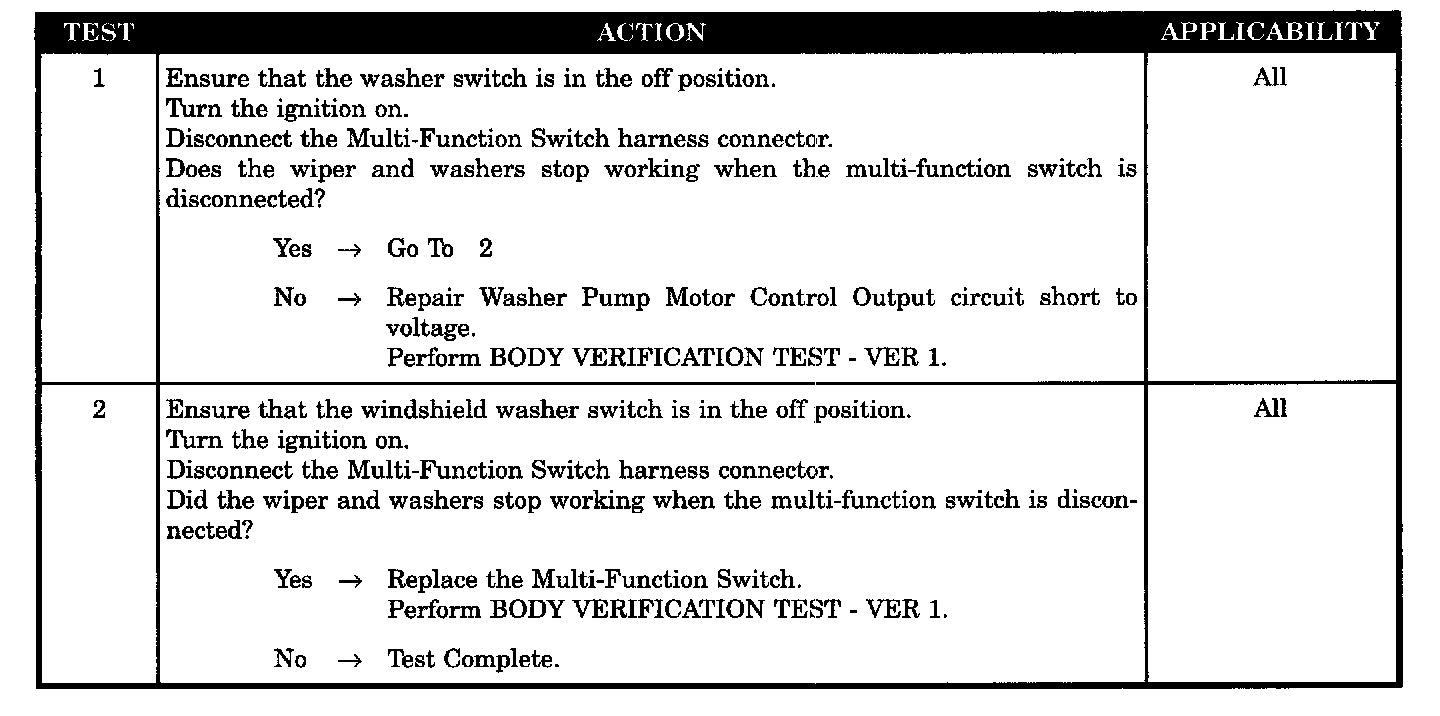

Tests 1 - 2:
SYMPTOM
WASHER, RUNS ALL THE TIME WITH IGNITION ON
POSSIBLE CAUSES
-
Washer pump motor control output circuit shorted to voltage
-
Washer pump switch short to voltage
