Parking Lamp
>>
System Diagram
System Diagram

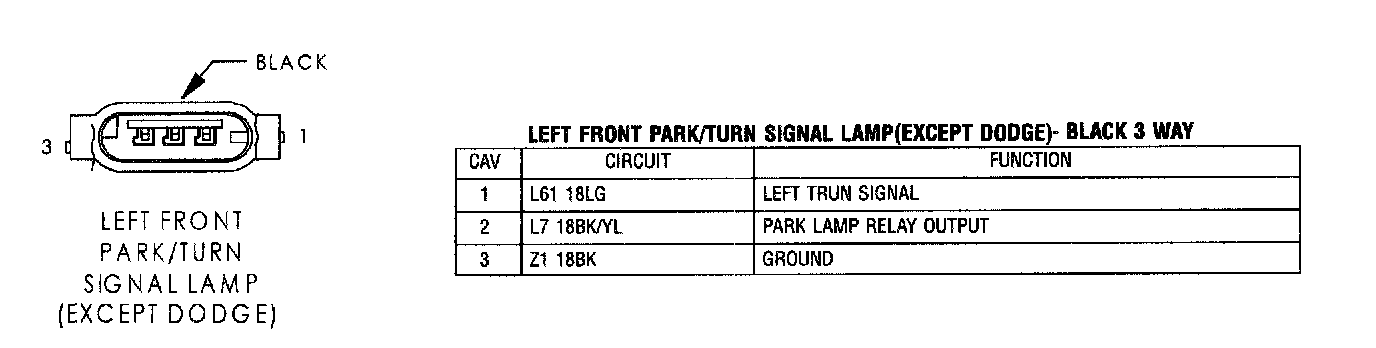

Left Front Park/Turn Signal Lamp (Except Dodge):

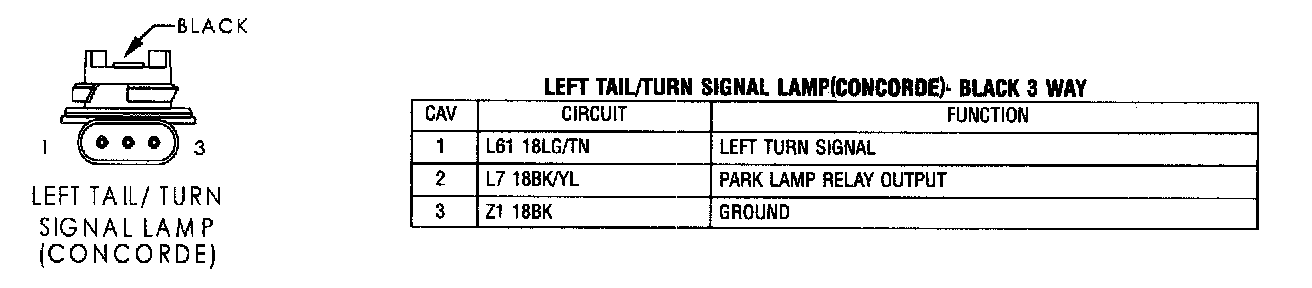

Left Tail/Turn Signal Lamp (Concorde):

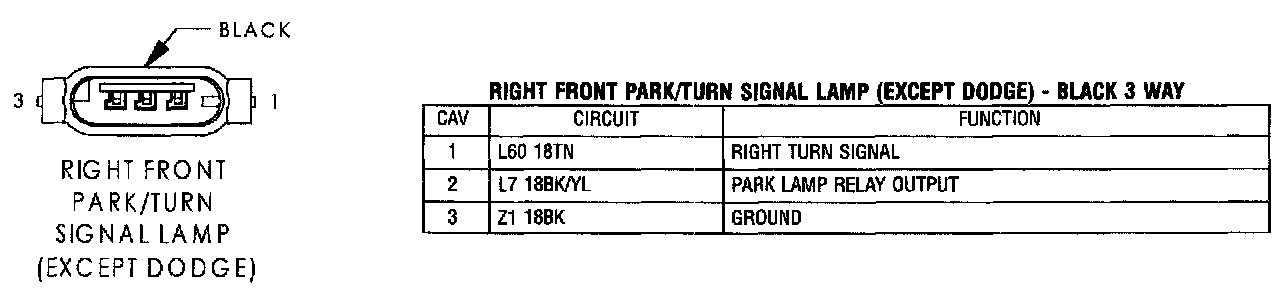

Right Front Park/Turn Signal Lamp (Except Dodge):
Right Tail/Turn Signal Lamp (Concorde):
