Brake Lamp: Diagrams

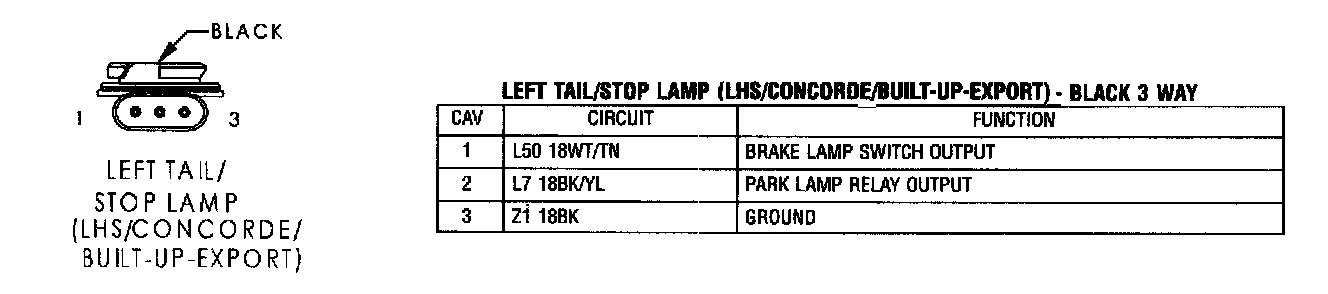

Left Tail/Stop Lamp (LHS/Concorde/Built-Up-Export):
Right Tail/Stop Lamp (LHS/Concorde/Built-Up-Export):
