Parking Lamp: Service and Repair

REMOVAL
1. Open Hood, disconnect and isolate the battery negative cable.

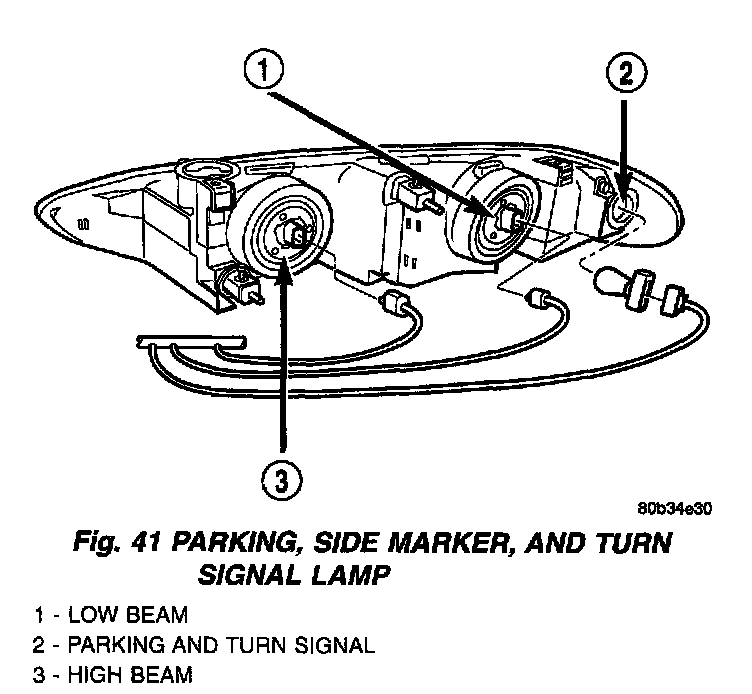

Fig.41 Parking, Side Marker, And Turn Signal Lamp:

2. Reach under the fascia and remove the socket from the lamp housing.
3. Rotate and pull socket from lamp housing.
4. Pull bulb from socket.


INSTALLATION

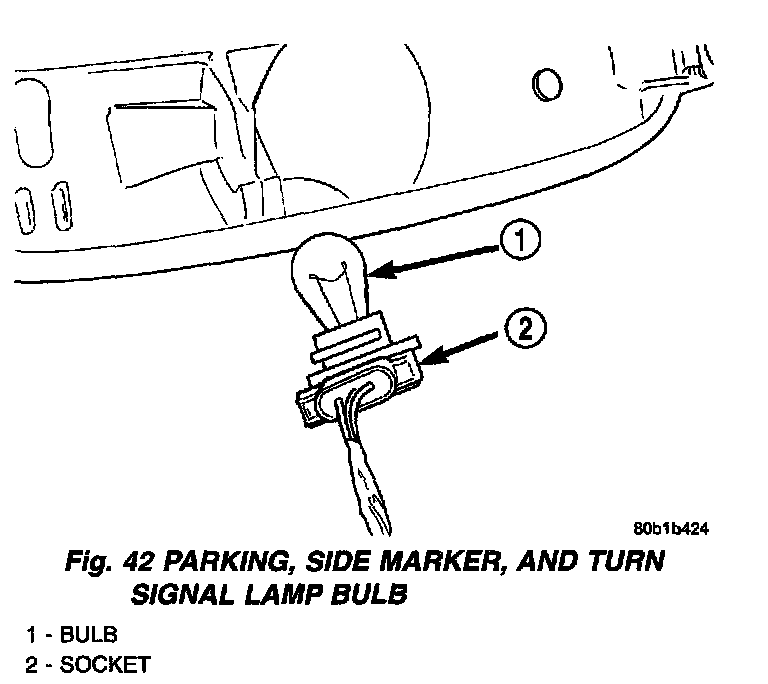

Fig.42 Parking, Side Marker, And Turn Signal Lamp Bulb:

1. Push bulb into socket. Rotate socket.
2. Reach under the fascia and place the socket into the lamp housing and rotate to lock.
3. Connect and the battery negative cable and close hood.
