Drive Belt: Adjustments

ADJUSTMENTS - BELT TENSION
Use belt tension gauge, Special Tool 7198 for conventional V-belts and Poly-V belts.
Adjust the belt tension for NEW or USED belt tension applications.

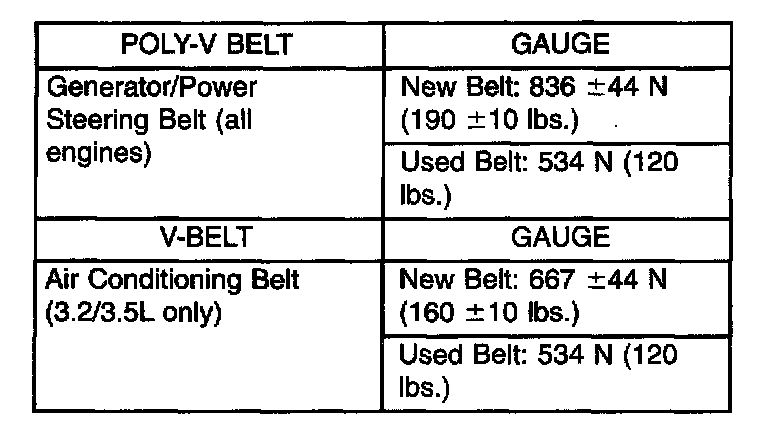

BELT TENSION CHART
