Shift Interlock Solenoid: Service and Repair

REMOVAL





(1) Remove the fuse panel cover from the left end of the instrument panel (Fig. 336).

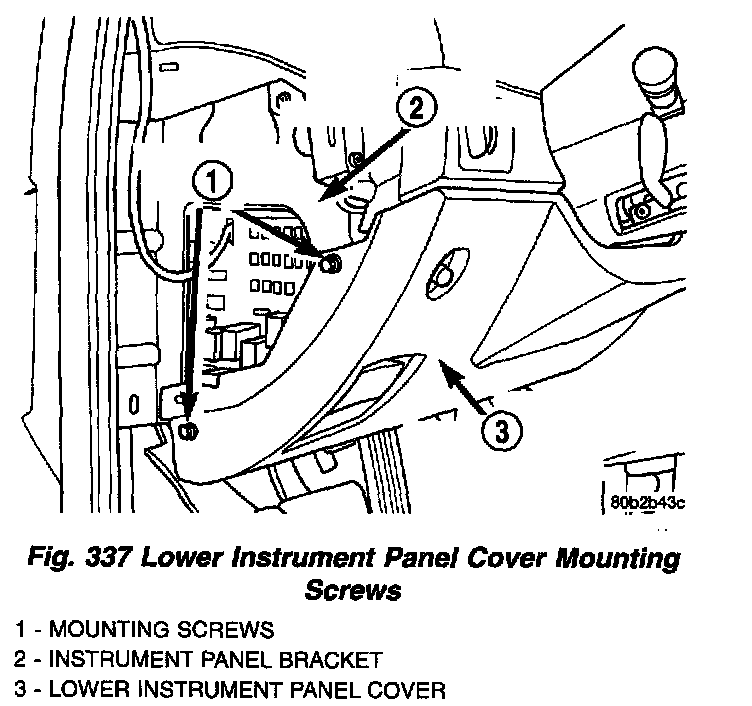

(2) Remove the two screws behind the fuse panel cover attaching the lower instrument panel cover to the instrument panel (Fig. 337).
(3) Remove the lower instrument panel cover. The lower instrument panel cover is attached by retaining clips along the top and right edge.

NOTE: The upper shroud on this steering column is retained to the steering column by a snap fit to the lower shroud. When removing the upper shroud from the steering column lower shroud, DO NOT use a hard or sharp tool. This will damage the shrouds. If a tool must be used, use a soft tool such as a trim stick.

(4) Remove the steering column upper shroud from the steering column using the following procedure:

First, on the right seam between the upper and lower shrouds, push in on seam at the forward end. When the upper shroud unsnaps, pull the upper shroud upward away from the lower. Repeat this procedure on the opposite side of the column to release the upper shroud from the lower. Remove the upper shroud from the steering column.

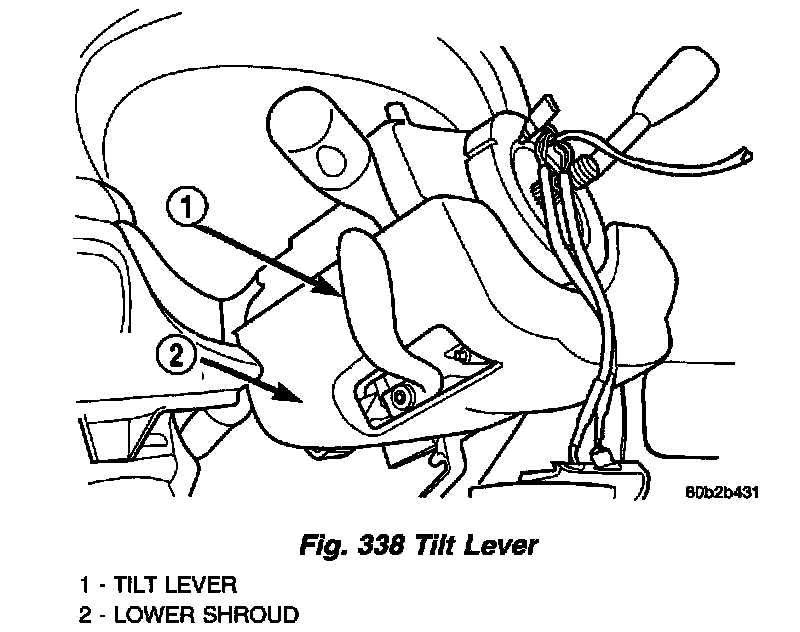

(5) Remove the tilt lever (Fig. 338) from the steering column.

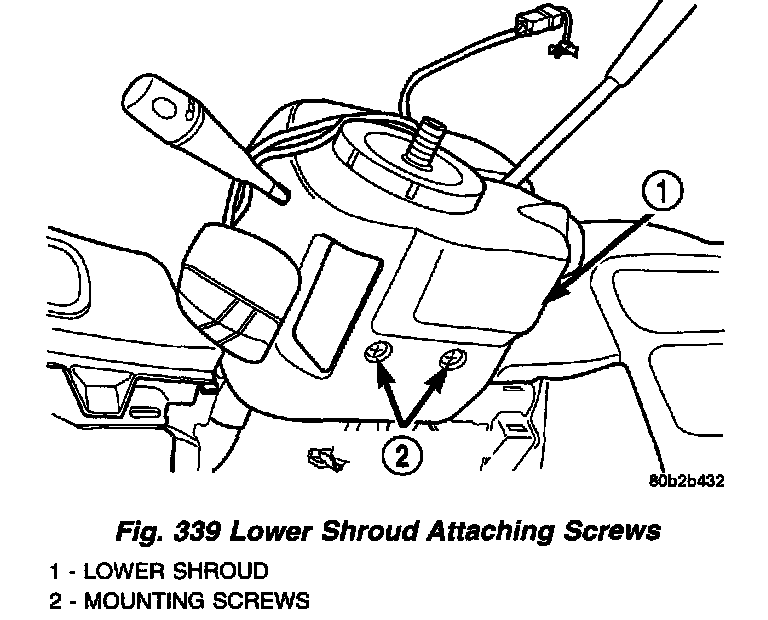

(6) Remove the 2 screws attaching the lower shroud to the steering column (Fig. 339). Remove the lower shroud from the steering column.





(7) Disconnect the wiring harness connector from the Brake Transmission Shift Interlock (BTSI) solenoid (Fig. 340).

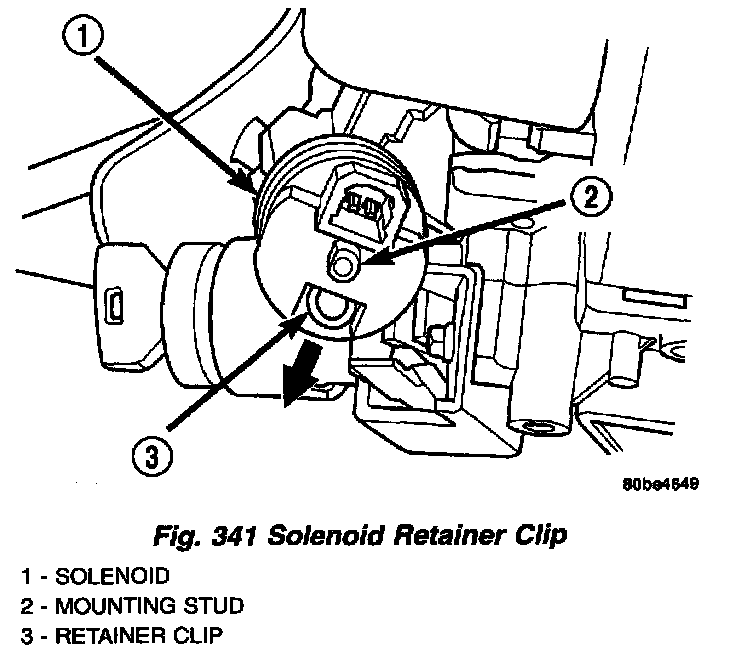

(8) Remove the retainer clip from the end of the BTSI solenoid (Fig. 341).
(9) Slide the BTSI solenoid straight off the shift lever mounting stud.

INSTALLATION

NOTE: If the Solenoid/Pressure Switch assembly is being replaced, the Quick Learn Procedure must be performed.

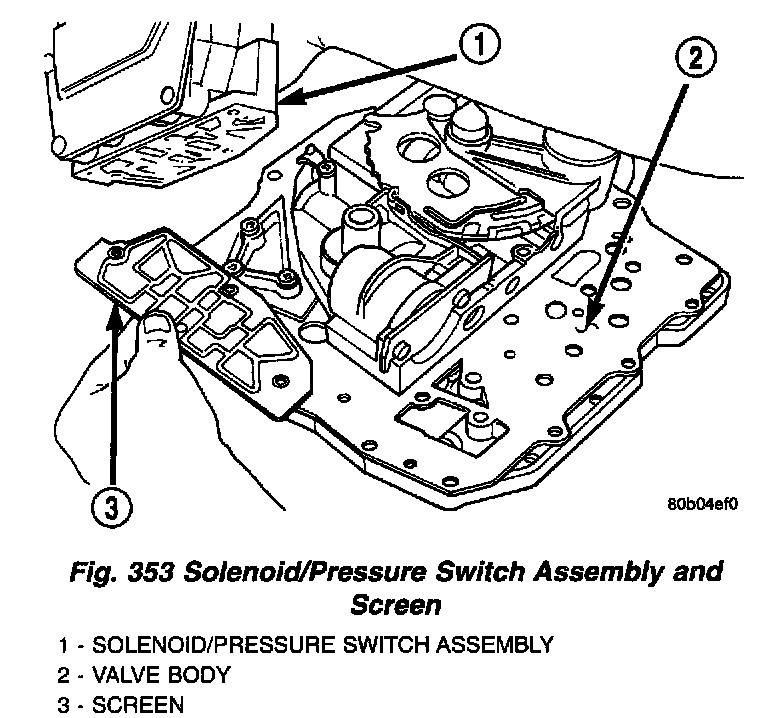

(1) Install Solenoid/Pressure Switch Assembly and screen to the separator and transfer plates (Fig. 353).

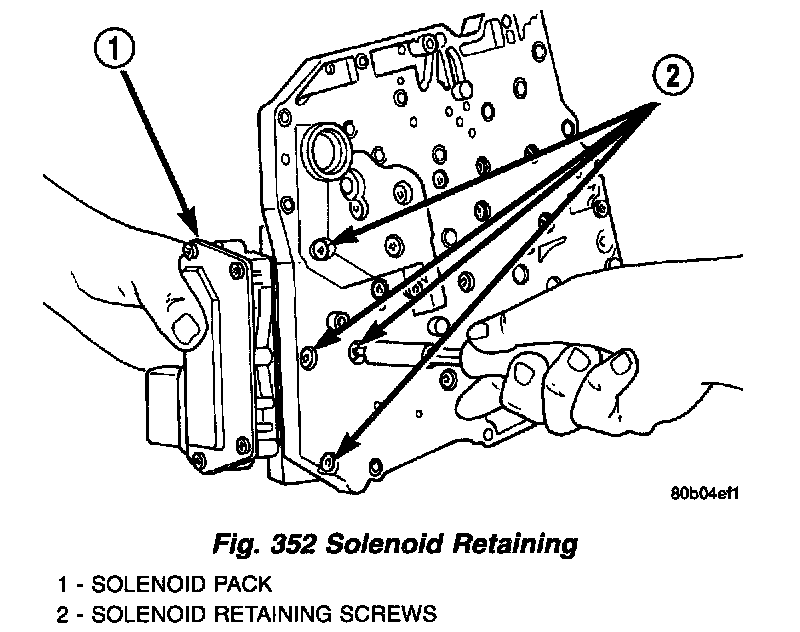

(2) Install and tighten retaining screws (Fig. 352) to 6 Nm (35 inch lbs.) torque.
(3) Install valve body.
