Upper Right Trim Bezel Replacement
REMOVALFig. 1 Negative Battery Cable Remote Terminal:
1. Open hood and disconnect the negative battery cable remote terminal from the remote battery post (Fig. 1).
2. Using a trim stick (Special tool # C-4755) or equivalent, gently pry out on center instrument panel bezel.
3. Open glove box and remove four screws along bottom edge of trim bezel.
4. Remove one screw in control bezel area.
5. Loosen the lower right edge of steering column cover, then loosen upper right corner of steering column cover.
6. Using a trim stick or equivalent, gently pry bezel away from the instrument panel and disconnect the traction control switch connector.

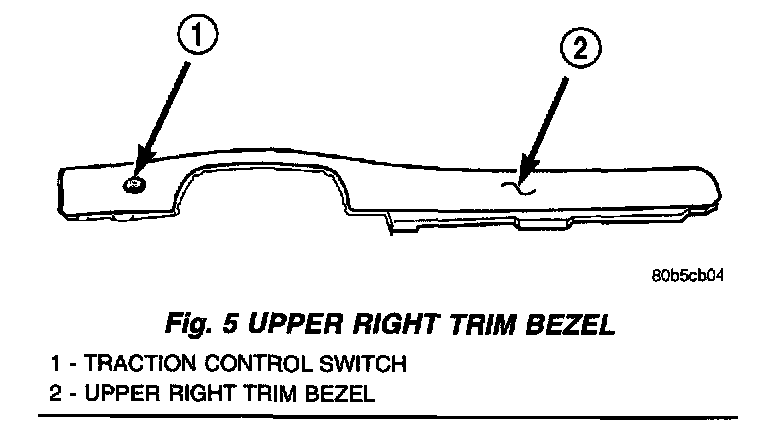

Fig. 5 Upper Right Trim Bezel:
7. Remove upper right trim bezel from vehicle (Fig.5).
INSTALLATION
1. Position upper right trim bezel over slots in instrument panel and firmly snap into place.If equipped with traction control, connect connector.
2. Tighten the lower right edge of steering column cover, then tighten upper right corner of steering column cover.
3. Install the one screw in center bezel area.
4. Install the four screws along bottom edge of trim bezel and close glove box.
5. Position center instrument panel bezel over slots and firmly snap into place.
6. Connect the negative battery cable remote terminal to the remote battery post (Fig.1).
