Tail Lamp: Diagrams

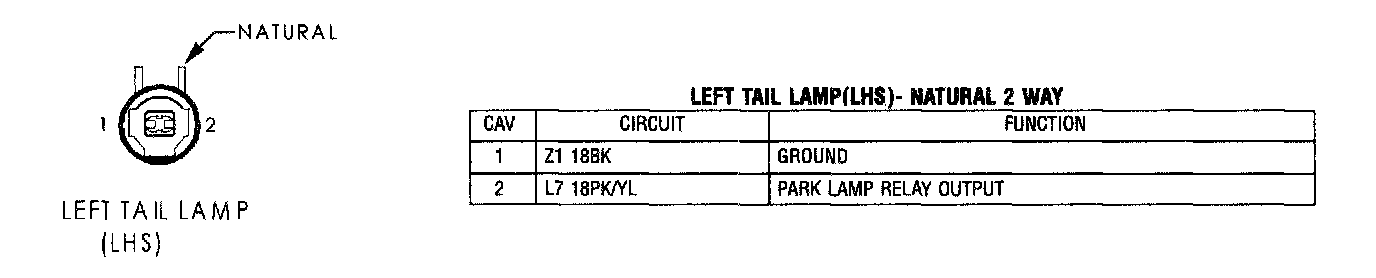

Left Tail Lamp (LHS):
Left Tail/Stop Lamp (LHS/Concorde/Built-Up-Export):

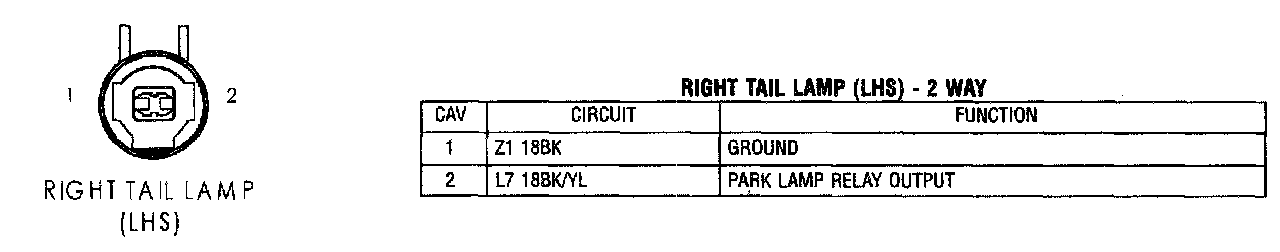

Right Tail Lamp (LHS):
Right Tail/Stop Lamp (LHS/Concorde/Built-Up-Export):
