Headlamp
>>
System Diagram
System Diagram
Right Headlamp (Built-Up-Export):

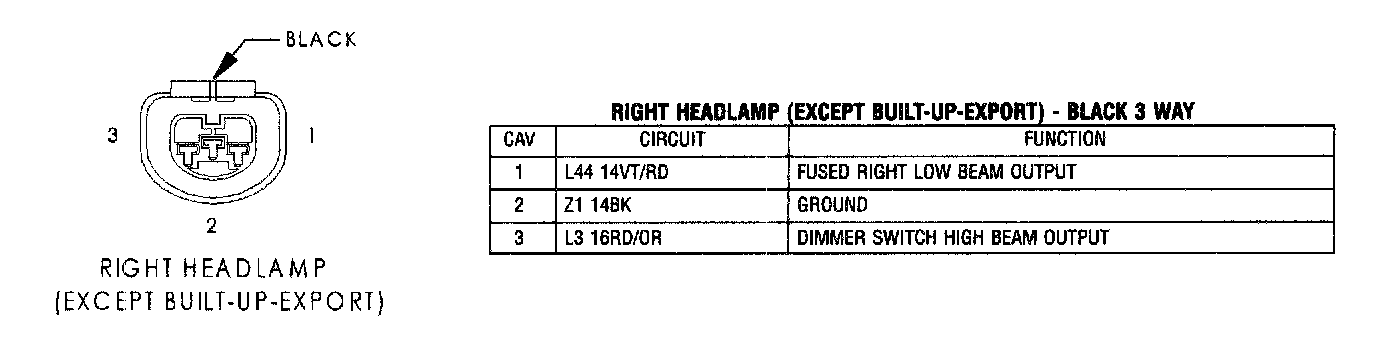

Right Headlamp (Except Built-Up-Export):
