Circuit Breaker

Fuse Block (LHD):

Circuit Breakers (LHD):

Fuse Block (RHD):

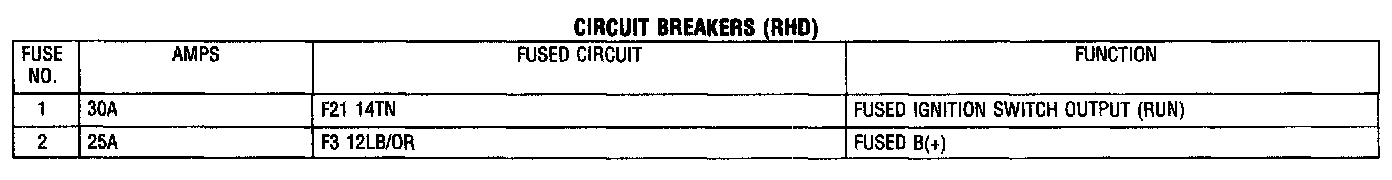

Circuit Breakers (RHD):
