Automatic Transaxle Overhaul

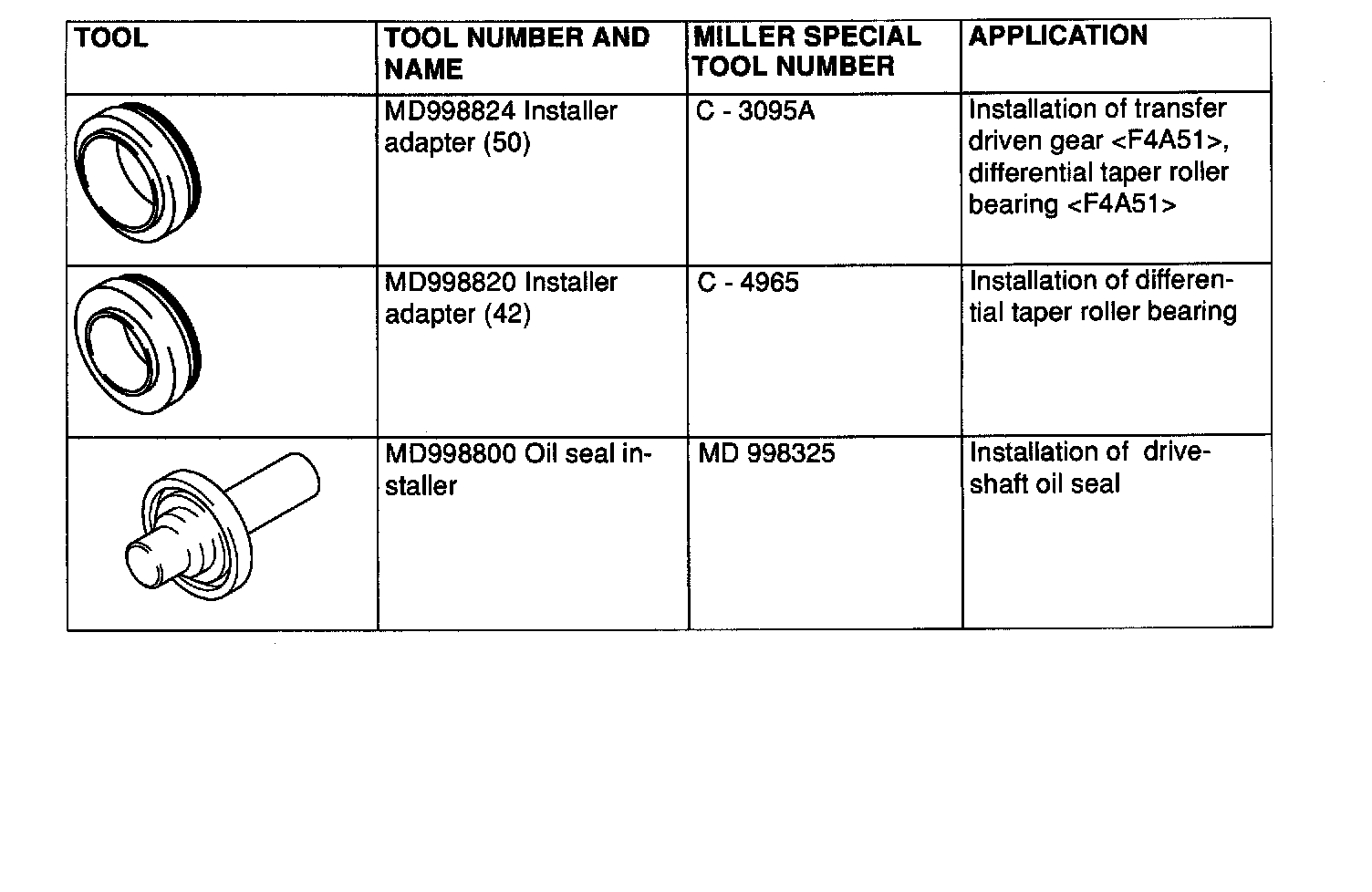

SPECIAL TOOL(S) Part 1 of 5

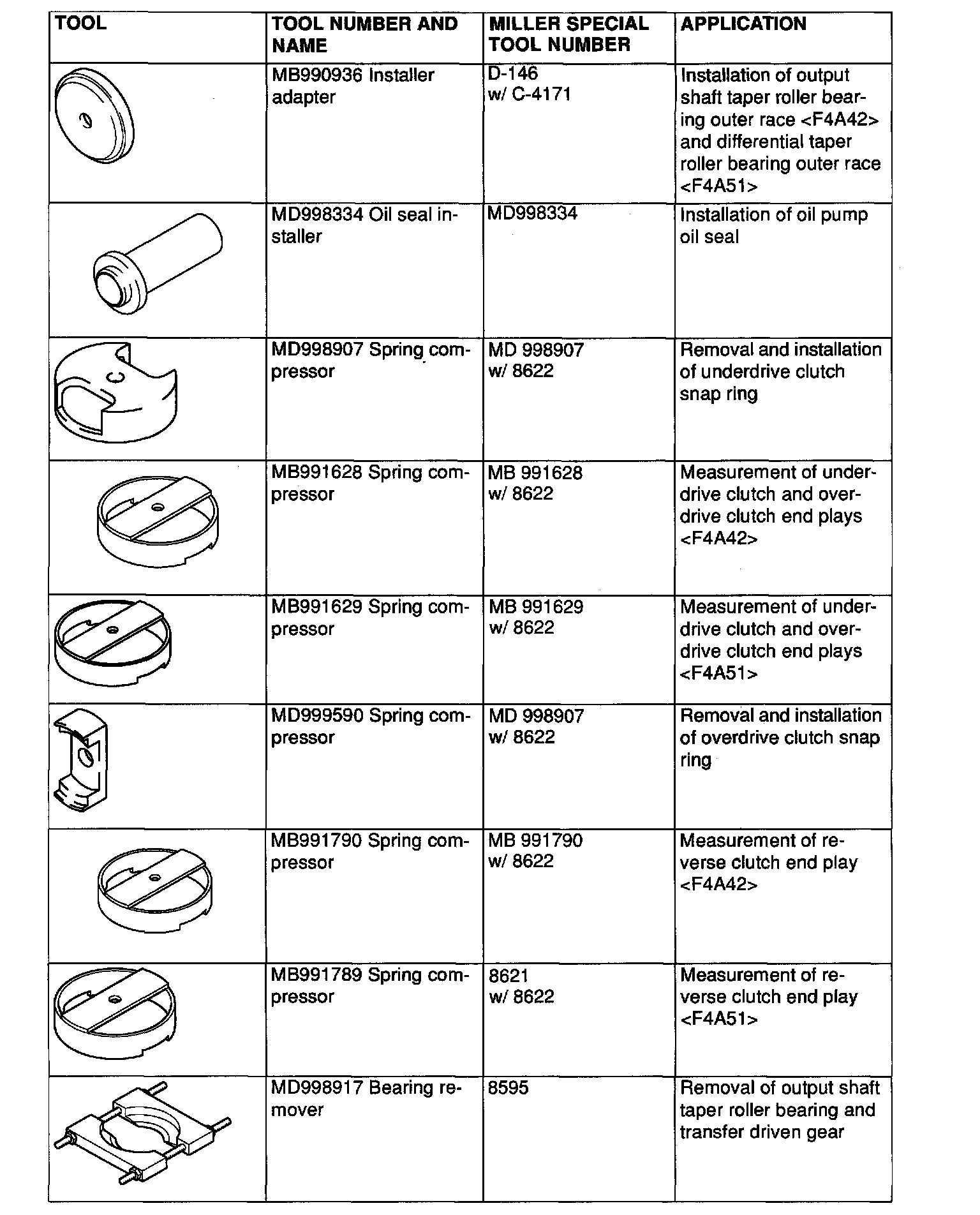

SPECIAL TOOL(S) Part 2 of 5

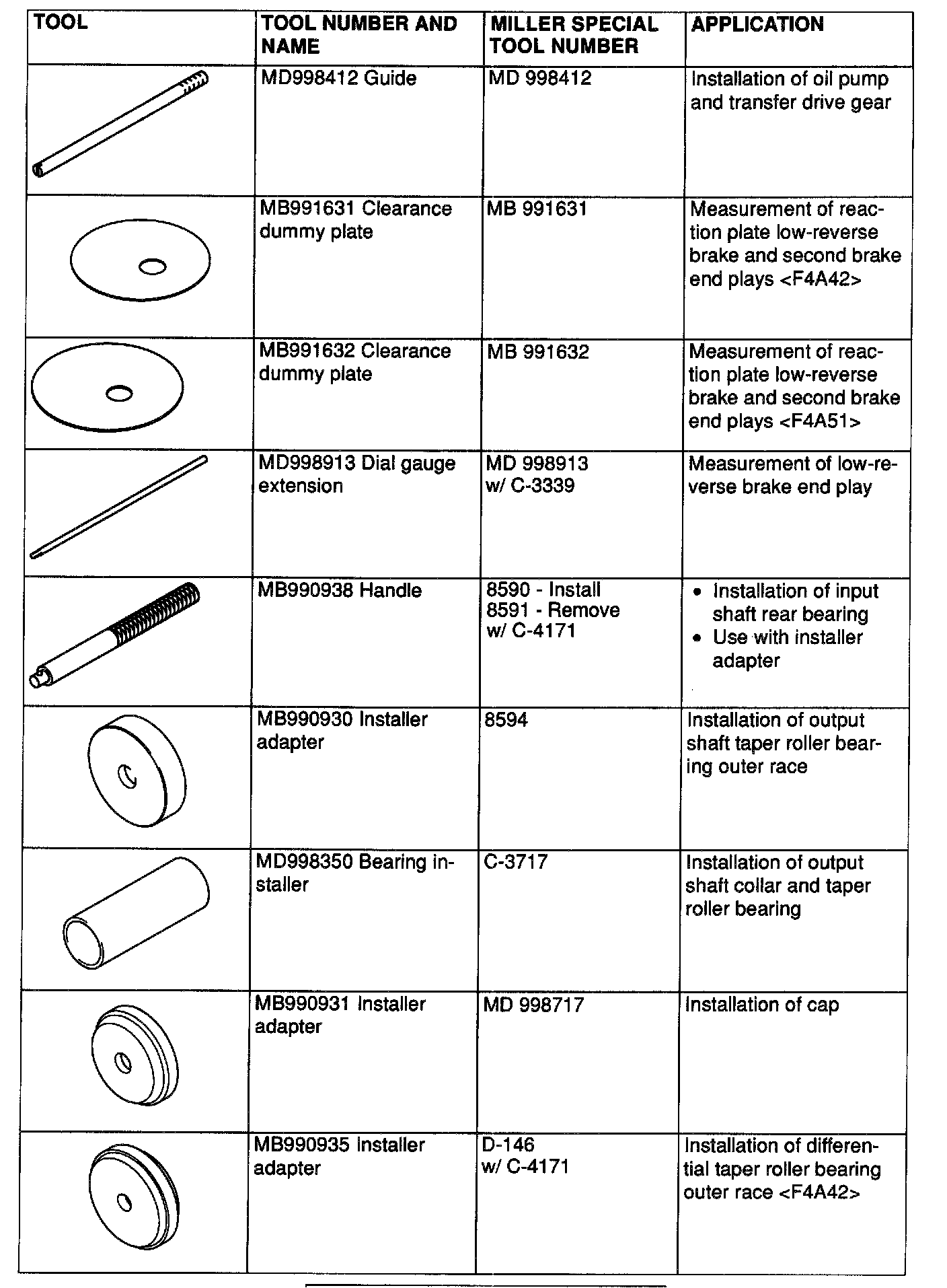

SPECIAL TOOL(S) Part 3 of 5





SPECIAL TOOL(S) Part 4 of 5





SPECIAL TOOL(S) Part 5 of 5
