C314
C314
C314 (Concorde/Dodge/300M):

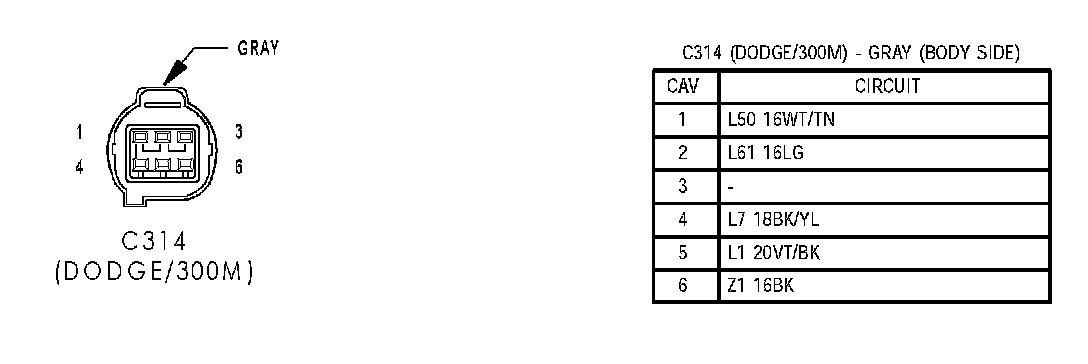

C314 (Dodge/300M):
C314 (LHS/Built-Up-Export):

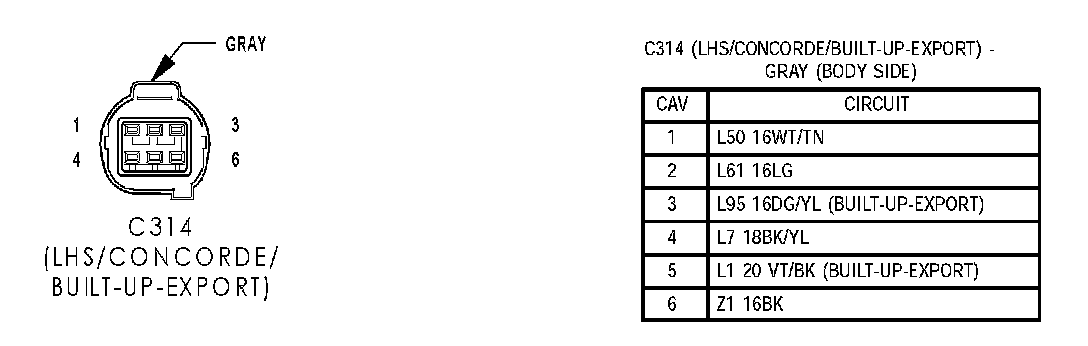

C314 (LHS/Concorde/Built-Up-Export):
