Seats
>>
Power Seat Switch
Power Seat Switch

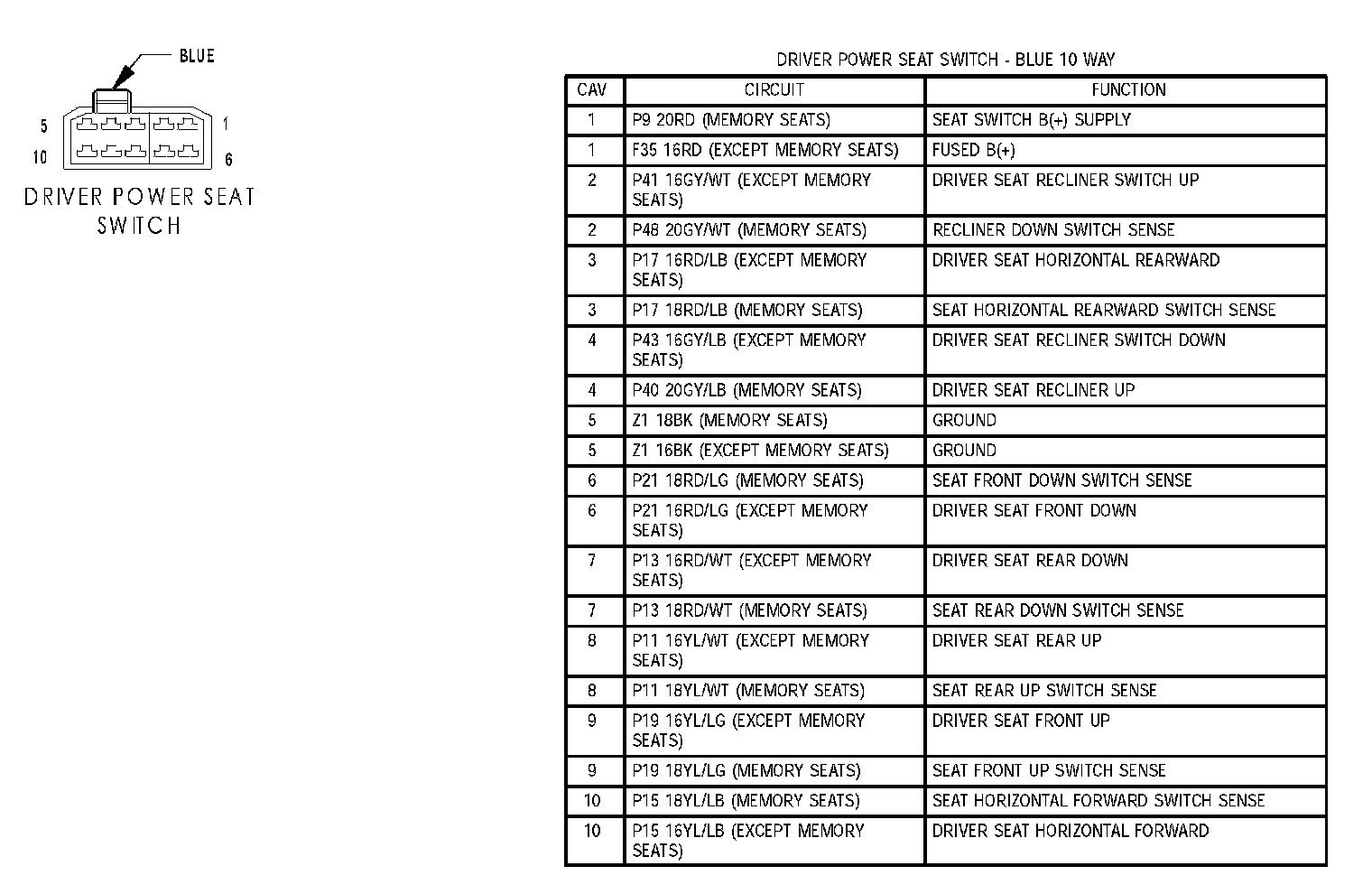

Driver Power Seat Switch:
Memory Set Switch:

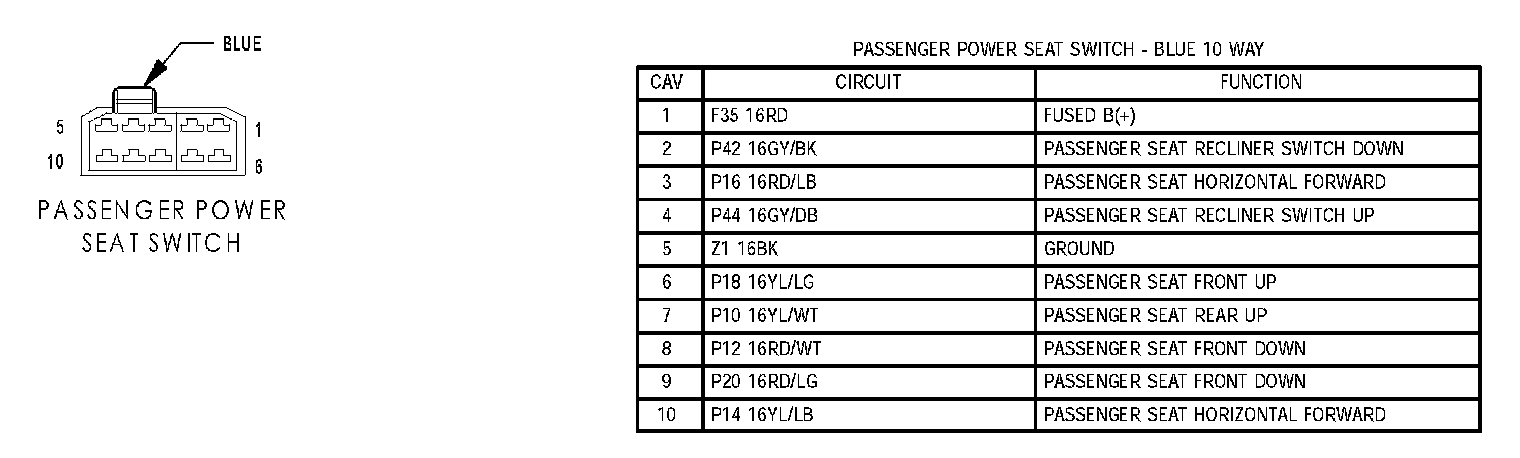

Passenger Power Seat Switch:
