Instrument Panel, Gauges and Warning Indicators: Diagrams

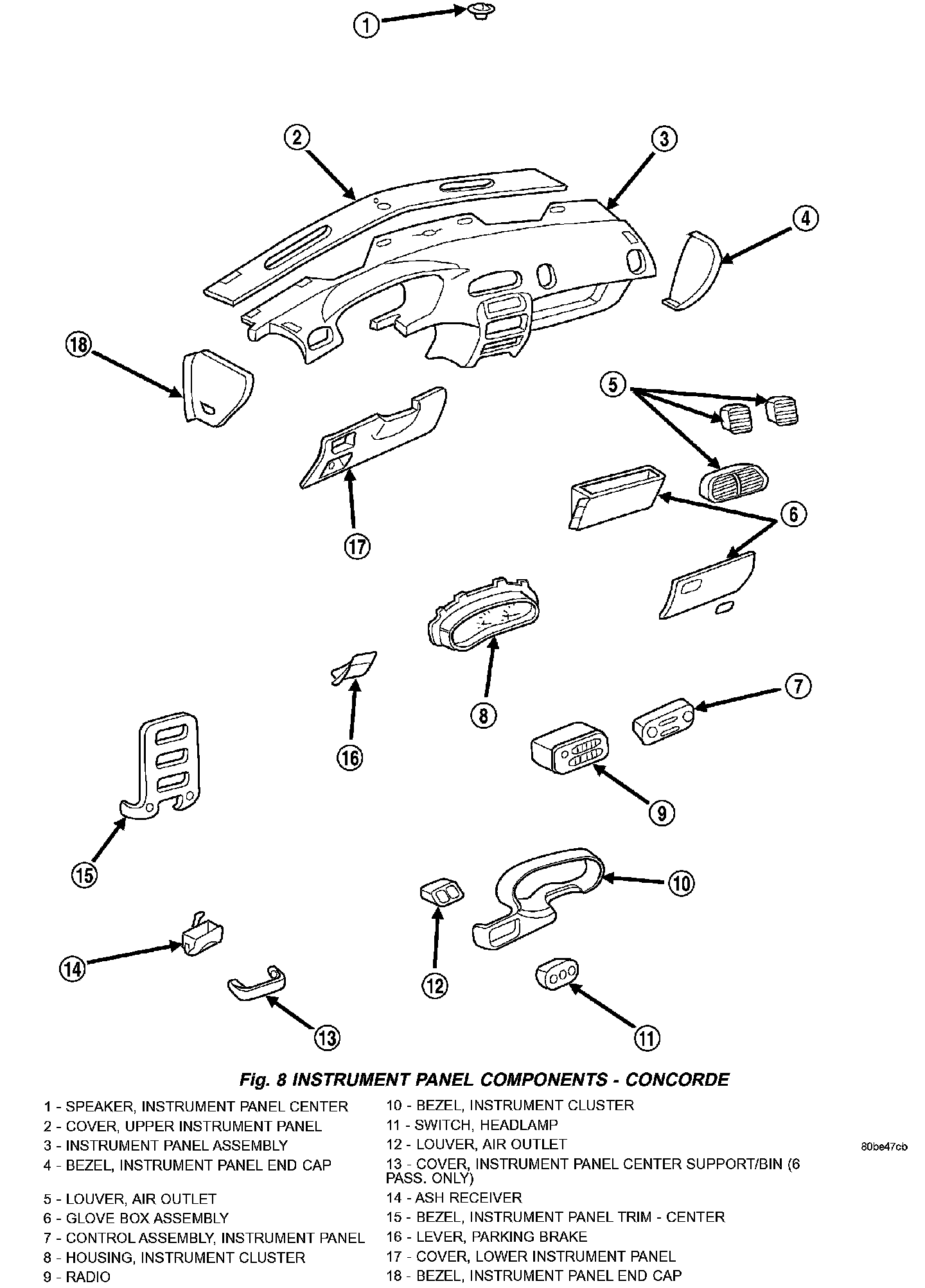

Fig.8 Instrument Panel Components - Concorde:
