System Diagram

C107 - Lt. Gray (Headlamp/Dash Side)

C107 - Lt. Gray (Transmission Harness Side)

C108 - Lt. Gray (Headlamp/Dash Side)

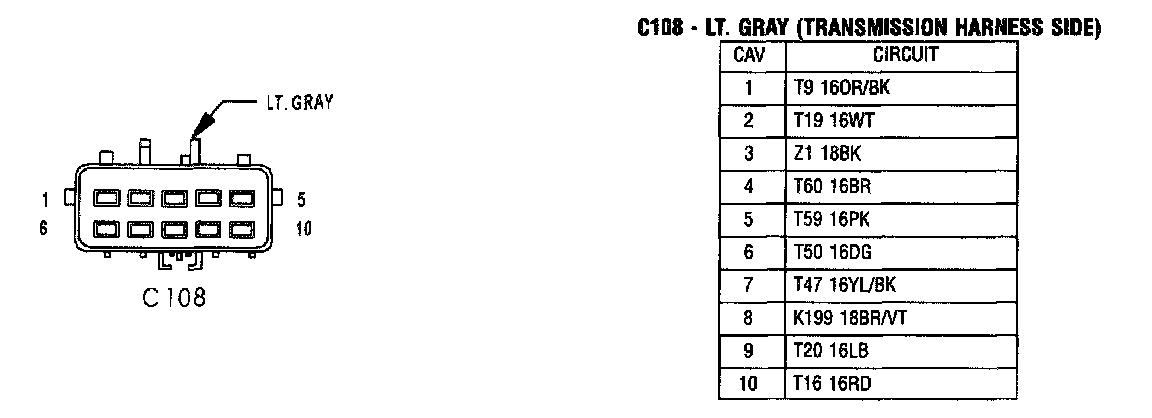

C108 - Lt. Gray (Transmission Harness Side)
