Home >> Chrysler >> 2002 >> Intrepid (CANADA) V6-2.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Heating and Air Conditioning >> Control Assembly, HVAC >> Automatic Temperature Control Head

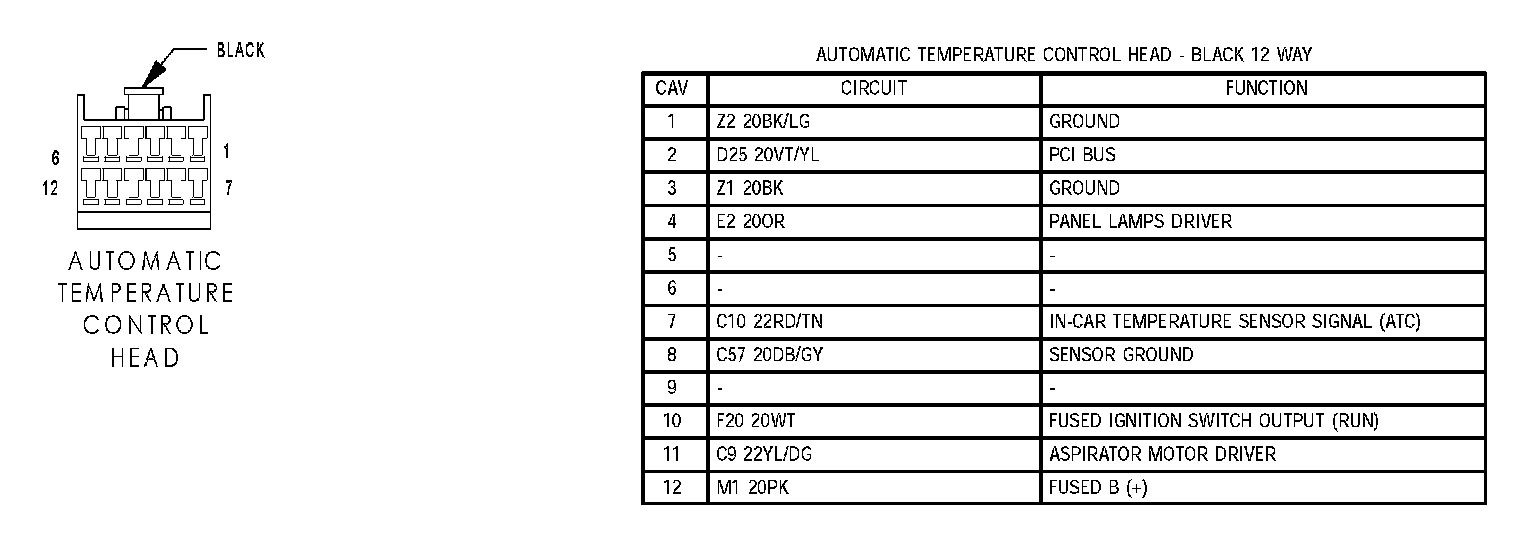

Automatic Temperature Control Head

Automatic Temperature Control Head:
