Ignition Coil
Ignition Coil
Coil On Plug No.1:
Coil On Plug No.2:

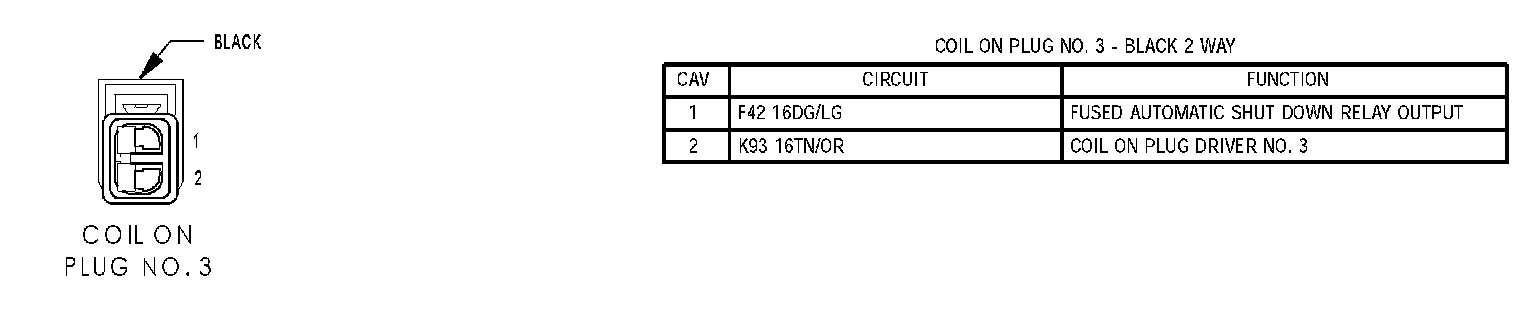

Coil On Plug No.3:

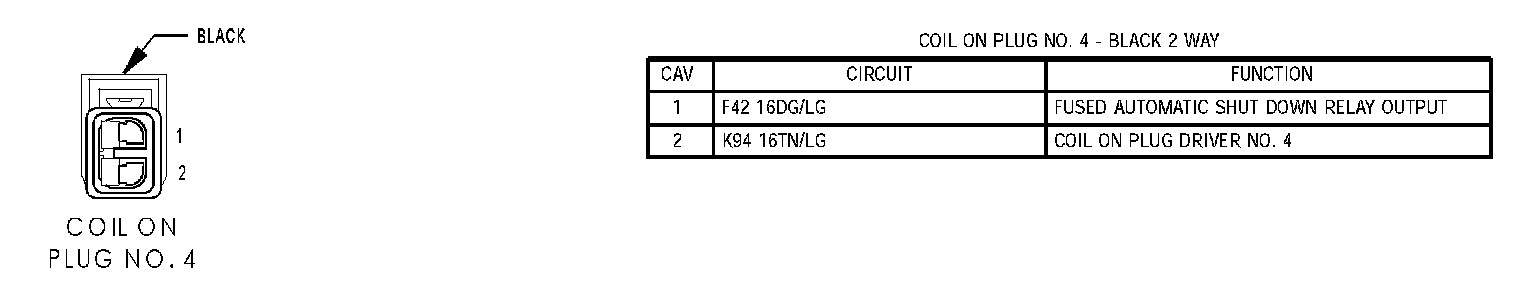

Coil On Plug No.4:
Coil On Plug No.5:

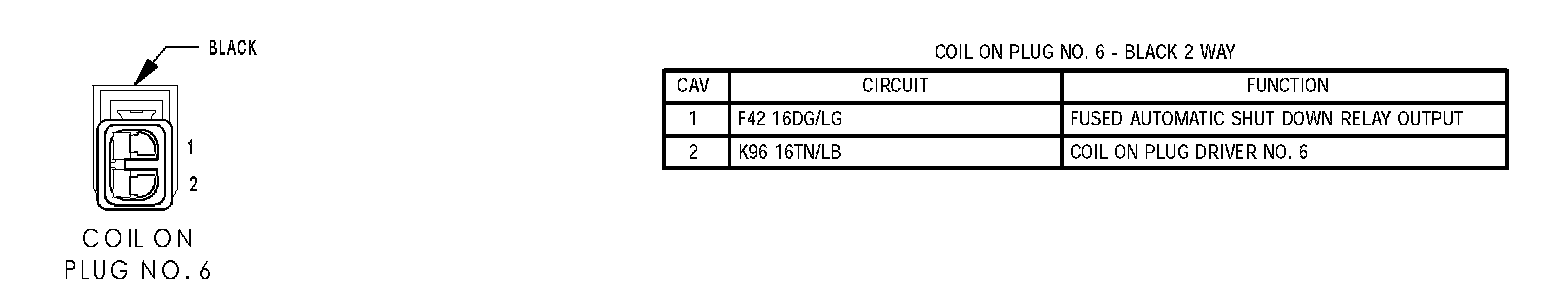

Coil On Plug No.6:
