Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chrysler
>>
2002
>>
Intrepid (CANADA) V6-2.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Lighting and Horns
>>
Fog/Driving Lamp
>>
Fog/Driving Lamp Relay
>>
Fog Lamp Relay
Fog Lamp Relay

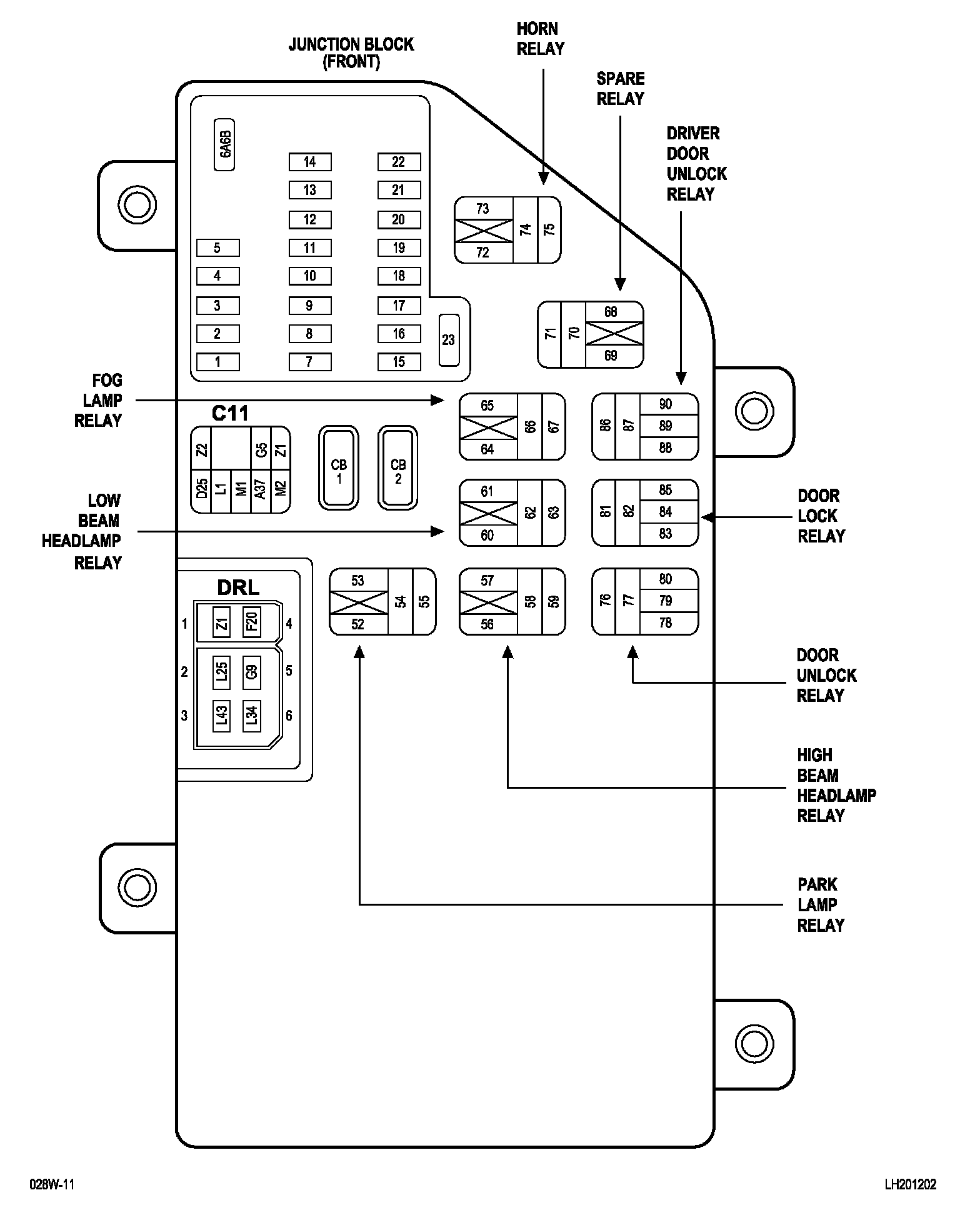

Junction Block (Front):

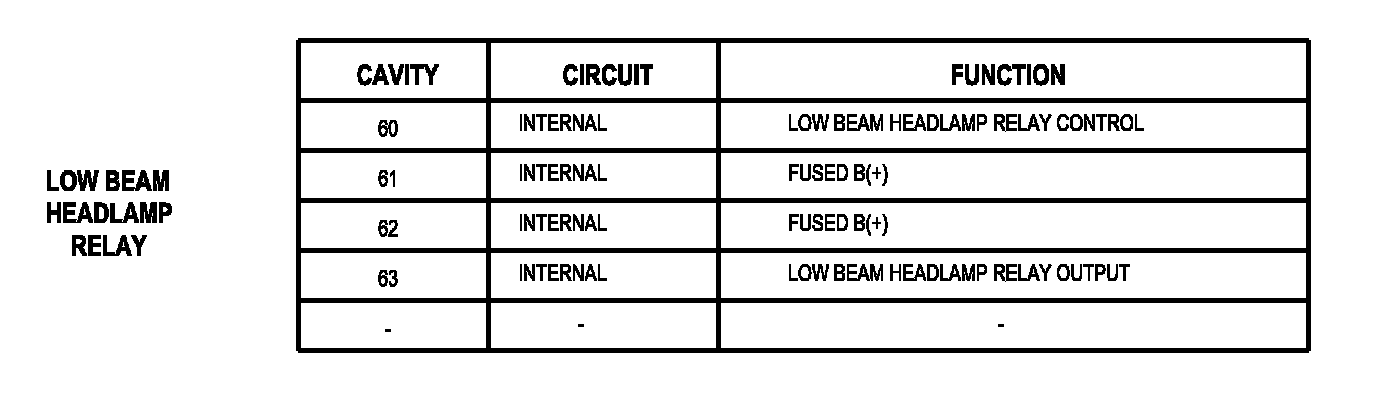

Low Beam Headlamp Relay:
