Home >> Chrysler >> 2002 >> Intrepid (CANADA) V6-2.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Lighting and Horns >> Parking Lamp >> Parking Lamp Relay

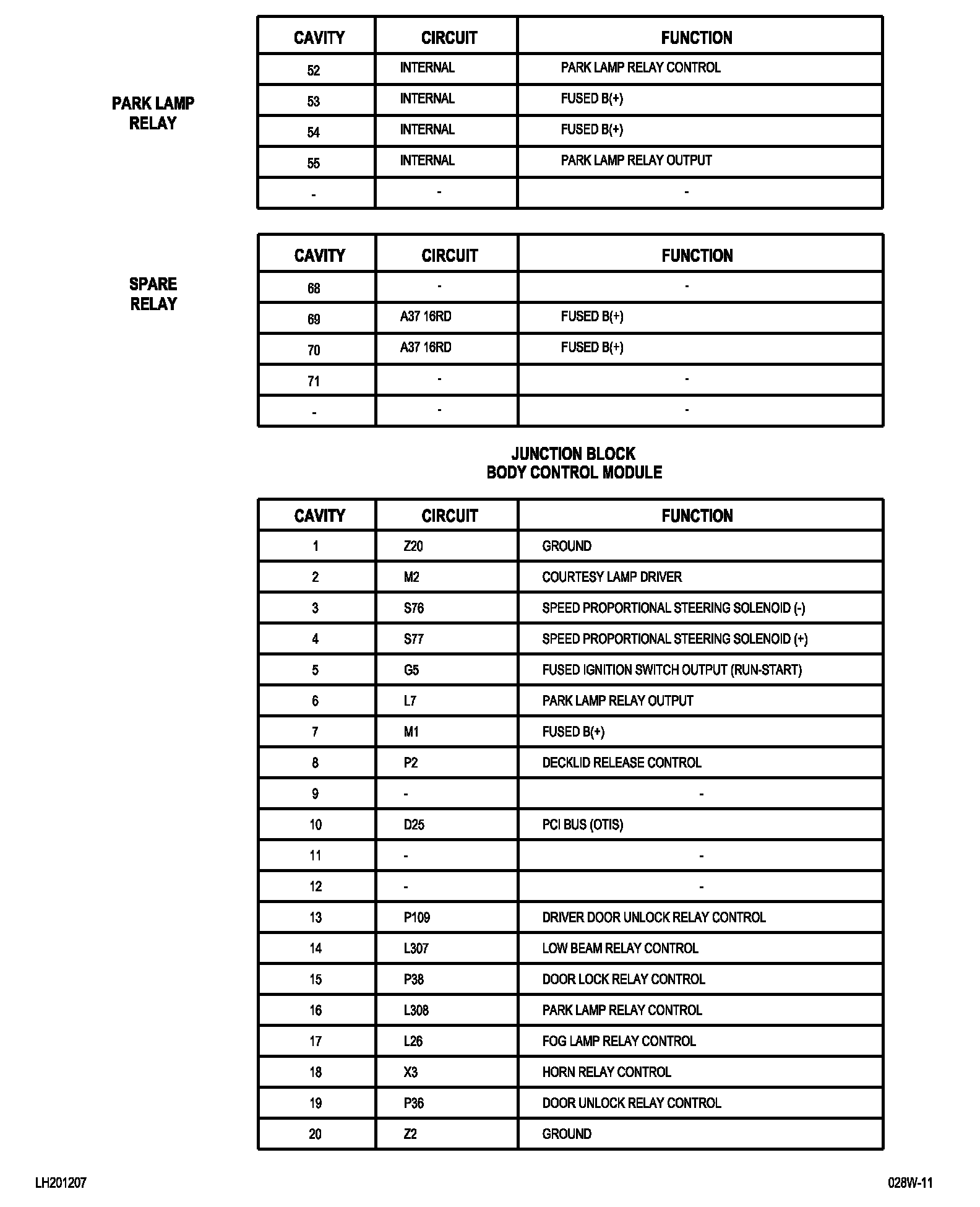

Parking Lamp Relay

8w-12-2:




8w-12-3:




8w-12-7:
