Intrepid (CANADA) V6-2.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
Power Window Switch

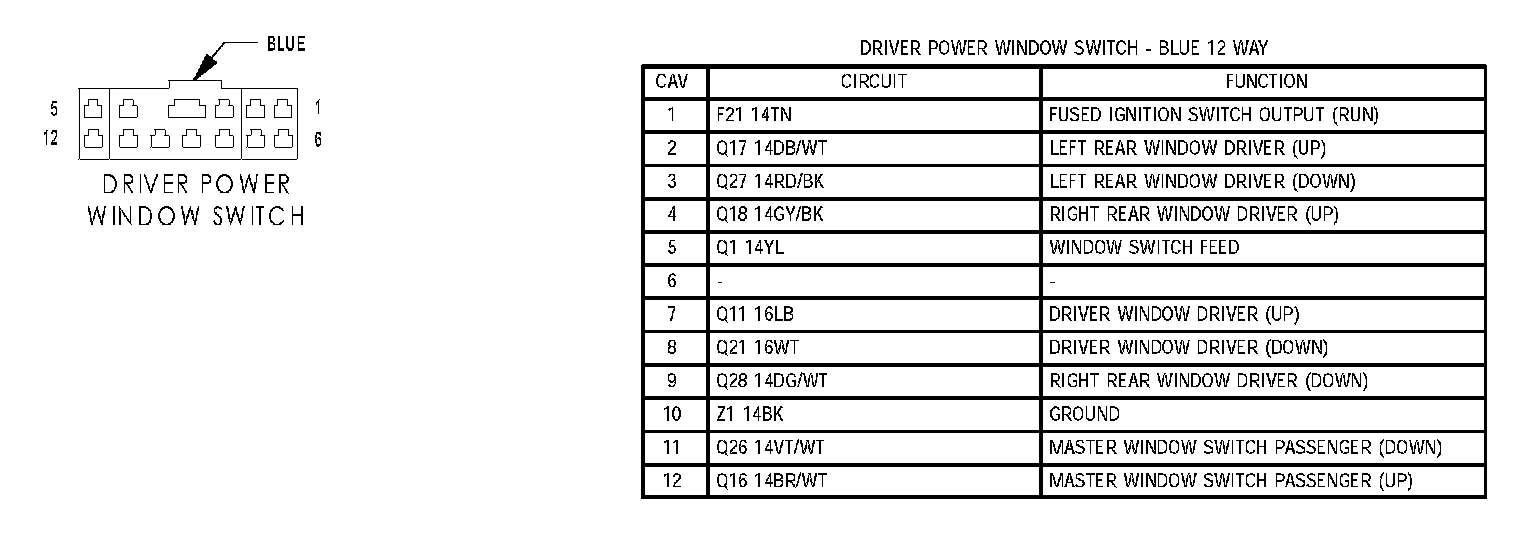

Driver Power Window Switch:

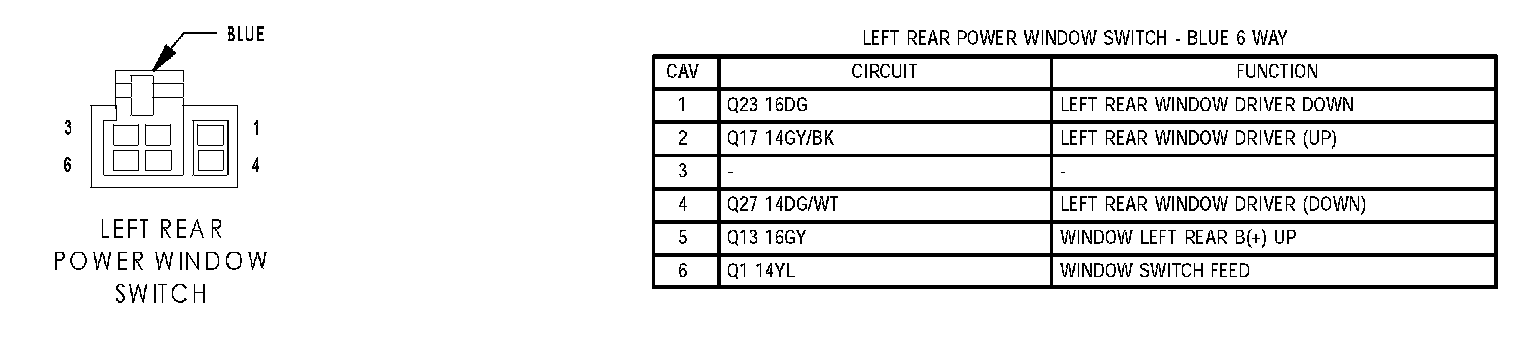

Left Rear Power Window Switch:

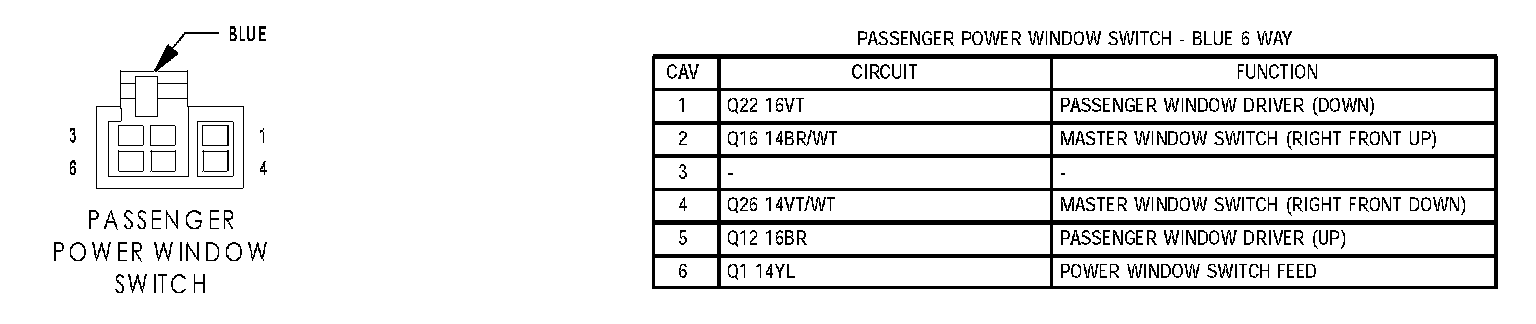

Passenger Power Window Switch:

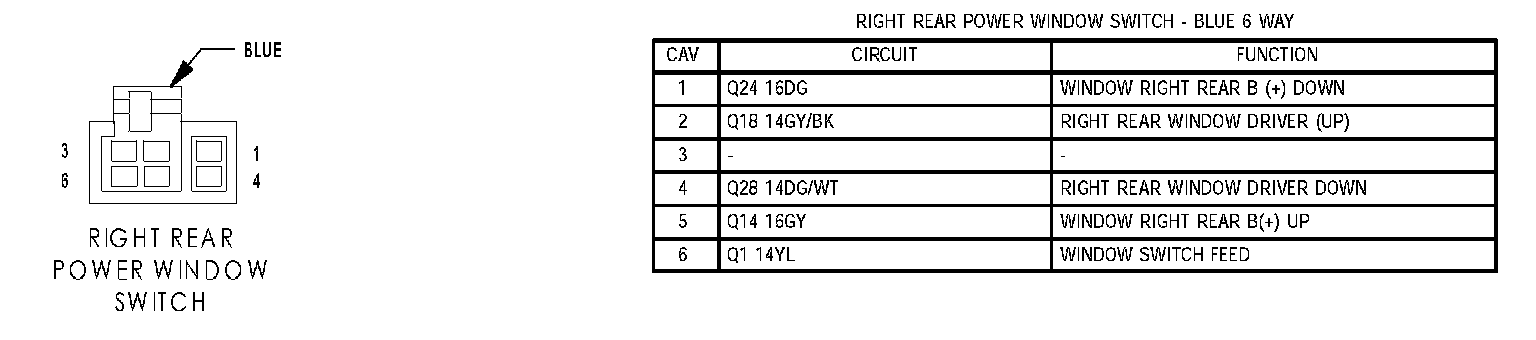

Right Rear Power Window Switch:
