Radiator Cooling Fan Motor
Radiator Cooling Fan Motor
Radiator Fan:

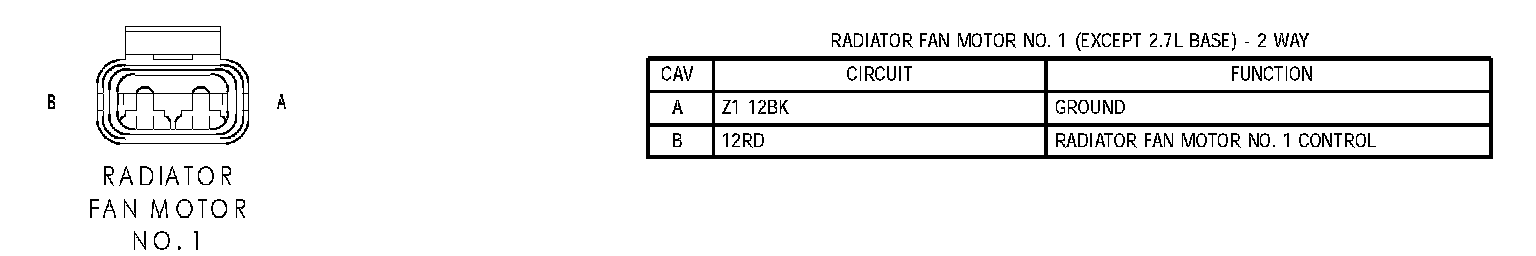

Radiator Fan Motor No.1:

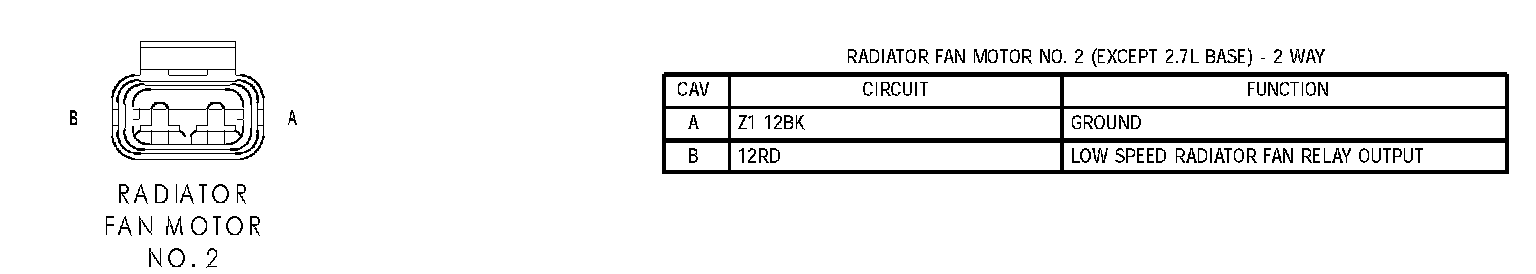

Radiator Fan Motor No.2:
