Power Distribution Center

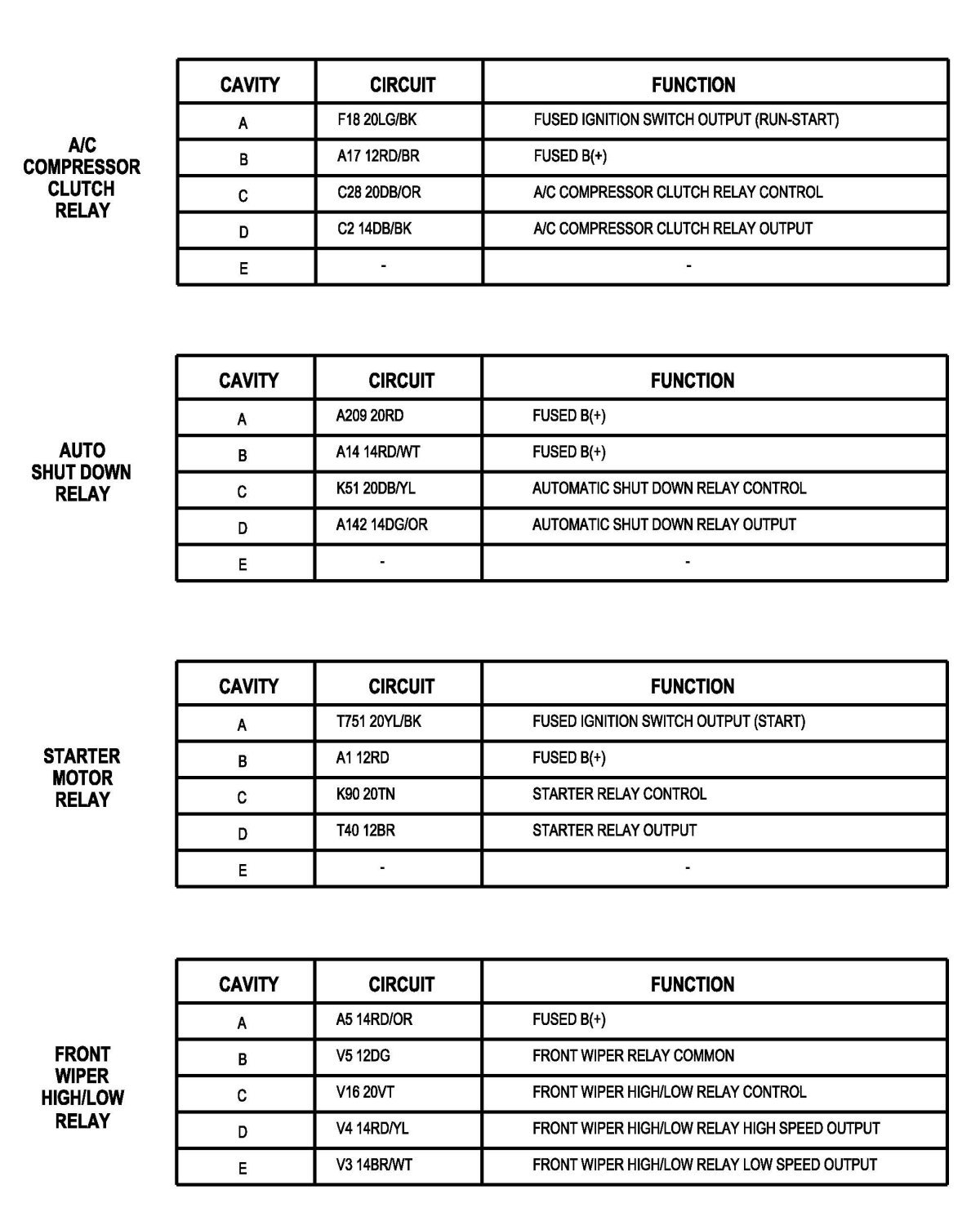

Power Distribution Center (PDC) (1 Of 5):

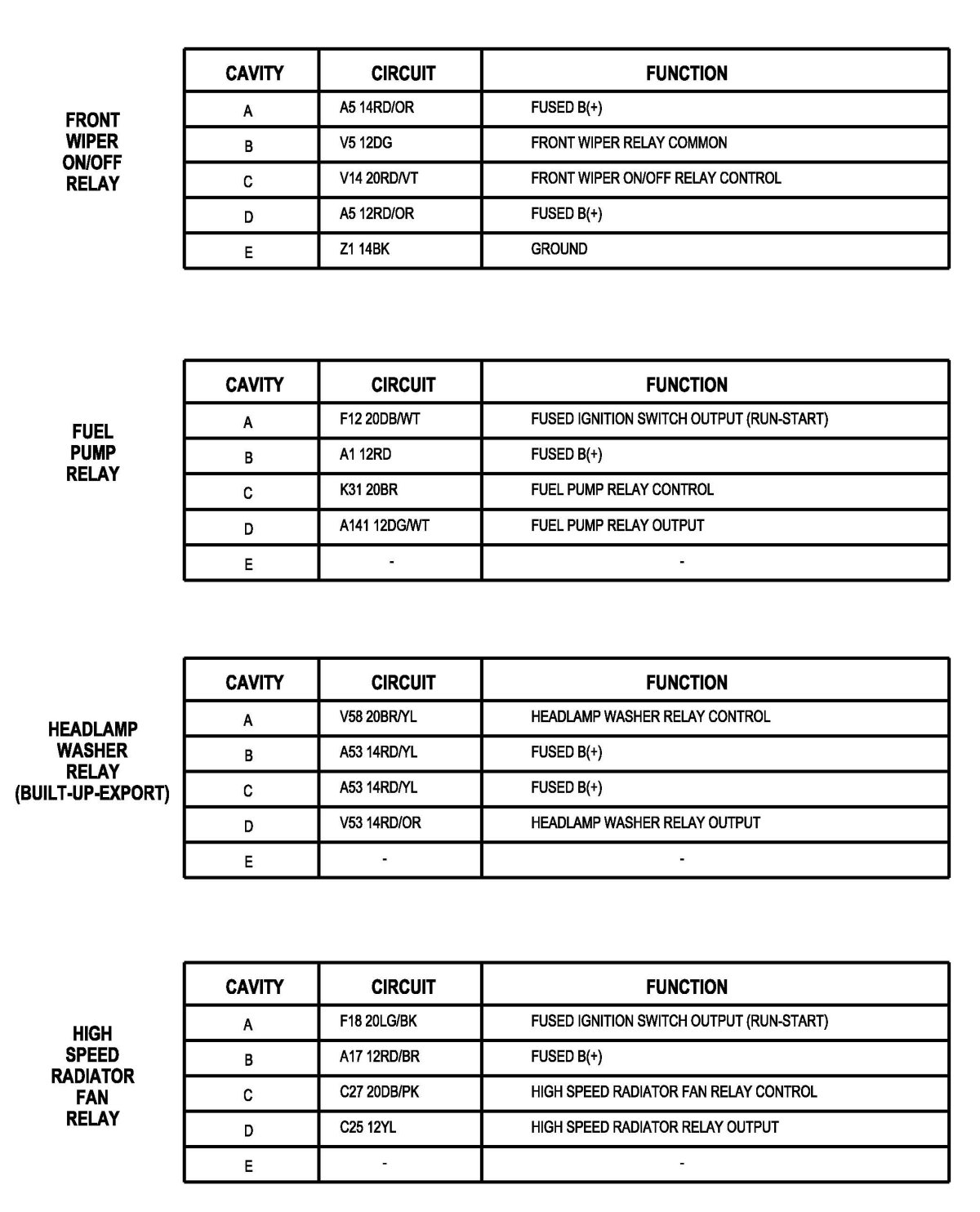

Power Distribution Center (PDC) (2 Of 5):

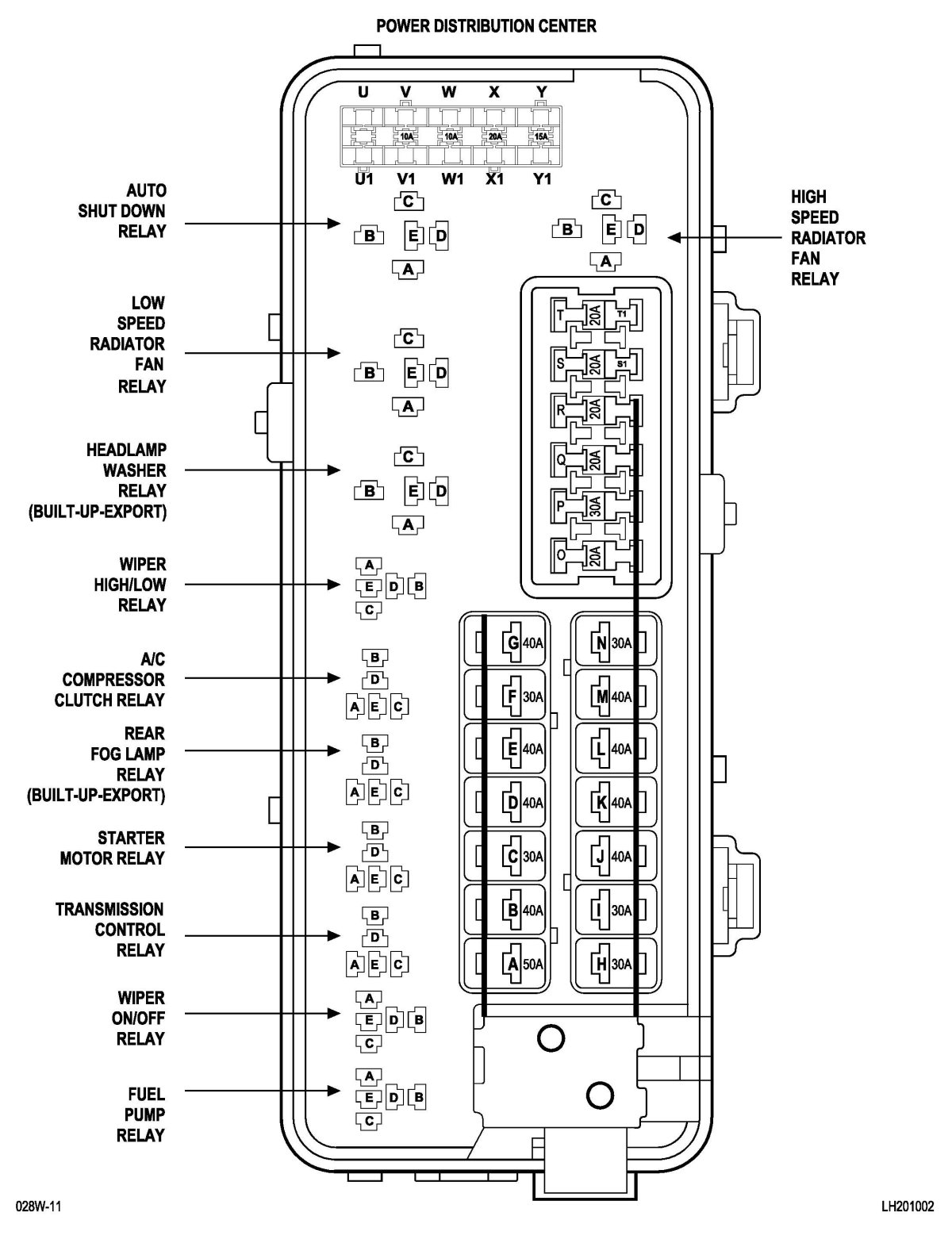

Power Distribution Center (PDC) (3 Of 5):

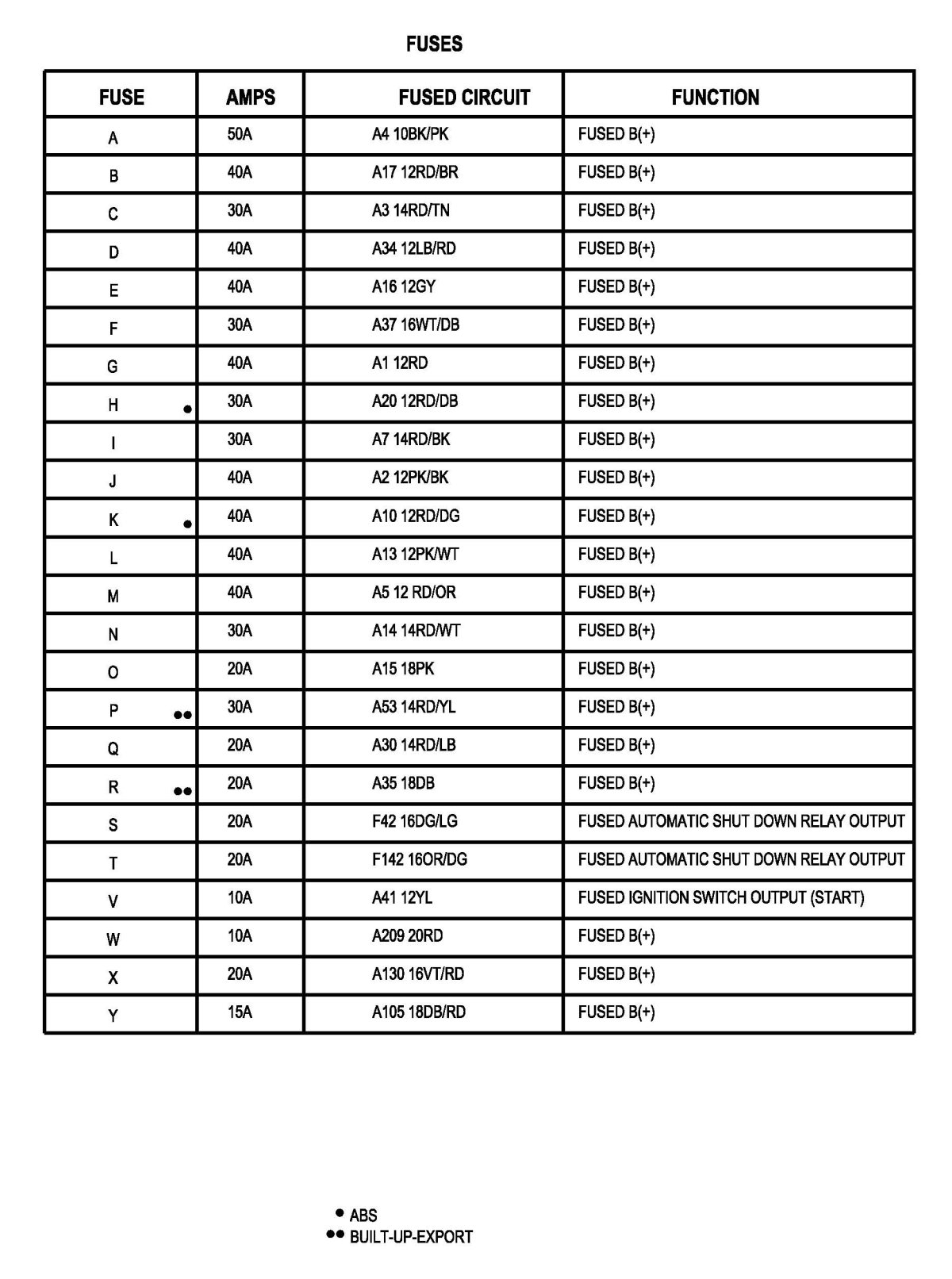

Power Distribution Center (PDC) (4 Of 5):





Power Distribution Center (PDC) (5 Of 5):
