Intrepid (CANADA) V6-2.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seats
>>
Power Seat Control Module
Power Seat Control Module
Memory Heated Seat/Mirror Module C1:

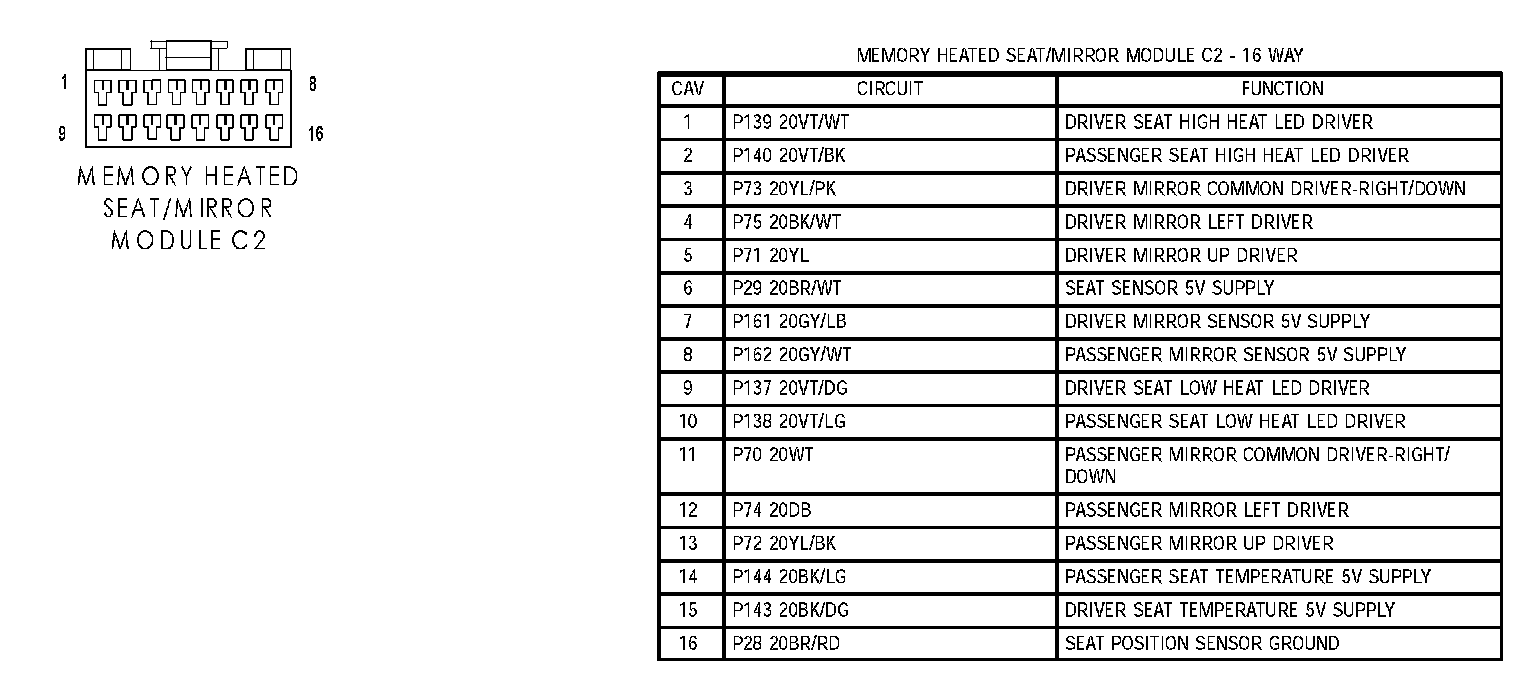

Memory Heated Seat/Mirror Module C2:
Memory Heated Seat/Mirror Module C3:
Memory Heated Seat/Mirror Module C4:
