Home >> Chrysler >> 2002 >> Intrepid (CANADA) V6-2.7L >> Repair and Diagnosis >> Diagrams >> Connectors >> Figure 8

Figure 8

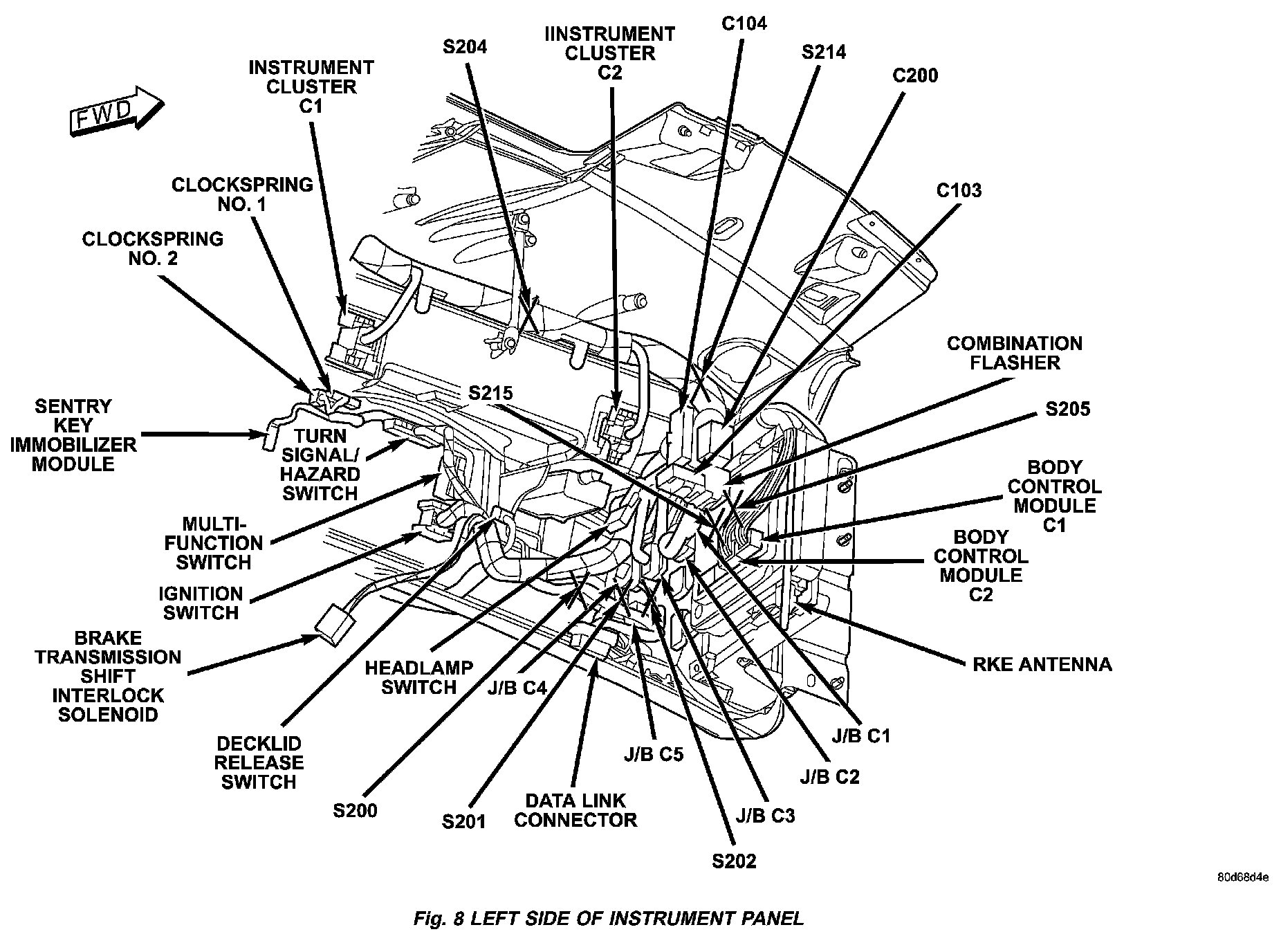

Fig. 8 Left Side Of Instrument Panel:
